Telematic system, component overview

NOTE: The following list refers to items in Fig 1 .

1. Instrument cluster
   • Removing and installing

     See INSTRUMENTS (1997-99) or INSTRUMENT CLUSTER (2000-03).

2. Radio -R- ("Symphony")
   • In center instrument panel
   • Removing and installing. See "SYMPHONY" RADIO, REMOVING AND INSTALLING  .
3. Front interior light module with Telematic Control Head - E264-
   • In front headliner
   • Removing and installing. See TELEMATIC CONTROL HEAD -E264-, REMOVING AND INSTALLING  .
   1. OnStar(R)("On ") button
   2. System status light (LED)
   3. Emergency button
   4. Communication ("DOT") button
   5. Telephone microphone -R38-
4. Auxiliary speaker (telematic) -R91-
   • In lower right B-pillar trim
   • Removing and installing. See AUXILIARY SPEAKER (TELEMATIC) -R91-, REMOVING AND INSTALLING  .
5. Cellular telephone -R54-
   • Optional equipment (only used in conjunction with telematics system)
   • In center console
   • Telephone system preparation, layout. See DIGITAL CELLULAR TELEPHONE (PREPARATION) FROM M.Y. 2002, LAYOUT  .
   • Cellular telephone docking station, removing and installing. See DIGITAL CELLULAR TELEPHONE DOCKING STATION/RETAINER IN CENTER ARMREST, REMOVING AND INSTALLING  .
6. Antenna for navigation system -R50- /telematic antenna
   • On roof
   • Removing and installing. See ROOF ANTENNA FOR NAVIGATION/TELEMATICS (GPS) FROM M.Y. 2002, REMOVING AND INSTALLING  .
7. Telephone/Telematic Control Module - J526-
   • In luggage compartment under rear parcel shelf
   • Removing and installing. See TELEPHONE/TELEMATIC CONTROL MODULE -J526-, REMOVING AND INSTALLING  .
8. Antenna Splitter -R87-
   • On Telephone/Telematic Control Module - J526-
   • Removing and installing. See ANTENNA SPLITTER -R87-, REMOVING AND INSTALLING  .
9. Emergency Battery -A16-
   • Behind Telephone/Telematic Control Module - J526-
   • Removing and installing. See EMERGENCY BATTERY, REMOVING AND INSTALLING  .
10. Cellular telephone antenna
    • In rear bumper
    • Removing and installing. See CELLULAR TELEPHONE ANTENNA, REMOVING AND INSTALLING  .
11. Control module for navigation with CD drive - J401-
    • In left rear luggage compartment storage box
    • Removing and installing. See NAVIGATION CONTROL MODULE WITH CD DRIVE -J401-, REMOVING AND INSTALLING  .
12. Loudspeakers (radio system)
    • In front door panels
    • Removing and installing. See LOUDSPEAKERS, REMOVING AND INSTALLING  .
13. Loudspeakers (radio system)
    • In front door panels
    • Removing and installing. See LOUDSPEAKERS, REMOVING AND INSTALLING  .
14. Multi-function steering wheel
15. Control module for multifunction steering wheel - J453
    • On relay carrier below drivers side storage compartment
    • Removing and installing. See CONTROL MODULE FOR MULTI-FUNCTION STEERING WHEEL -J453-, REMOVING AND INSTALLING  .

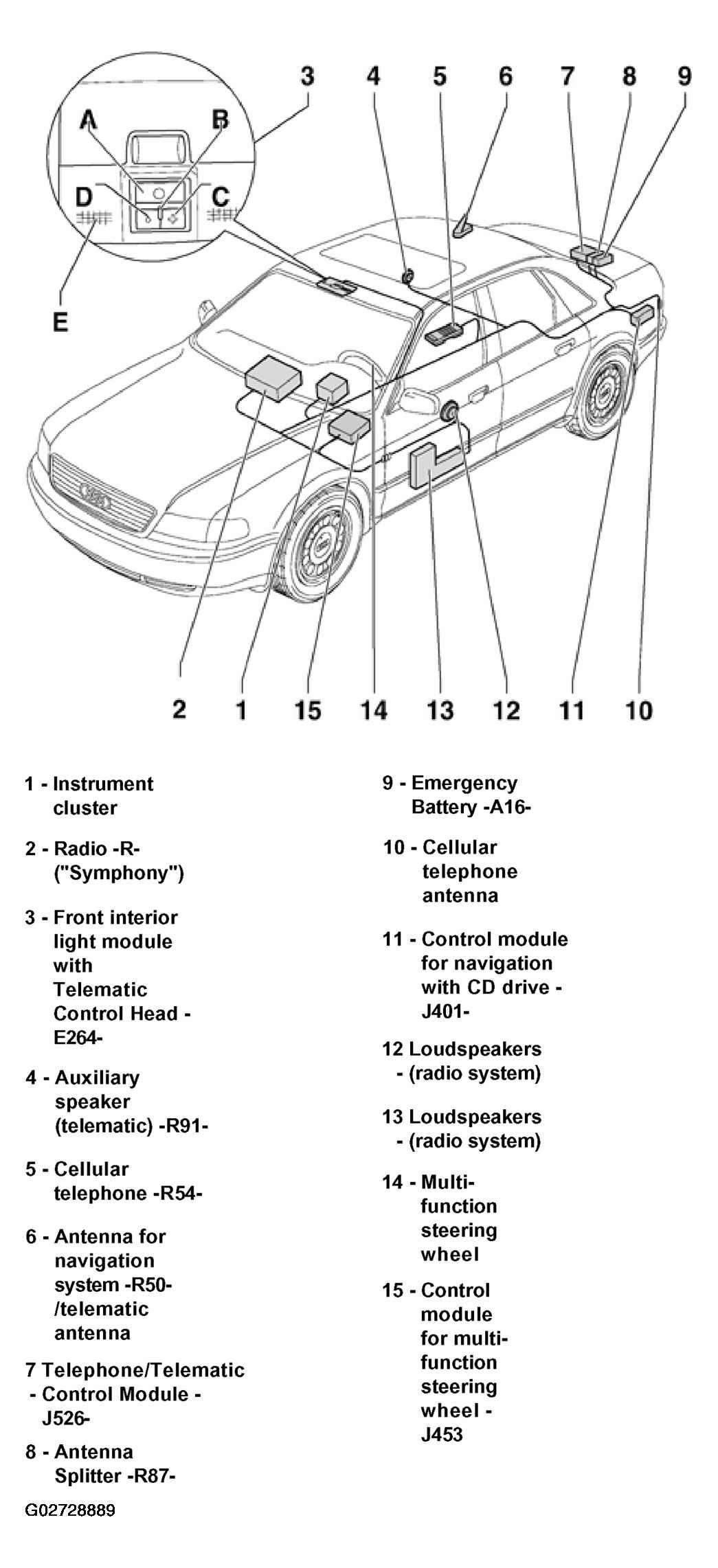

Fig 1: View Of Telematic System Components

Courtesy of AUDI OF AMERICA, INC.
