Navigation system III, layout
NOTE:

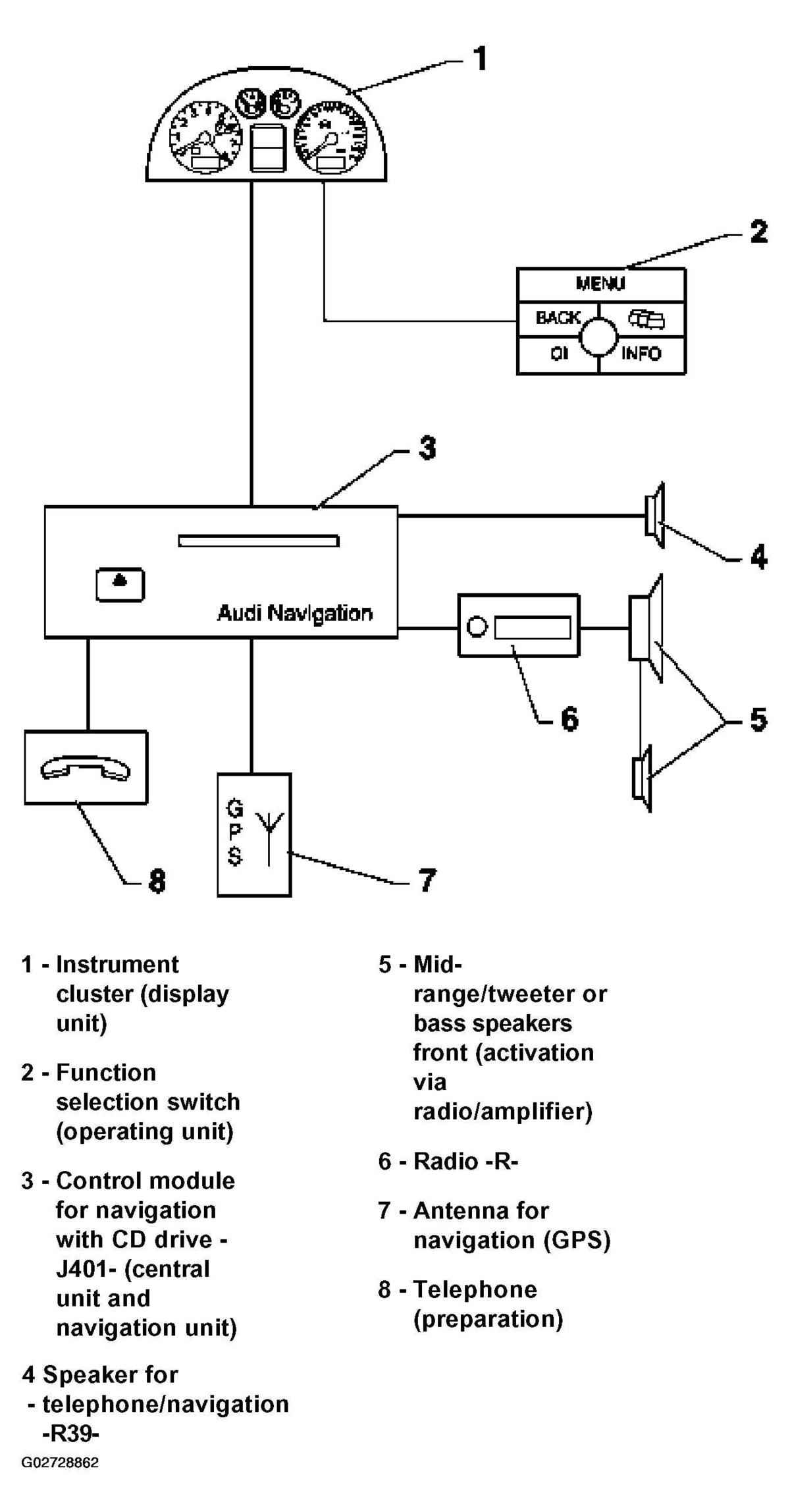

The following list refers to items in Fig 1
.
- Instrument cluster (display unit)
- Function selection switch (operating unit)
- Control module for navigation with CD drive -J401- (central unit and navigation unit)
- Speaker for telephone/navigation -R39-
- Only through m.y. 2001
- From m.y. 2002
- Mid-range/tweeter or bass speakers front (activation via radio/amplifier)
- Radio -R-
- Antenna for navigation (GPS)
- Telephone (preparation)
