Diagnostic Trouble Code (DTC) table

The following table lists all malfunctions that can be recognized by the navigation system and printed out by the VAG1551 scan tool. The malfunctions are listed in order according to their 5-digit numbers.
DTC numbers appear only on the print-out.
Before replacing a component shown as faulty, check the wiring and connections to the component as well as the Ground (GND) connections according to wiring diagram.
After repairs and function test of the system, DTC memory must always be checked again using the VAG1551 scan tool and erased.
DTC memory records all static and sporadic malfunctions: If a malfunction occurs and persists for at least 2 seconds, it is identified as a static malfunction. If a malfunction does not occur again, it is registered as sporadic. "ISP" will appear at right on scan tool display.
When the ignition is switched on, all existing malfunctions are automatically re-classified as sporadic malfunctions and will only register as static malfunctions if they still occur after testing.
Sporadic malfunctions which no longer occur during 40 driving cycles (ignition on at least 5 minutes, vehicle speed 30 km/h) are erased automatically.

NOTE: Texts associated with DTCs appearing in the scan tool display may differ slightly from those given here.

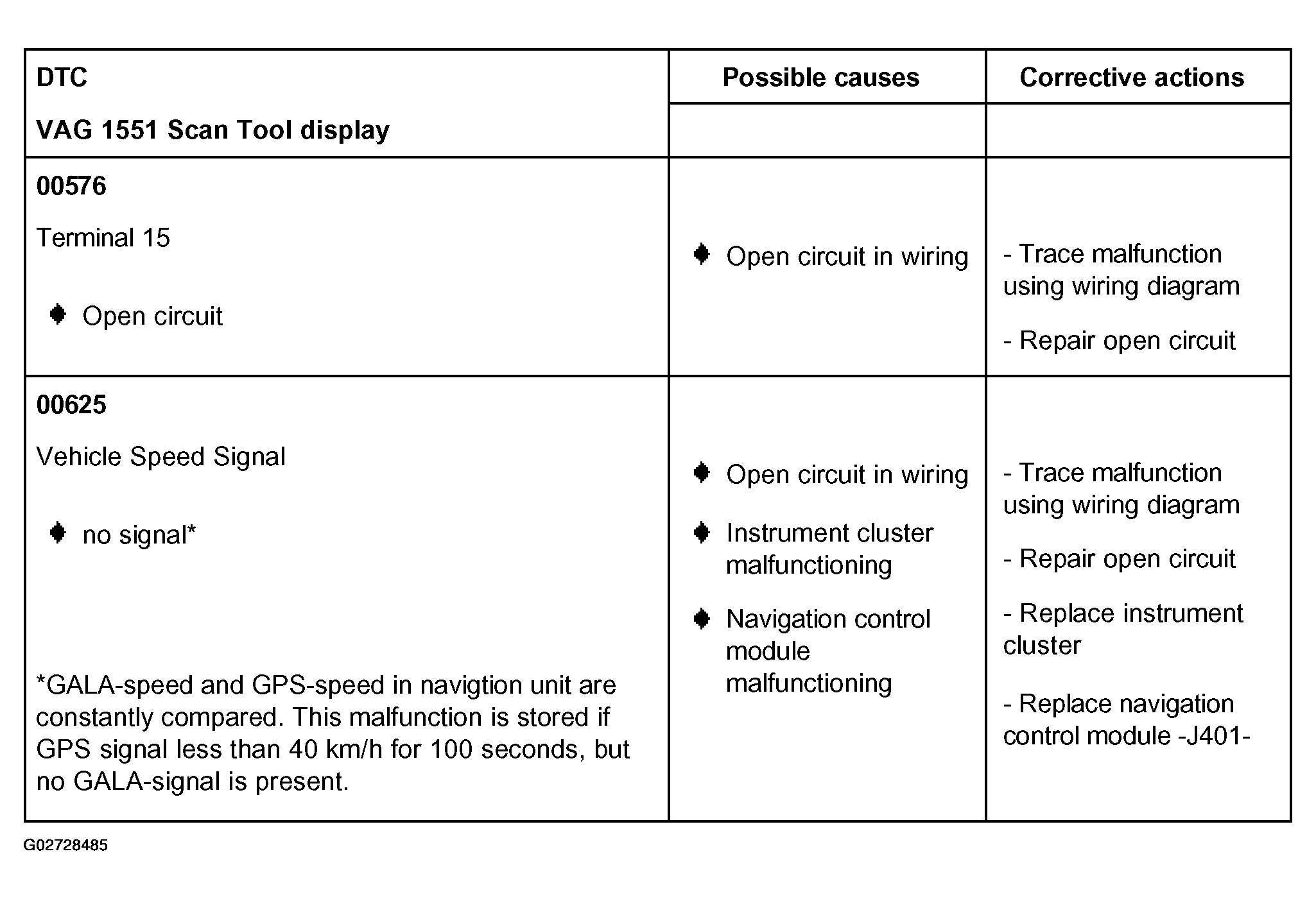

Fig 1: Navigation System III (NS-Low) Through 01.01 - DTC 00576 & 00625 Diagnostic Table

Courtesy of AUDI OF AMERICA, INC.

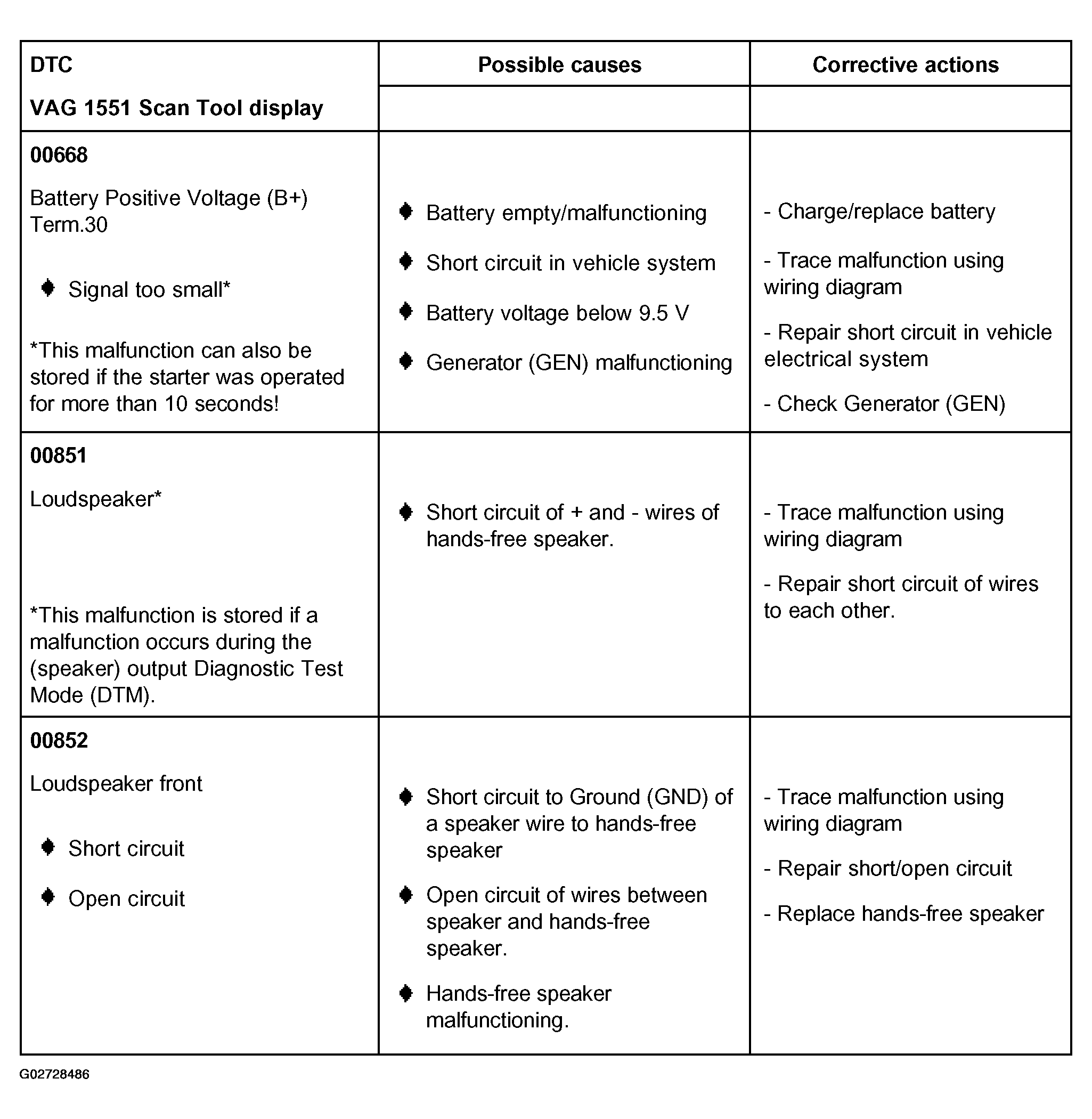

Fig 2: Navigation System III (NS-Low) Through 01.01 - DTC 00668, 00851 & 00852 Diagnostic Table

Courtesy of AUDI OF AMERICA, INC.

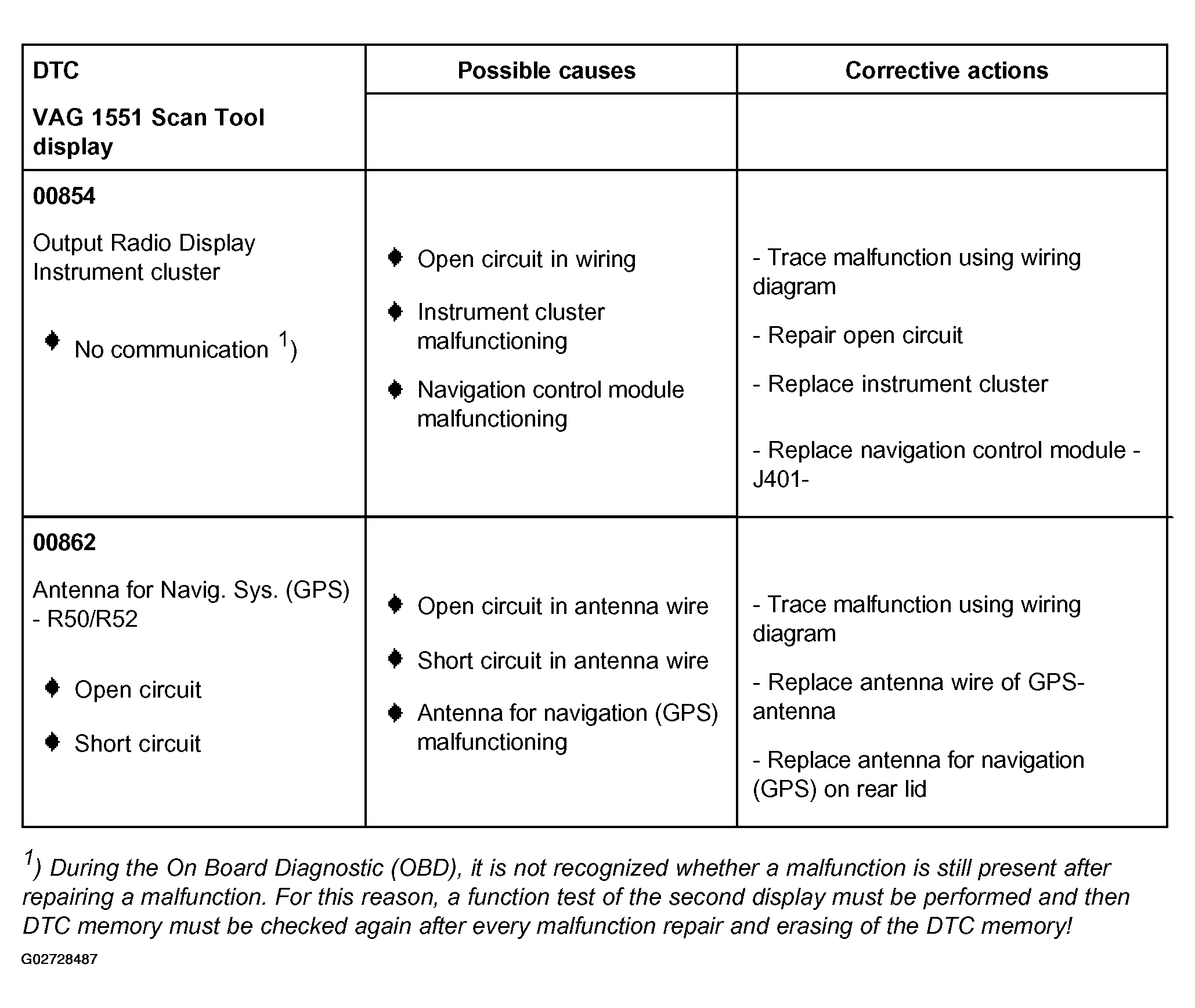

Fig 3: Navigation System III (NS-Low) Through 01.01 - DTC 00854 & 00862 Diagnostic Table

Courtesy of AUDI OF AMERICA, INC.

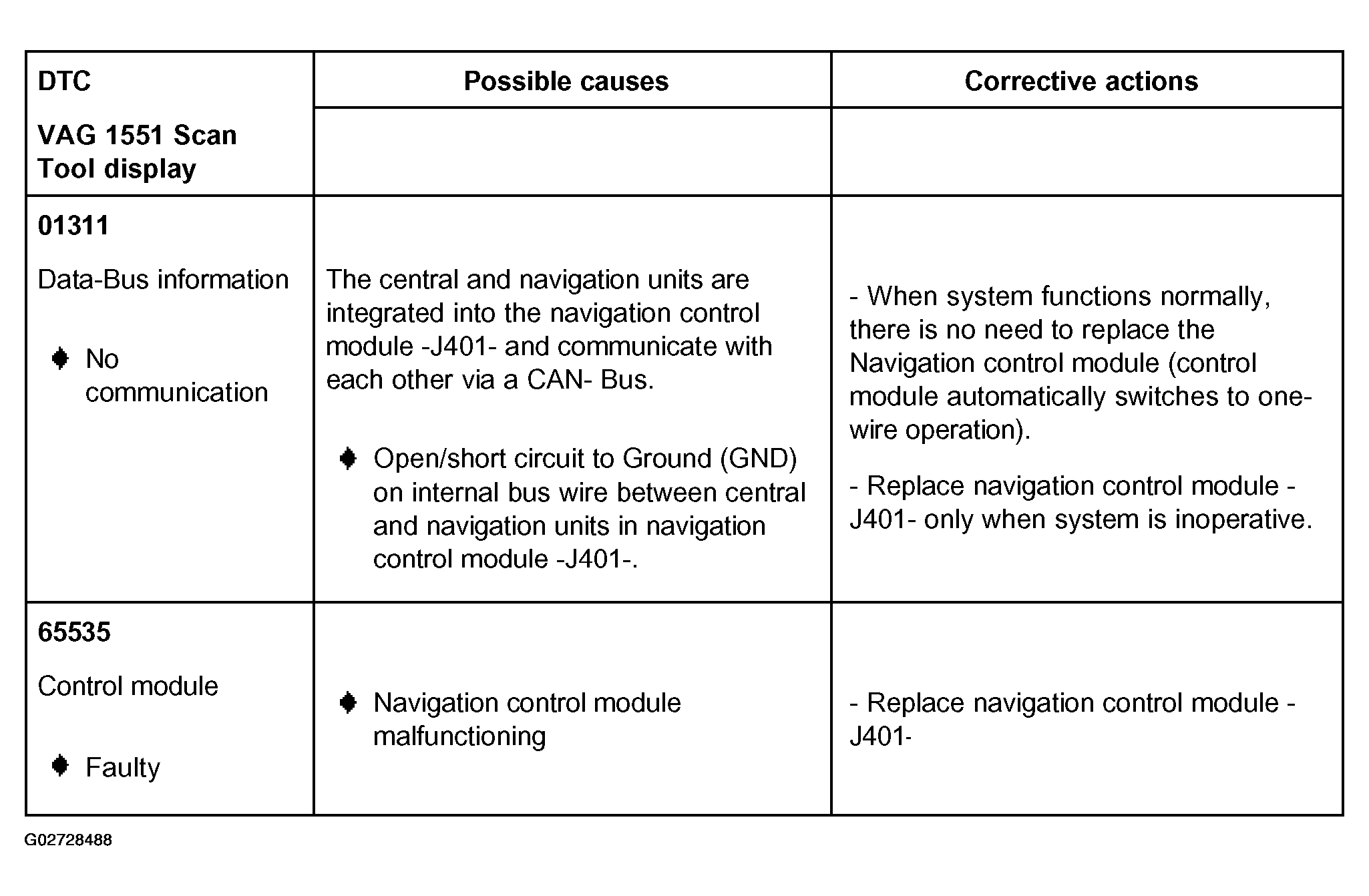

Fig 4: Navigation System III (NS-Low) Through 01.01 - DTC 01311 & 65535 Diagnosis Table

Courtesy of AUDI OF AMERICA, INC.
