Rear Pads: Removal

Raise and support vehicle. Remove rear wheels. Hold guide pin using open-end wrench while removing self-locking mounting bolt. See Fig 1 . Remove caliper and wire aside. DO NOT disconnect or damage hydraulic line. Remove brake pads from carrier.

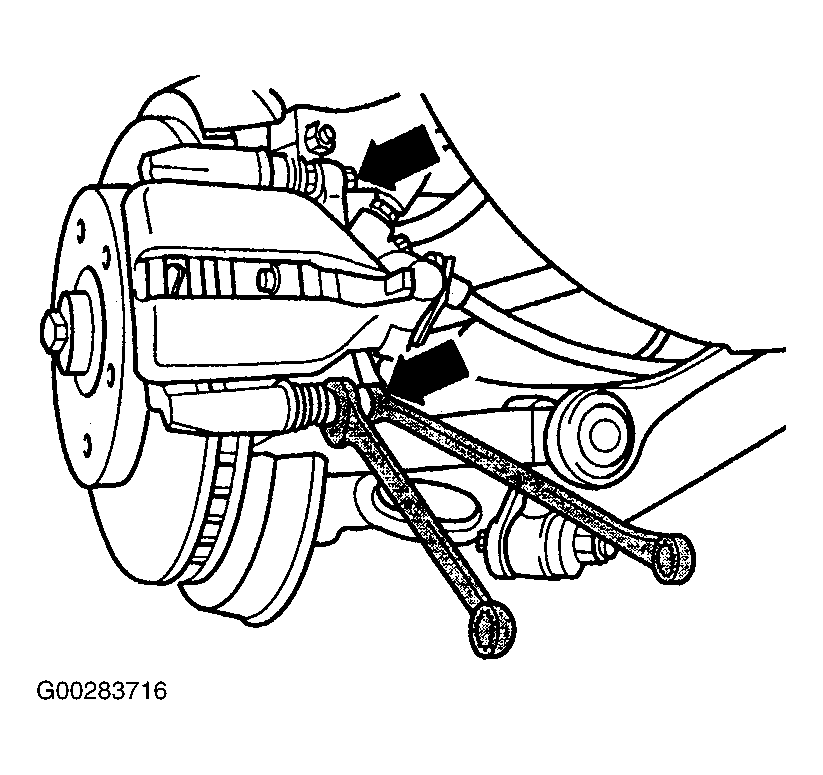

Fig 1: Removing Rear Brake Caliper Housing

Courtesy of AUDI OF AMERICA, INC.
