Parking Brake Lever

Use following illustrations to aid in replacement of parking brake lever. See Fig 1 -Fig 9 .

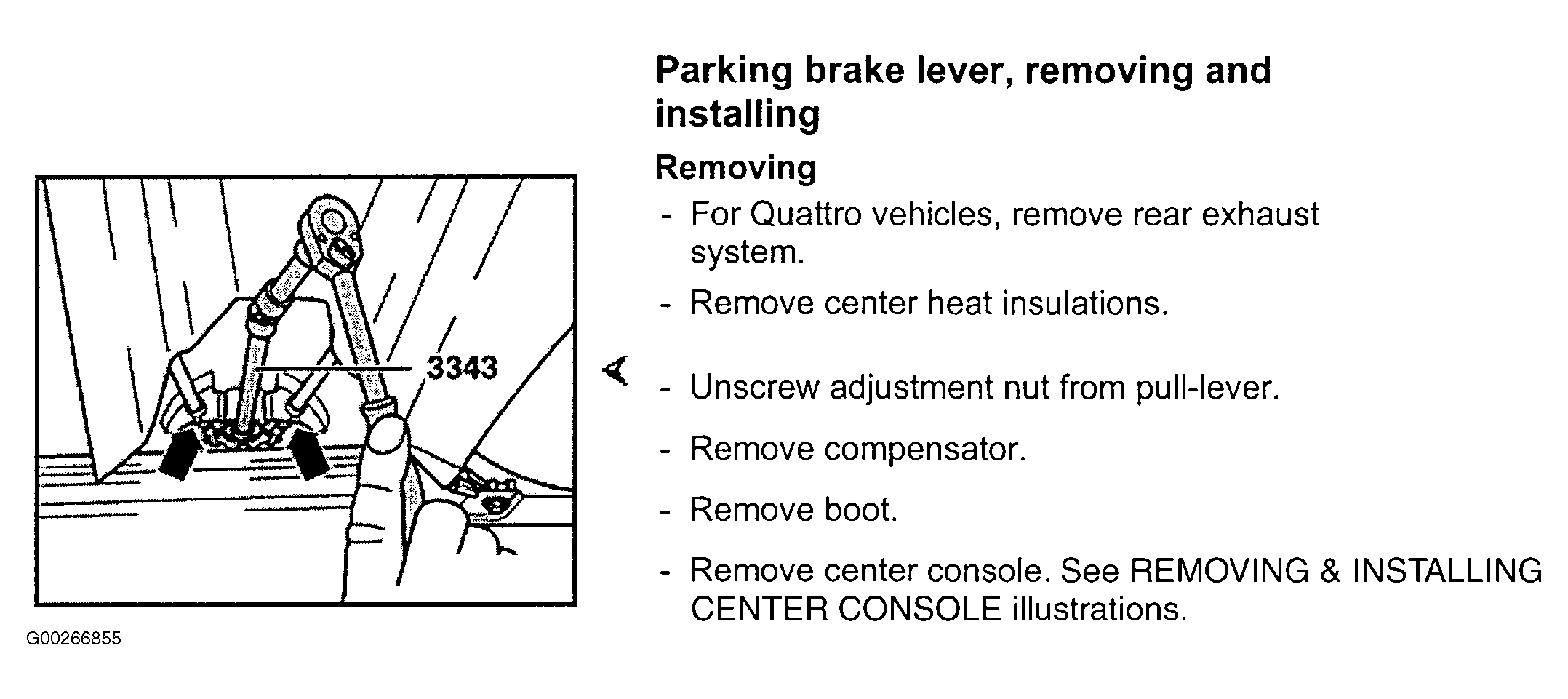

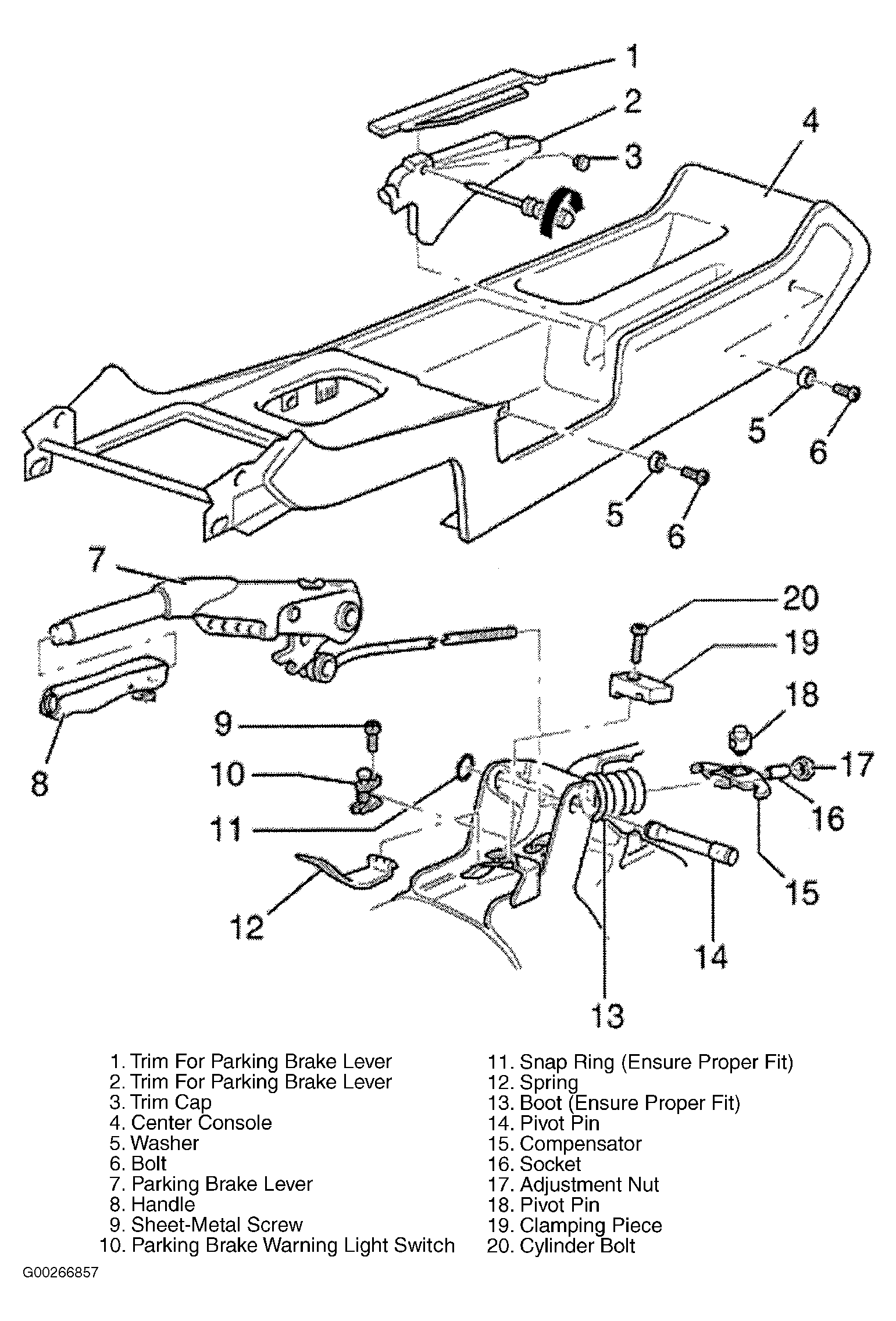

Fig 1: Removing & Installing Parking Brake Lever (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

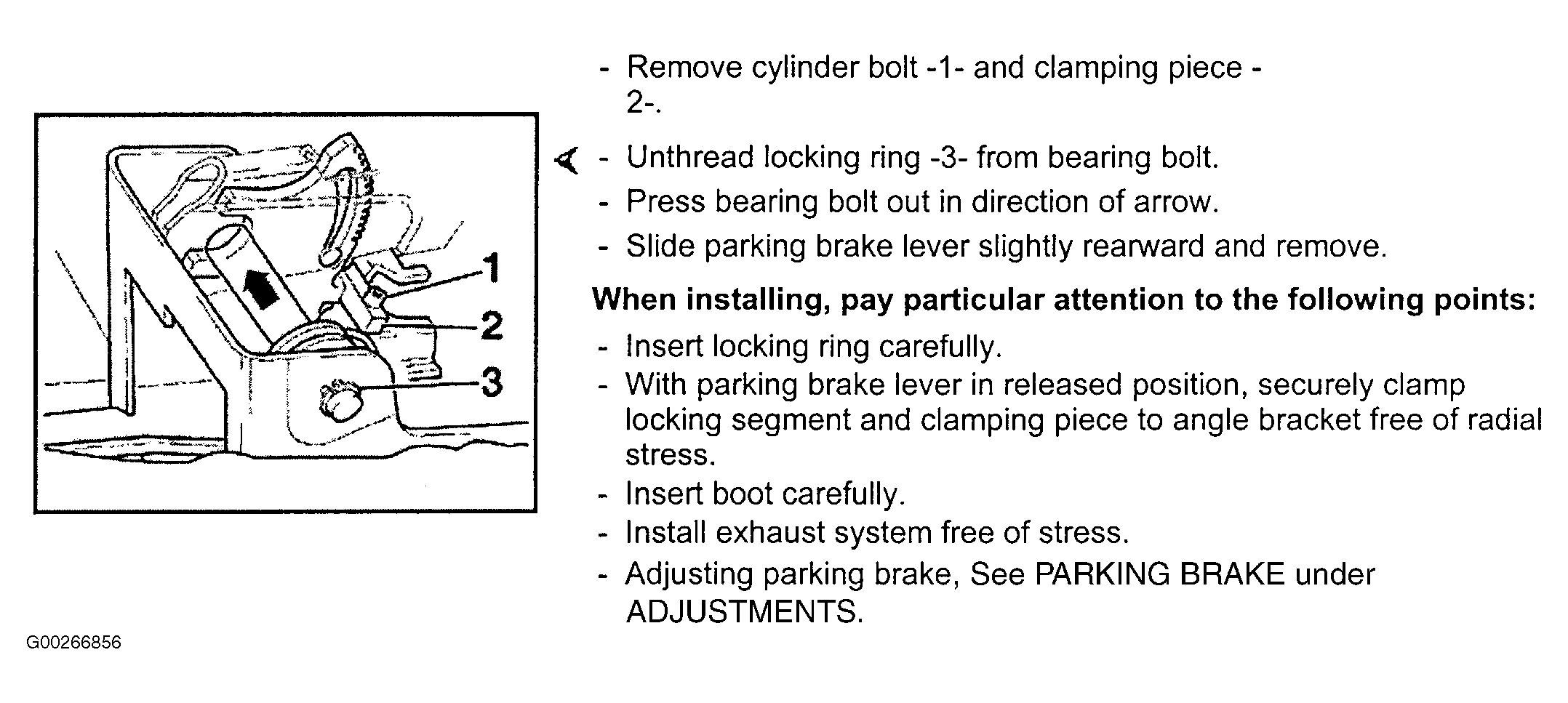

Fig 2: Removing & Installing Parking Brake Lever (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

Fig 3: Exploded View Of Parking Brake Lever Assembly

Courtesy of AUDI OF AMERICA, INC.

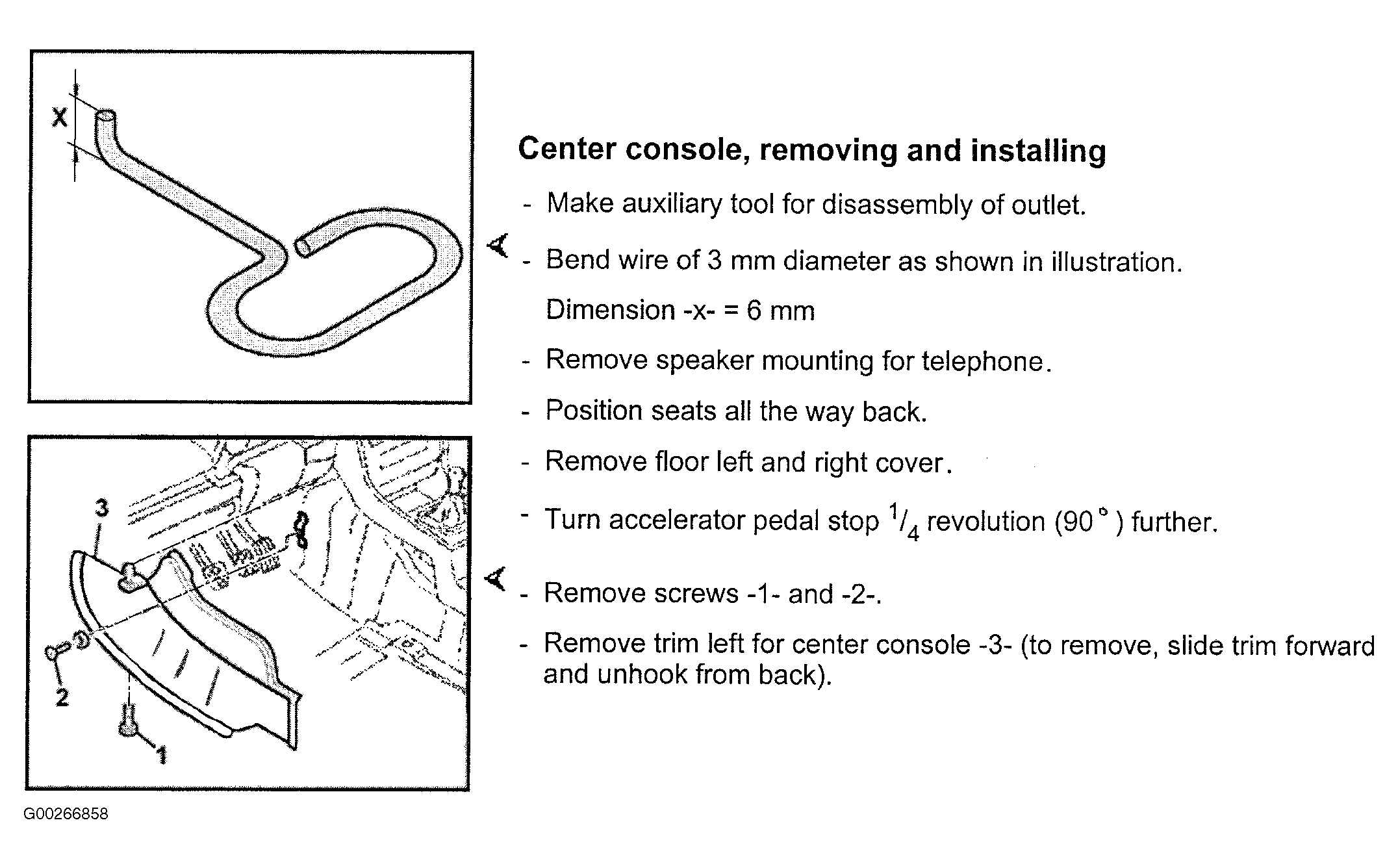

Fig 4: Removing & Installing Center Console (1 Of 5)

Courtesy of AUDI OF AMERICA, INC.

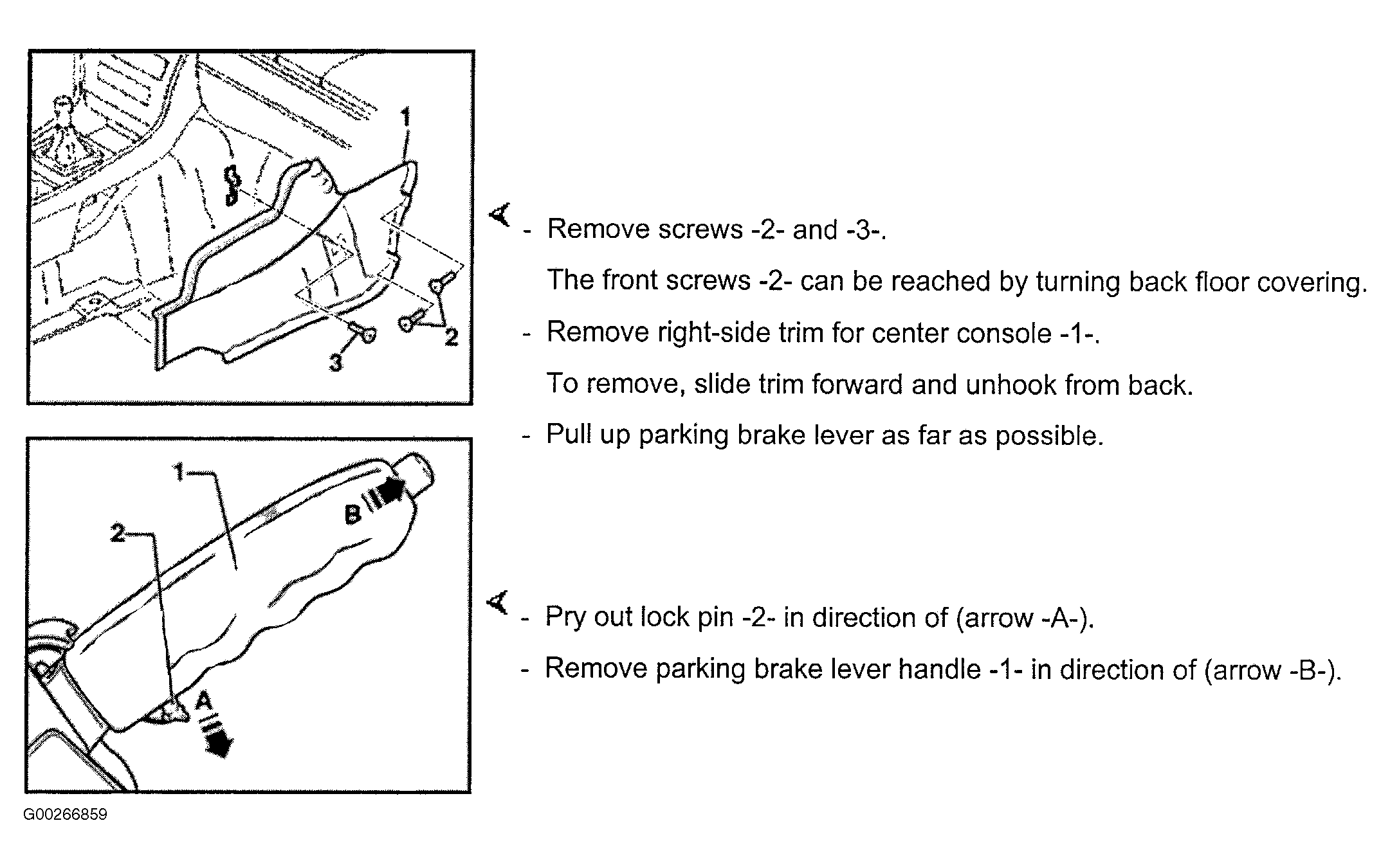

Fig 5: Removing & Installing Center Console (2 Of 5)

Courtesy of AUDI OF AMERICA, INC.

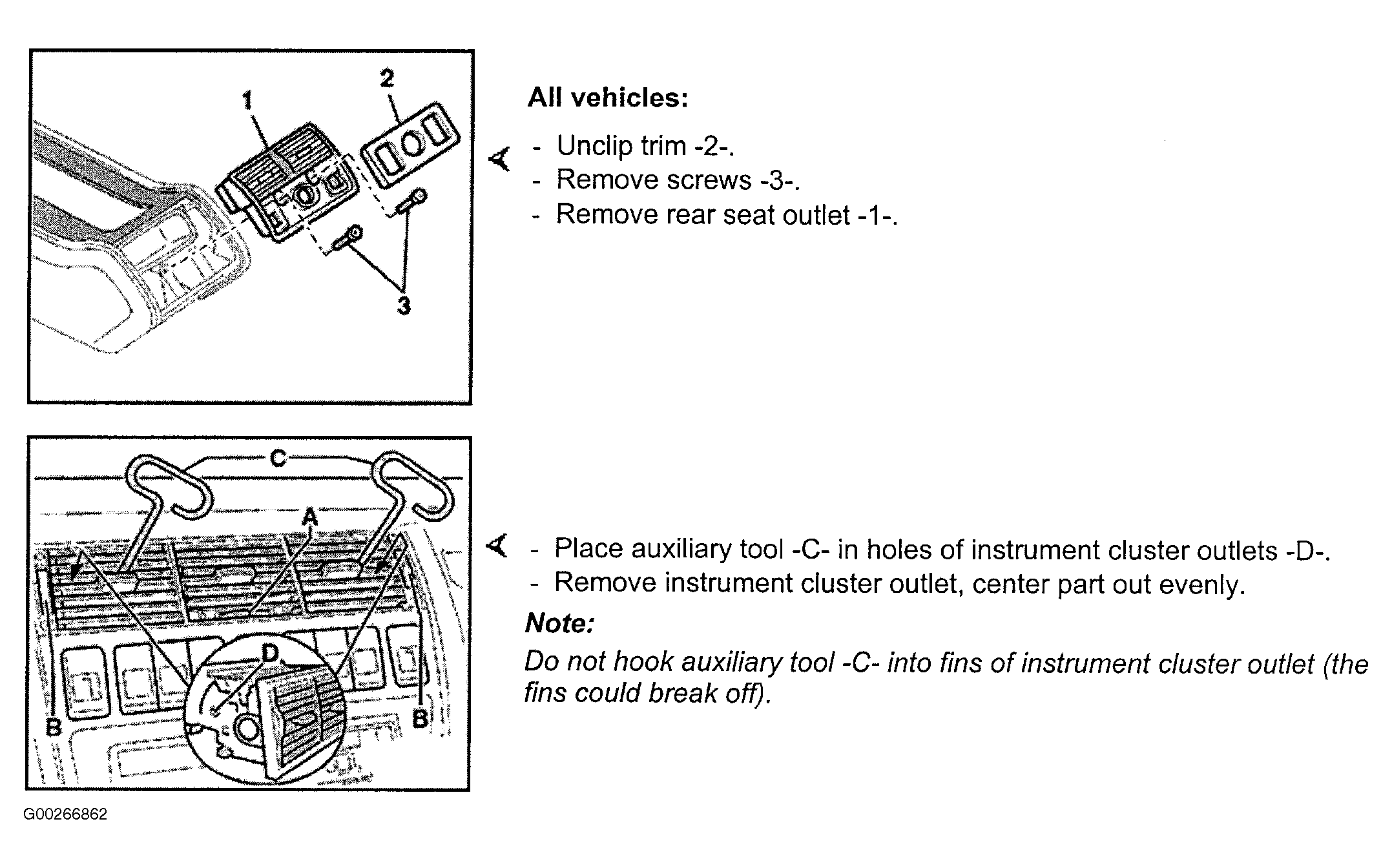

Fig 6: Removing & Installing Center Console (3 Of 5)

Courtesy of AUDI OF AMERICA, INC.

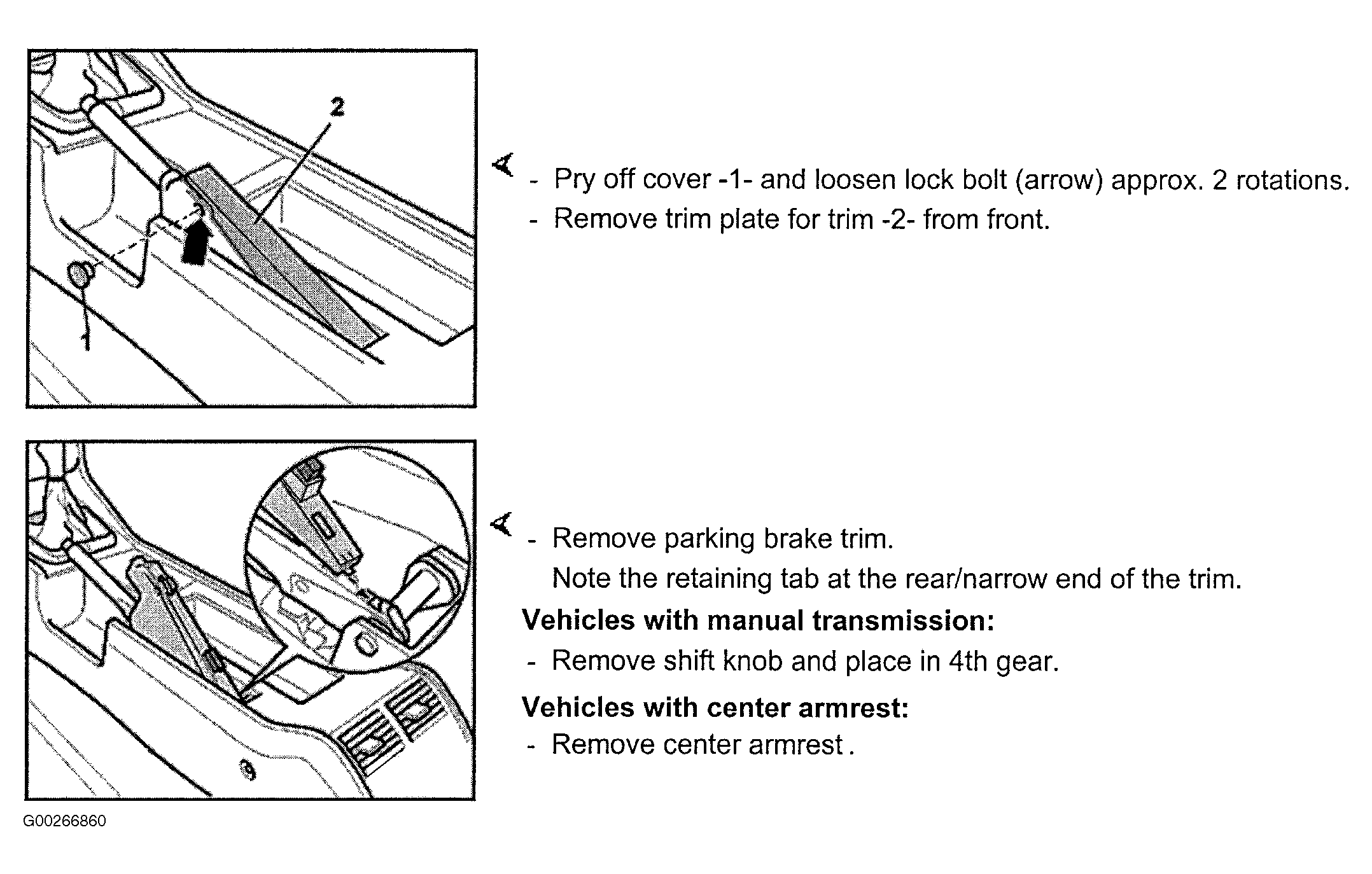

Fig 7: Removing & Installing Center Console (4 Of 5)

Courtesy of AUDI OF AMERICA, INC.

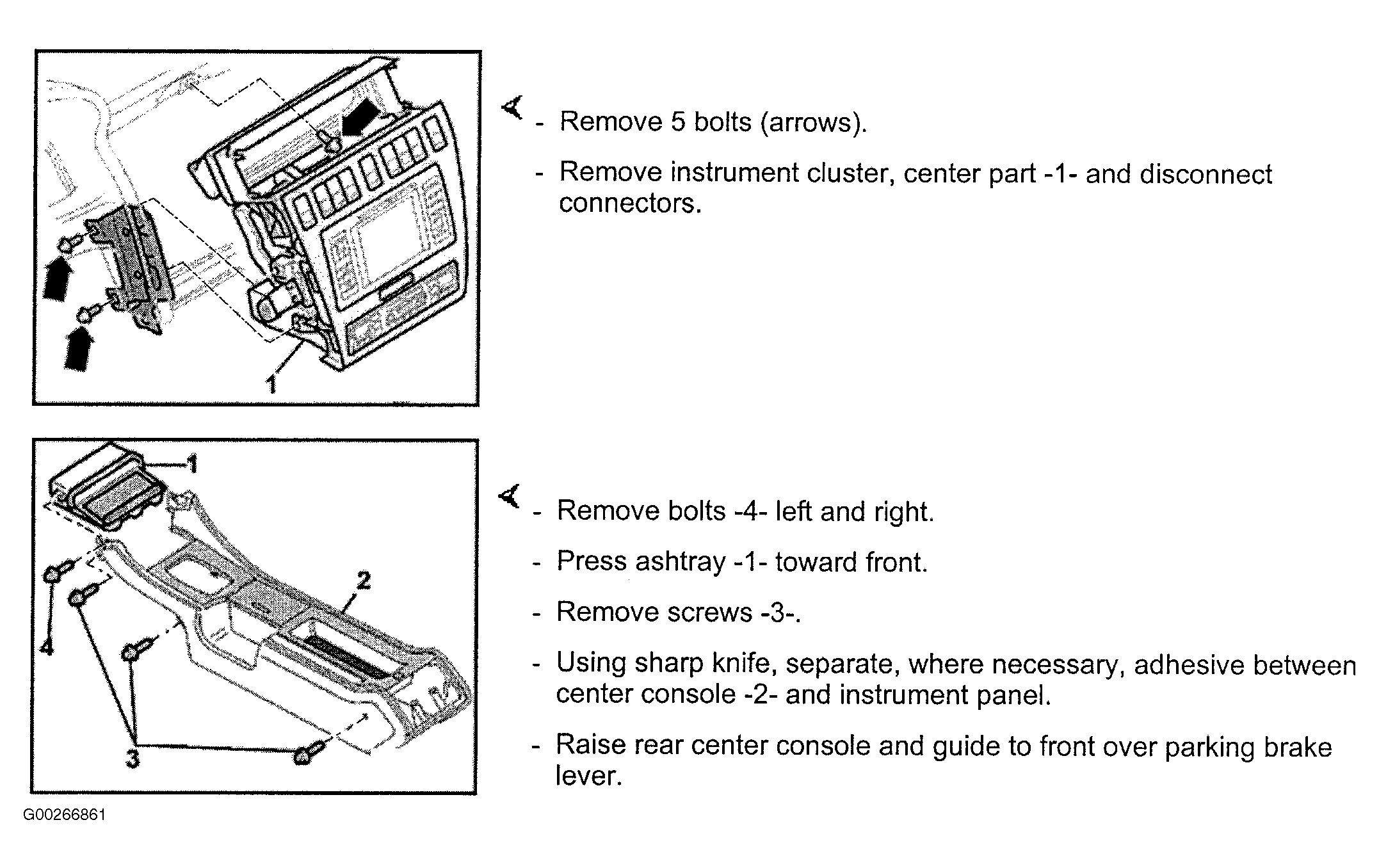

Fig 8: Removing & Installing Center Console (5 Of 5)

Courtesy of AUDI OF AMERICA, INC.

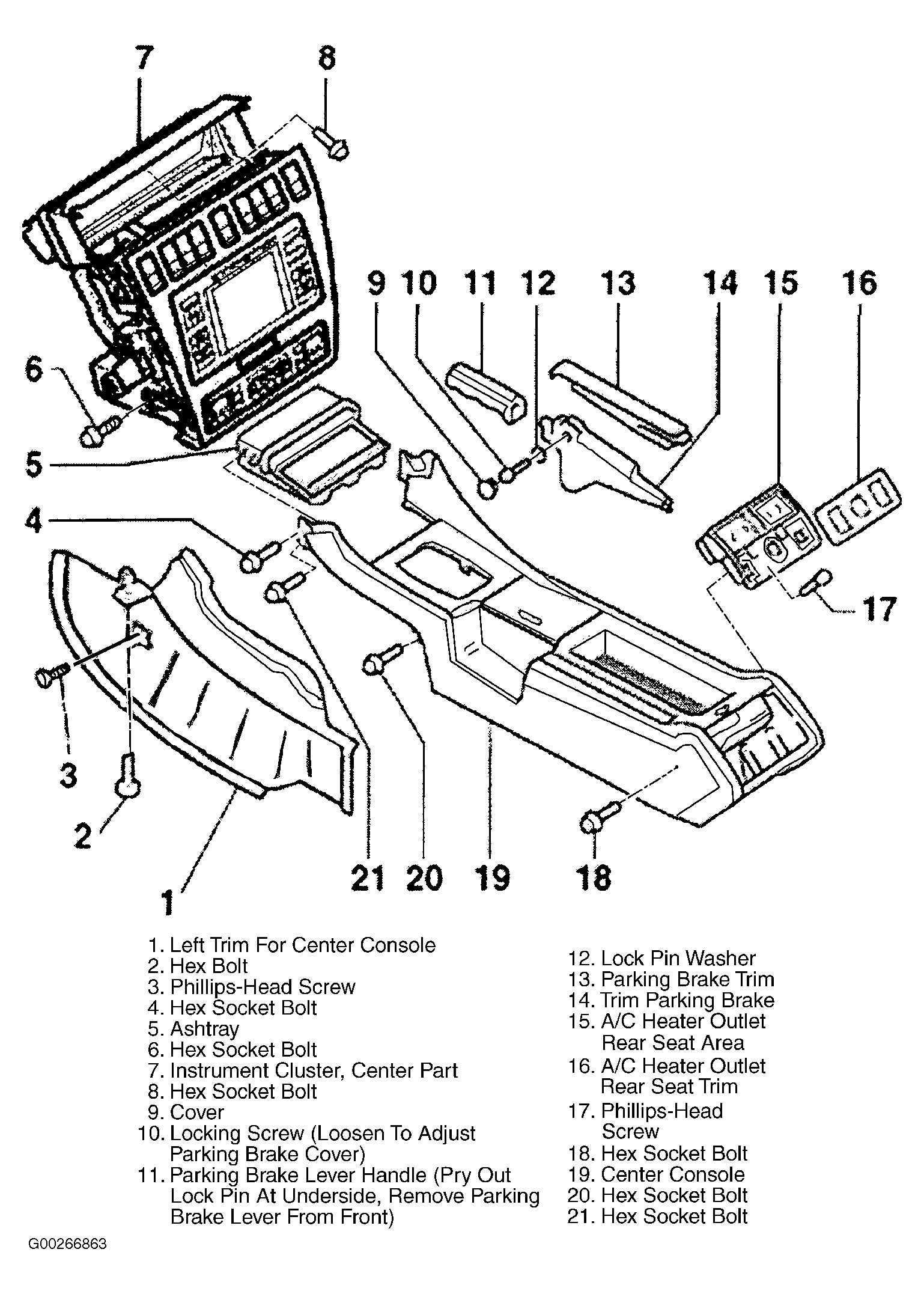

Fig 9: Exploded View Of Center Console Assembly

Courtesy of AUDI OF AMERICA, INC.
