Parking Brake Cables

Use following illustrations to aid in replacement of the parking brake cables. See Fig 1 -Fig 3 .

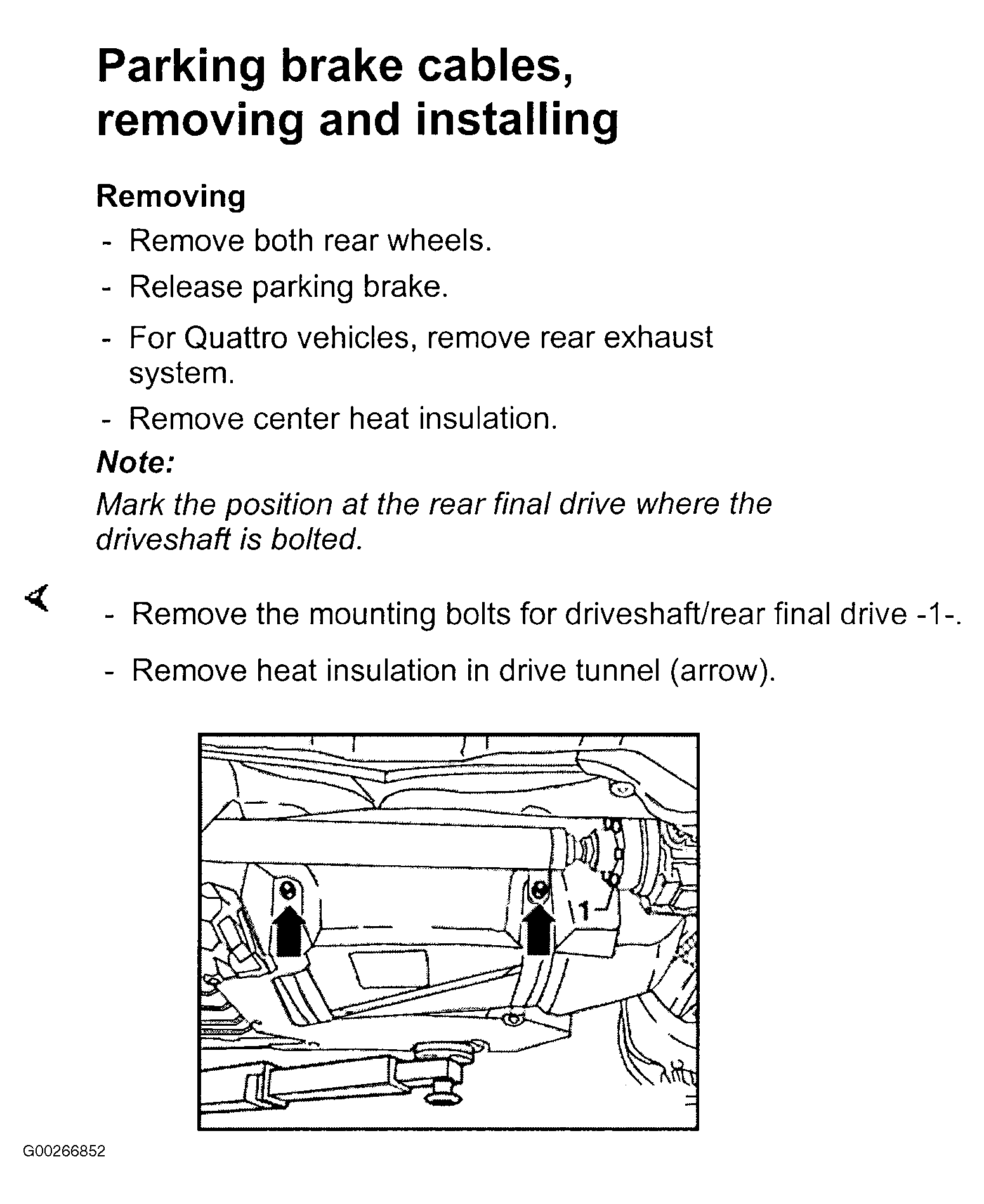

Fig 1: Removing & Installing Parking Brake Cables (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

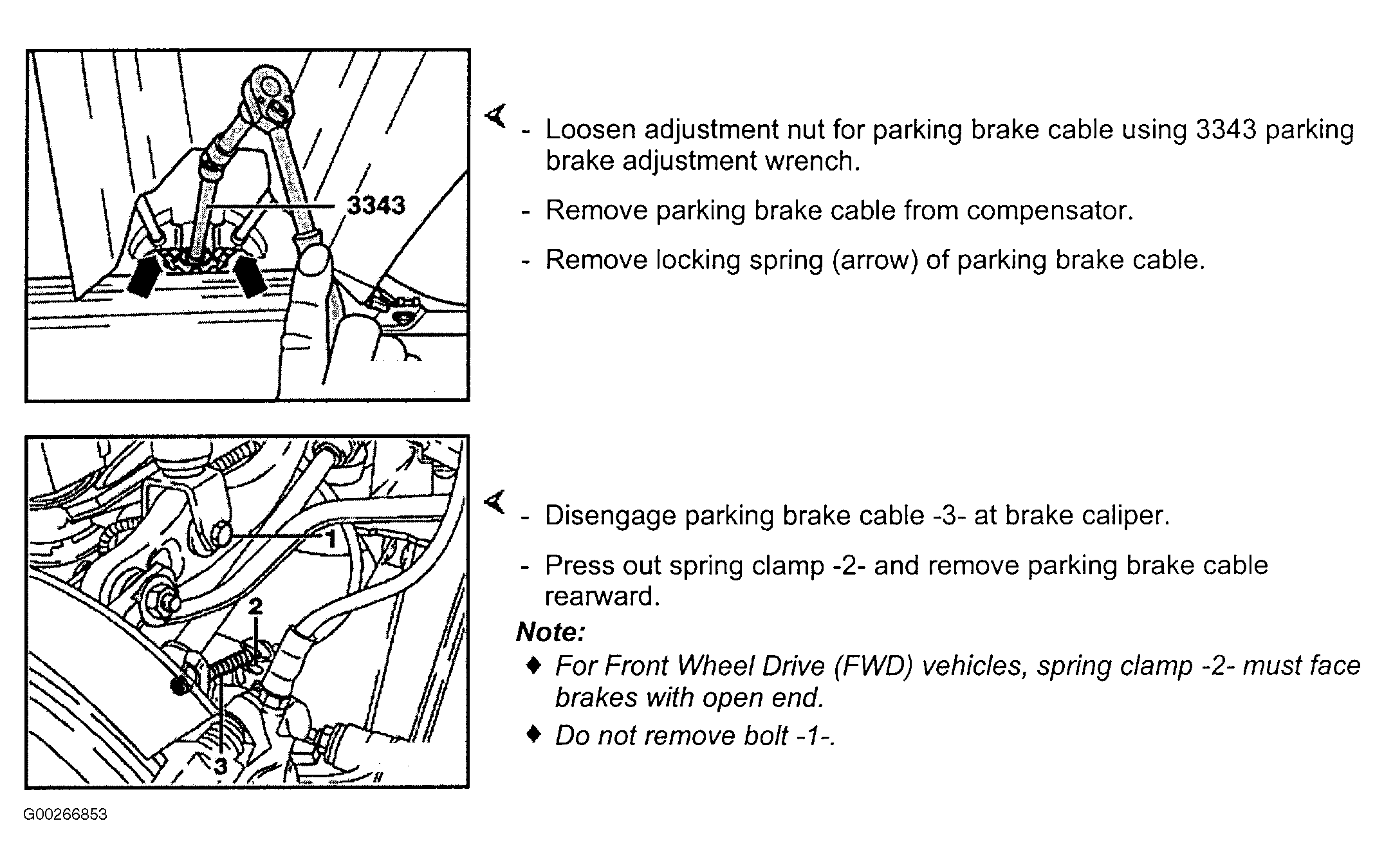

Fig 2: Removing & Installing Parking Brake Cables (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

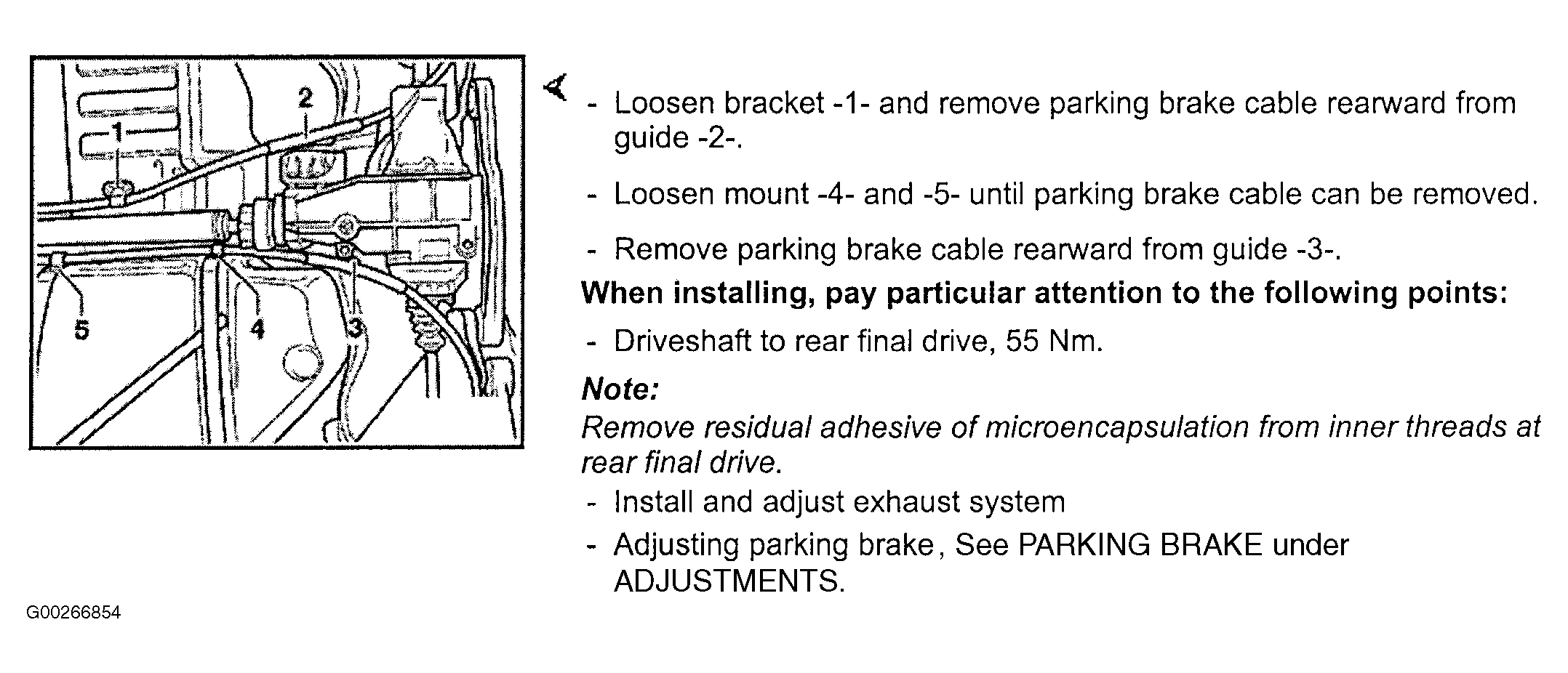

Fig 3: Removing & Installing Parking Brake Cables (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.
