Caliper (Front): Notes

NOTE: Brembo front caliper mounting bolts must be replaced during installation.
  1. Raise and support vehicle. Remove wheels.
  2. If replacing calipers, disconnect brakeline from caliper, and plug openings. If not replacing calipers, do not disconnect brake hoses. Do NOT allow calipers to hang by brake hoses.
  3. Remove caliper mounting bolts. Remove caliper assembly from wheel bearing housing. To install, reverse removal procedure. Use NEW mounting bolts on Brembo calipers. On all calipers, tighten mounting bolts to specification. See TORQUE SPECIFICATIONS  .
  4. If necessary, bleed hydraulic brake system. See BLEEDING BRAKE SYSTEM  under BLEEDING BRAKE SYSTEM.

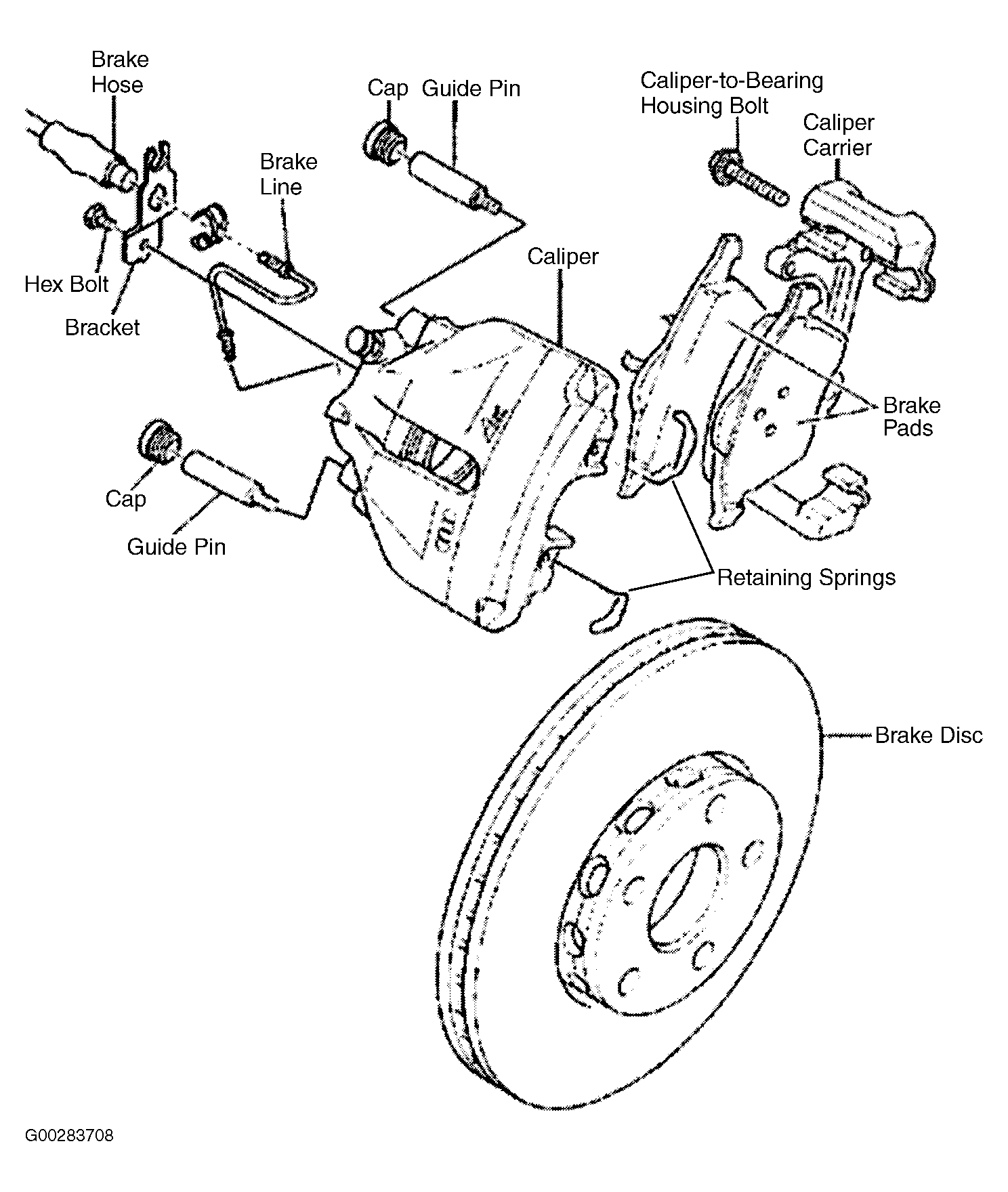

Fig 1: Exploded View Of Front Caliper & Brake Pads (FN3)
G00283708Courtesy of AUDI OF AMERICA, INC.

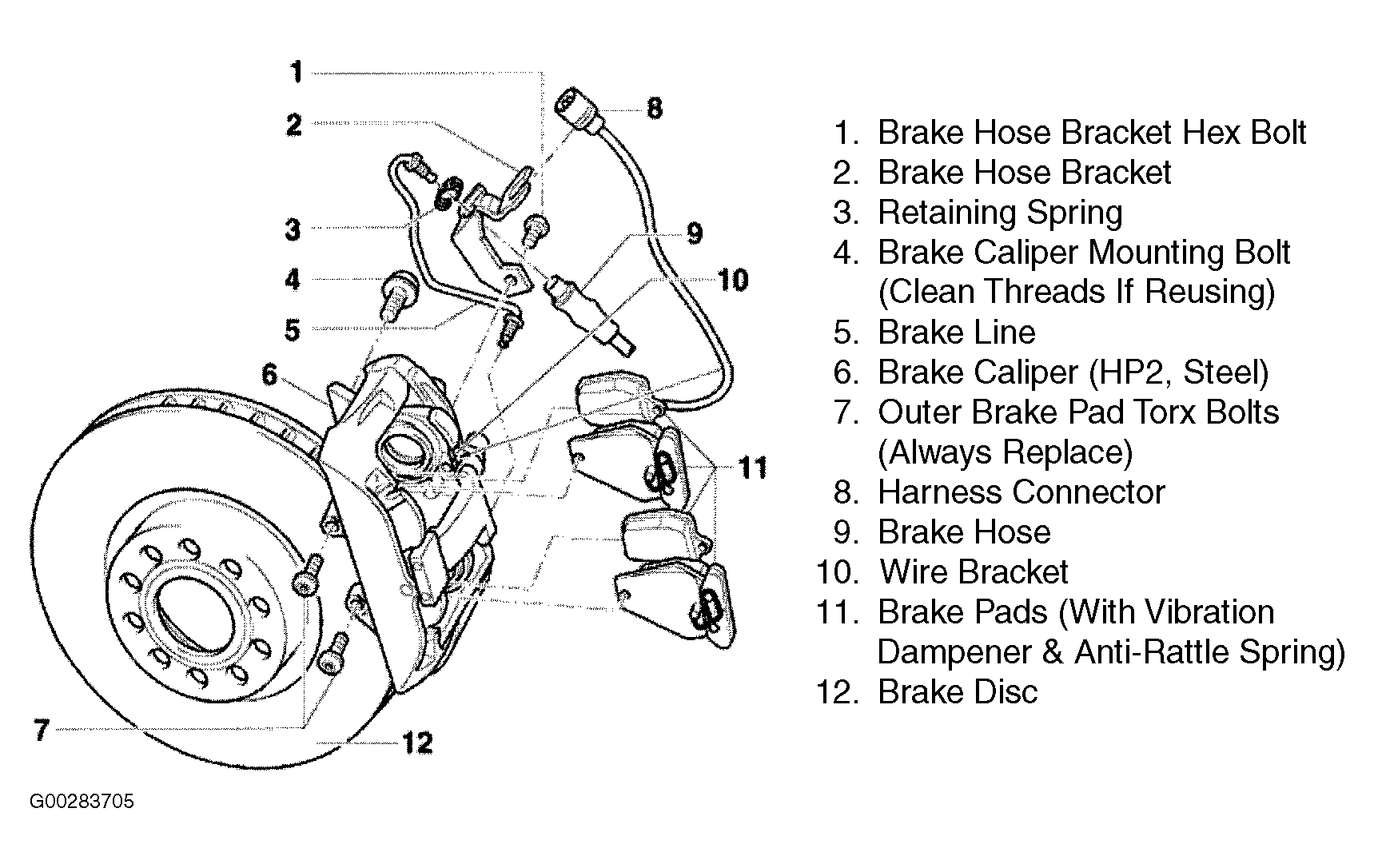

Fig 2: Exploded View Of Front Caliper & Brake Pads (HP2 - Steel)
G00283705Courtesy of AUDI OF AMERICA, INC.

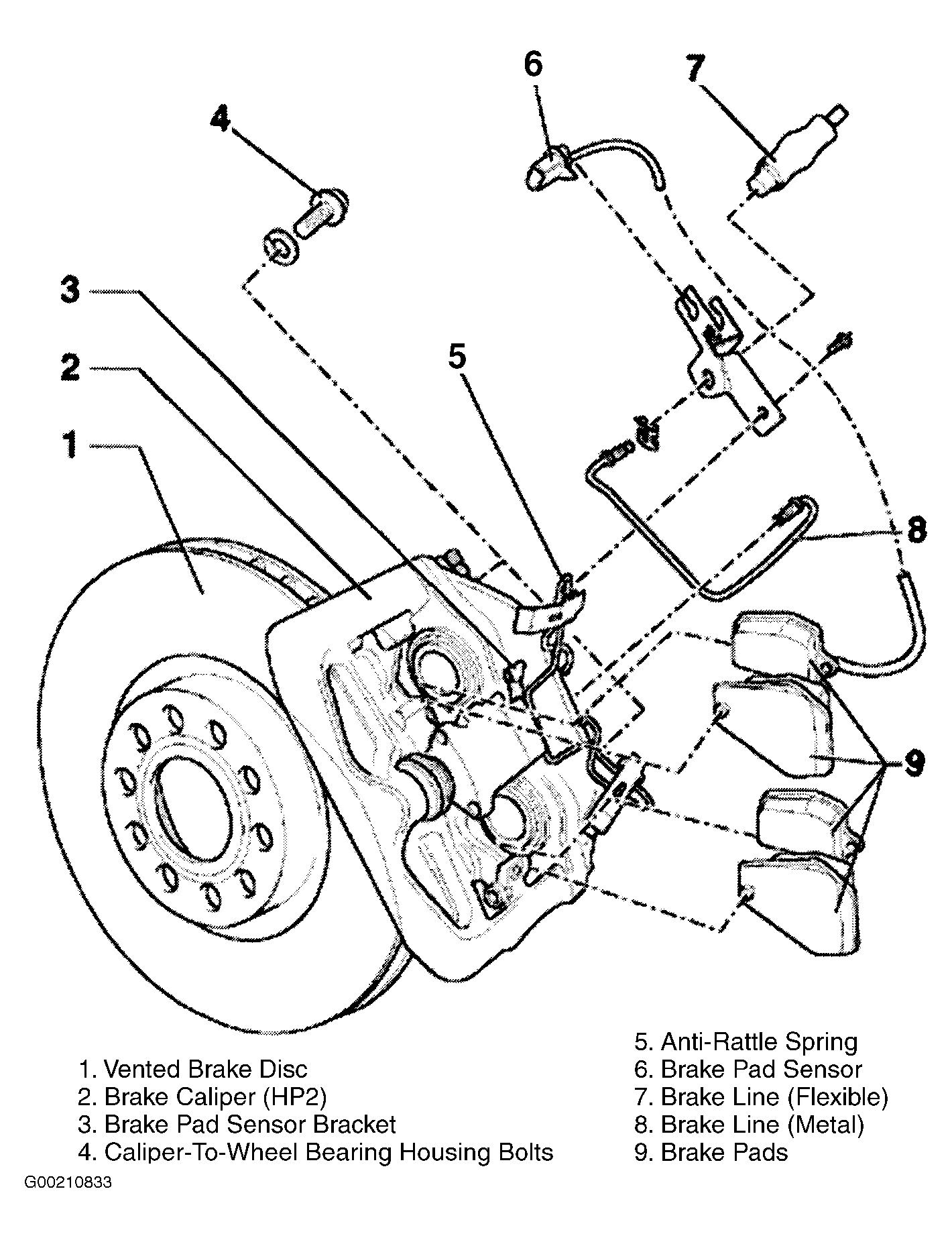

Fig 3: Exploded View Of Front Caliper (HP2 - Aluminum)
G00210833Courtesy of AUDI OF AMERICA, INC.
