Front Caliper (Hp2, Steel Caliper): Notes

CAUTION: Do NOT separate two halves of housing (socket head bolts). Replace brake caliper if protective cap for guide pins is damaged.

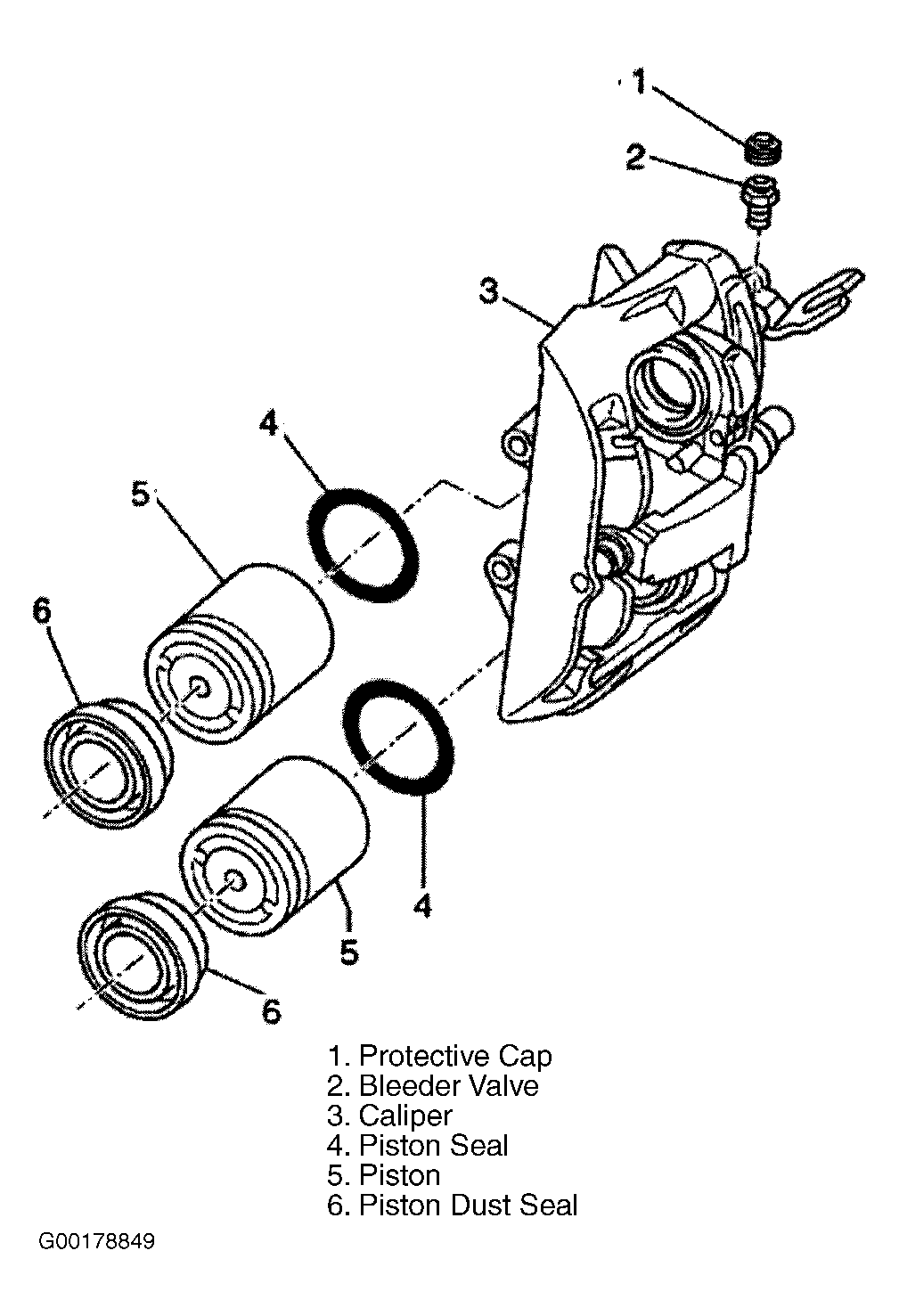

Fig 1: Exploded View Of Double Piston Caliper Assembly (HP2, Steel Caliper)
G00178849Courtesy of AUDI OF AMERICA, INC.
