Disassembly & Reassembly

To overhaul caliper, see Fig 1 -Fig 3 .

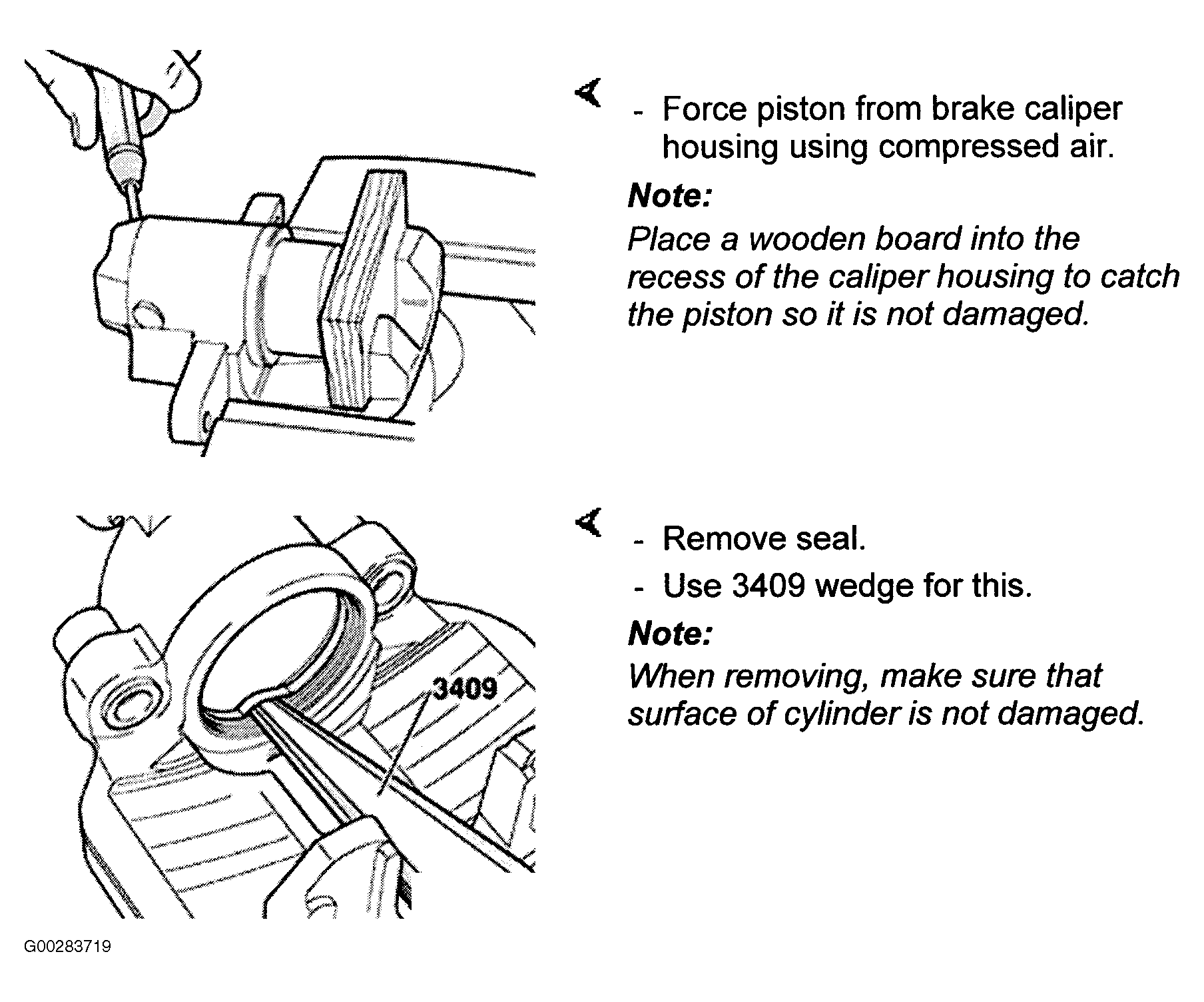

Fig 1: Disassembling Front Caliper (FN3)

Courtesy of AUDI OF AMERICA, INC.

NOTE: Apply a thin coat of brake cylinder paste G 052 150 A2, or equivalent, to brake cylinders, pistons and seals before reassembly. Also apply to to threads of caliper bleeder valve.

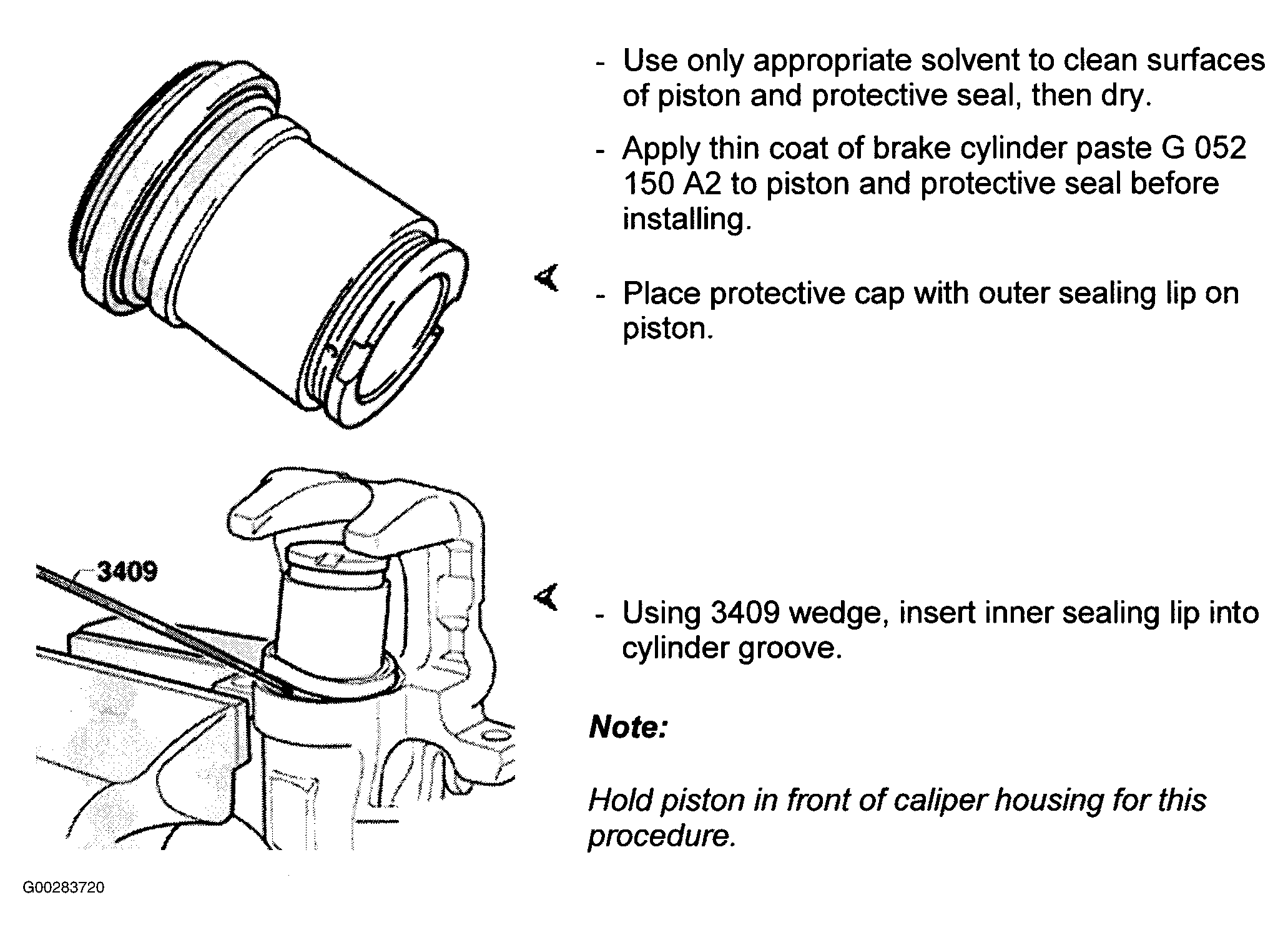

Fig 2: Reassembling Front Caliper (FN3 - 1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

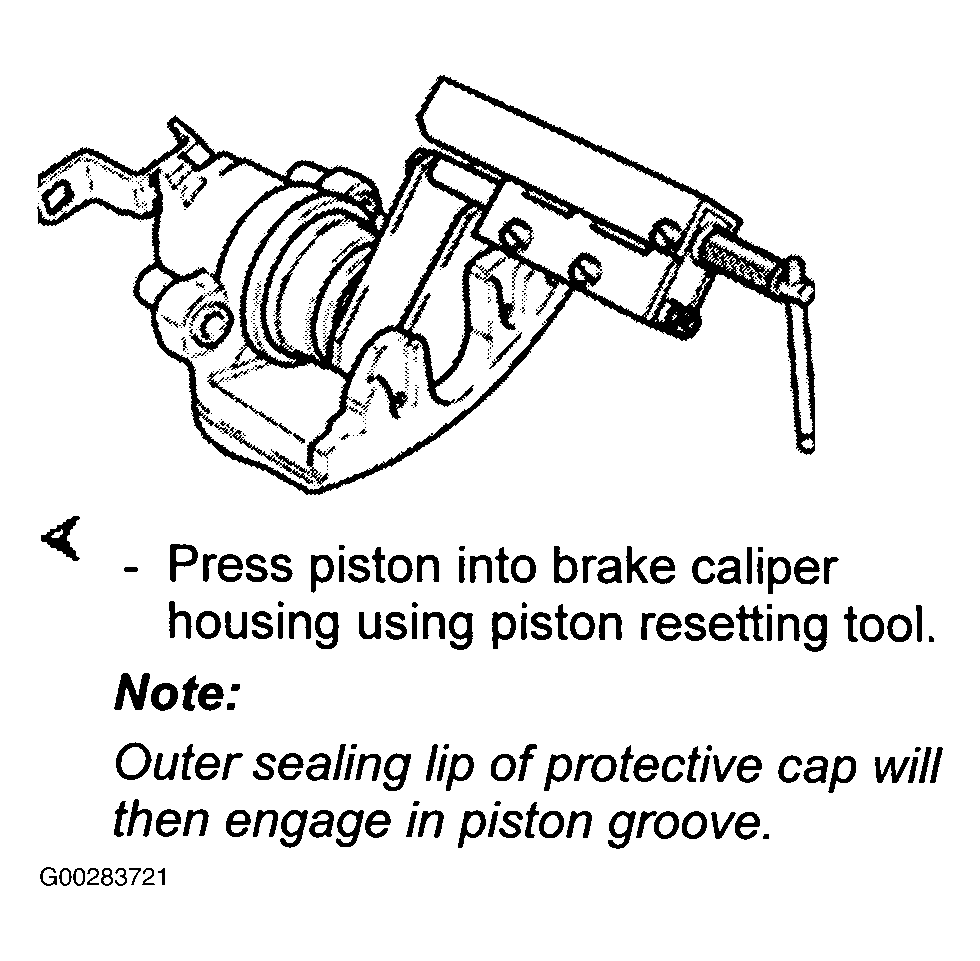

Fig 3: Reassembling Front Caliper (FN3 - 2 Of 2)

Courtesy of AUDI OF AMERICA, INC.
