Front Caliper (BREMBO): Reassembly

Install piston dust seal (1) on piston (2). Insert piston seal (3) in brake caliper. See Fig 1 .

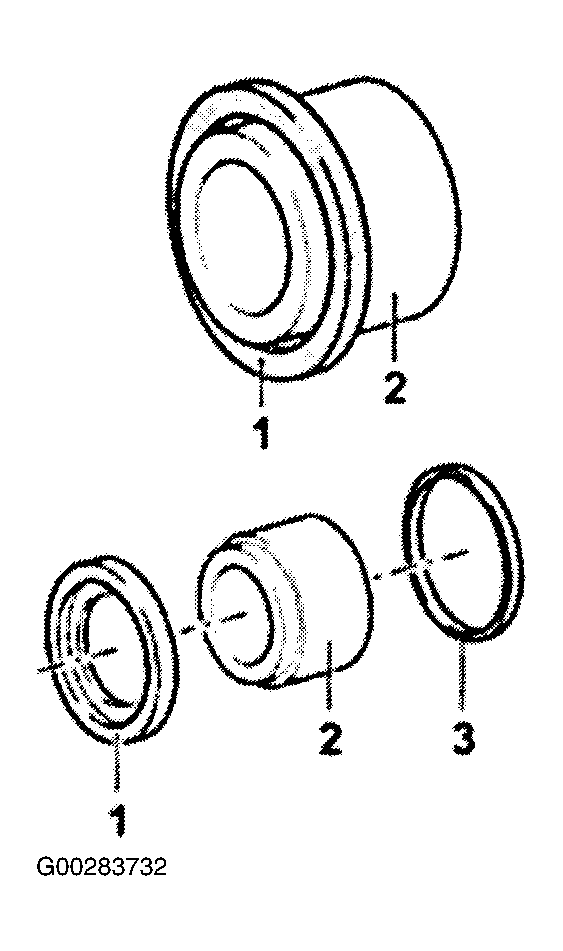

Fig 1: Installing Piston Seals (Brembo)
Courtesy of AUDI OF AMERICA, INC.
Insert piston into hole by hand.Press brake piston past inner seal by hand.
Press protective cap 1.73" (44 mm) into brake caliper housing using piston resetting tool and Special Tool (3294/1). See Fig 2 .

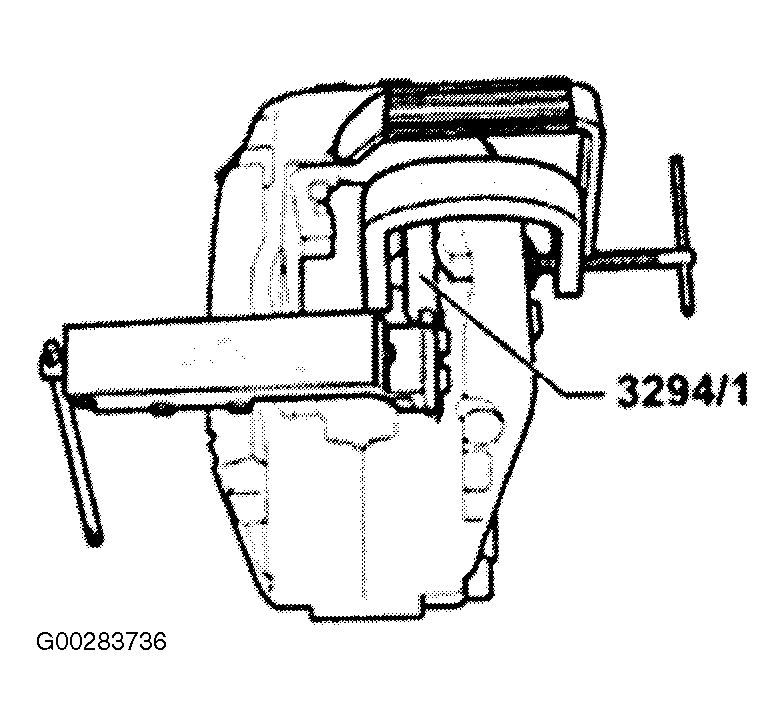

Fig 2: Identifying Special Tool (3294/1)
Courtesy of AUDI OF AMERICA, INC.
Press protective cap 1.57" (40 mm) into brake caliper housing using piston resetting tool and Special Tool (3350/2). See Fig 3 .

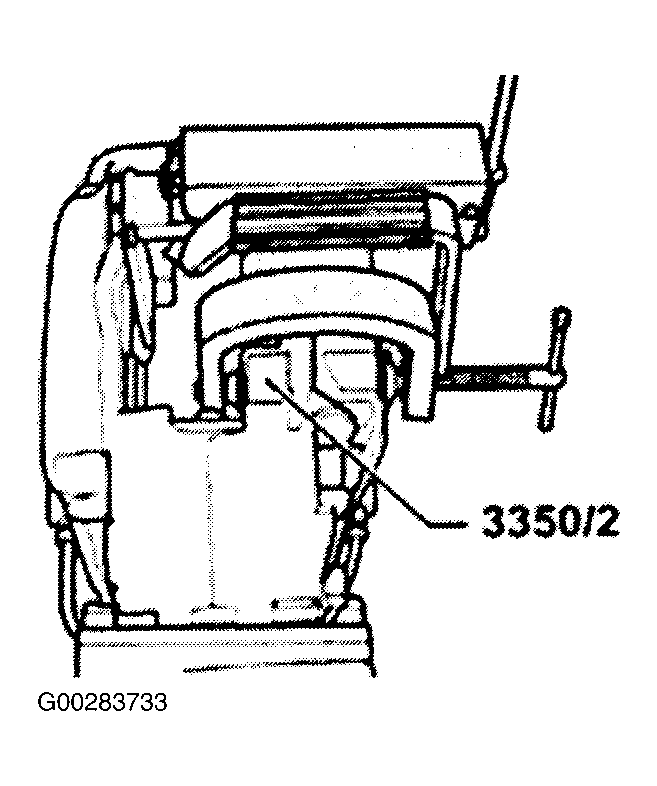

Fig 3: Pressing Piston Into Caliper Bore (Brembo)
Courtesy of AUDI OF AMERICA, INC.
