Front Caliper (BREMBO): Notes

CAUTION: Do NOT separate two halves of housing (socket head bolts). Replace brake caliper if protective cap for guide pins is damaged.

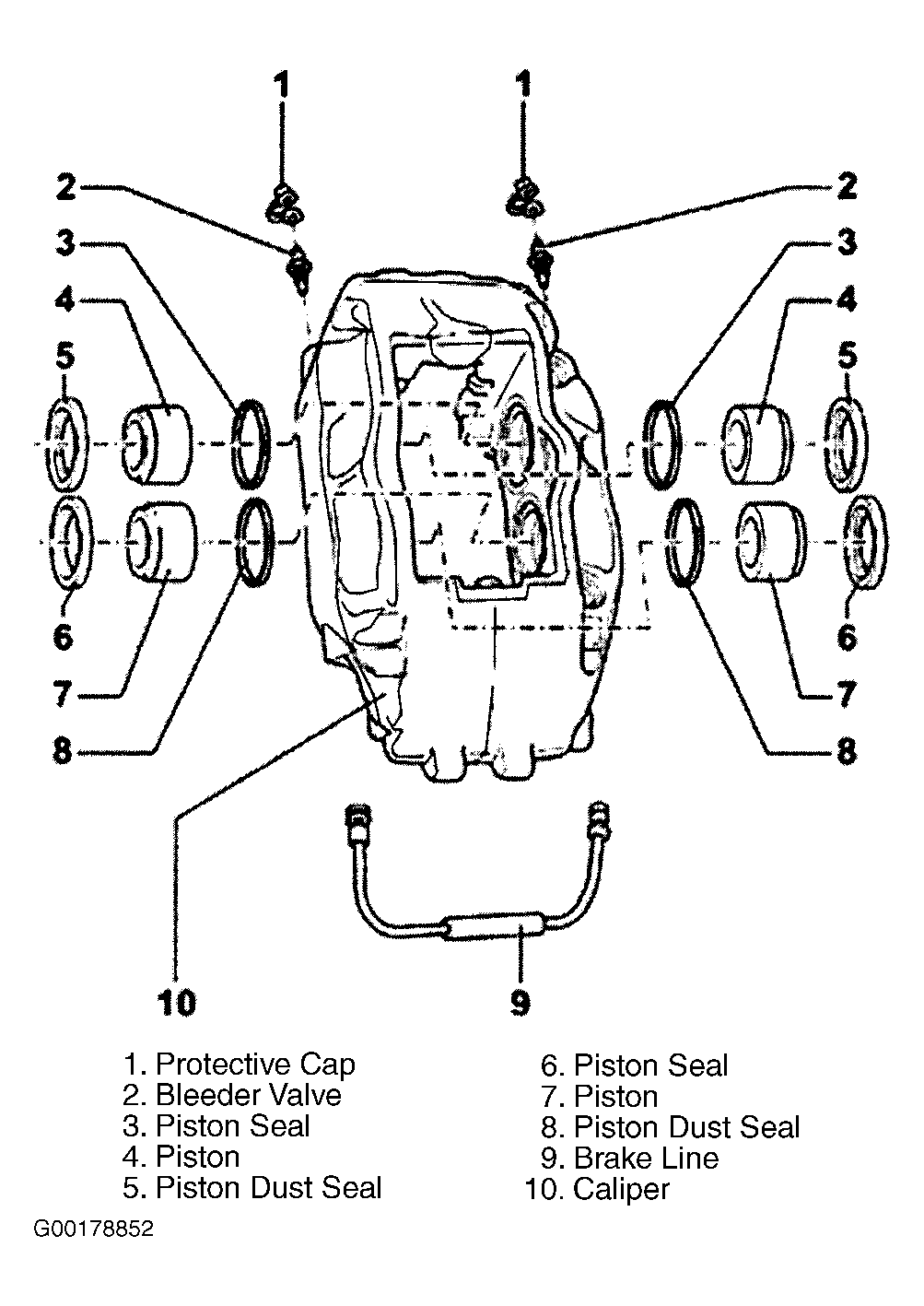

Fig 1: Exploded View Of Four Piston Caliper Assembly (Brembo)
G00178852Courtesy of AUDI OF AMERICA, INC.
