Front Caliper (BREMBO): Disassembly

  1. Remove pads, and clean exterior surfaces.
  2. Use air pressure to force piston from cylinder. Insert brake piston resetting tools (b) and (c) in piston. See Fig 1 . Place a wooden board (a) into the recess of the caliper housing to catch the pistons so they are not damaged. Only one piston can be pressed out at a time. Hold the other piston securely in brake caliper housing using piston resetting tool.

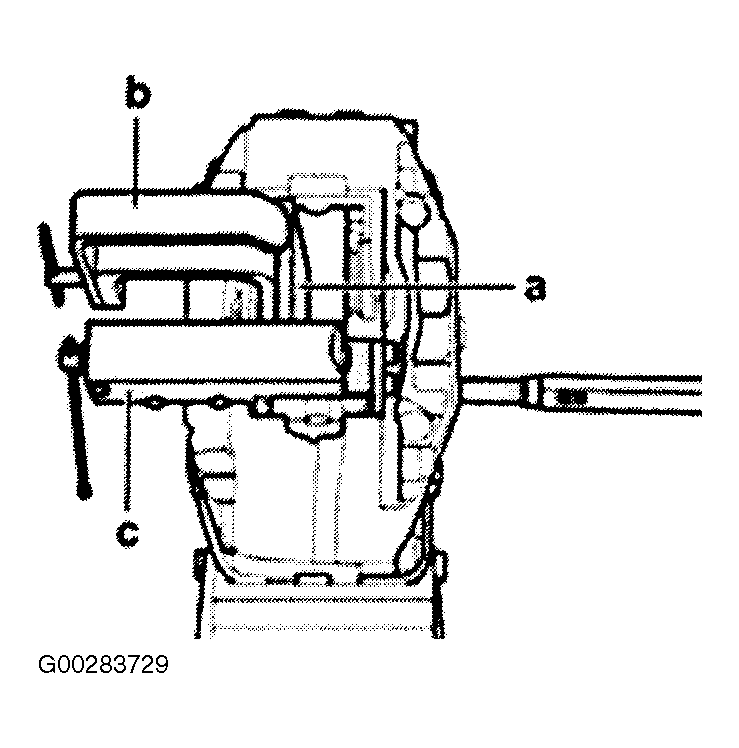

    Fig 1: Removing Front Caliper Pistons (Brembo)
    G00283729Courtesy of AUDI OF AMERICA, INC.
  3. Remove piston dust seals using Wedge (3409). See Fig 2 . When removing, make sure that surface of brake caliper is not damaged.

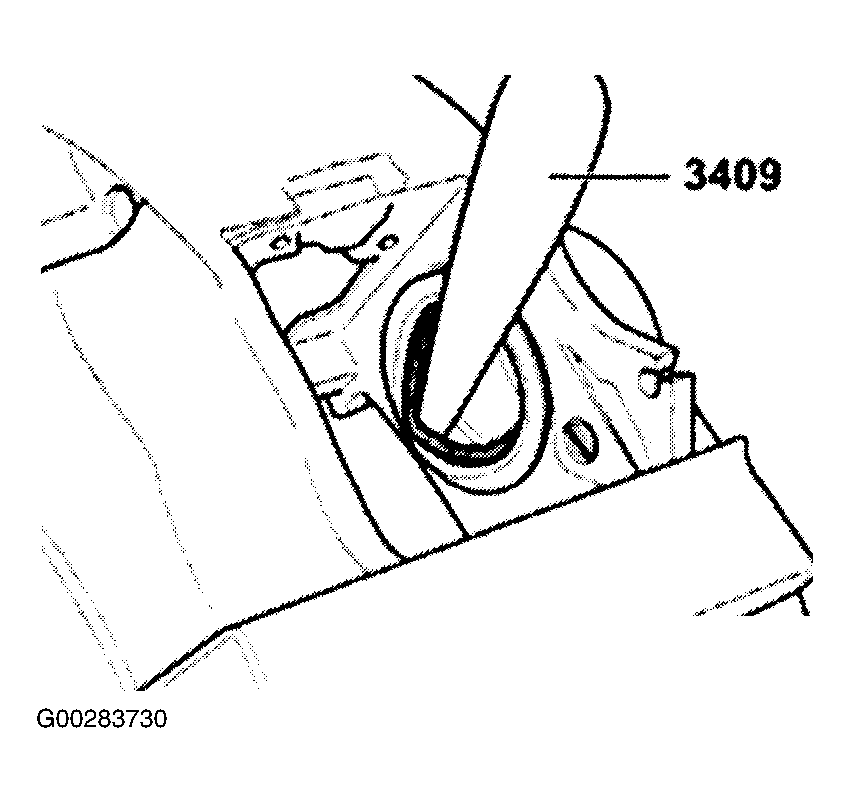

    Fig 2: Removing Piston Dust Seal (Brembo)
    G00283730Courtesy of AUDI OF AMERICA, INC.
  4. Remove piston seals using Wedge (3409). See Fig 3 . When removing, make sure that surface of brake caliper is not damaged.

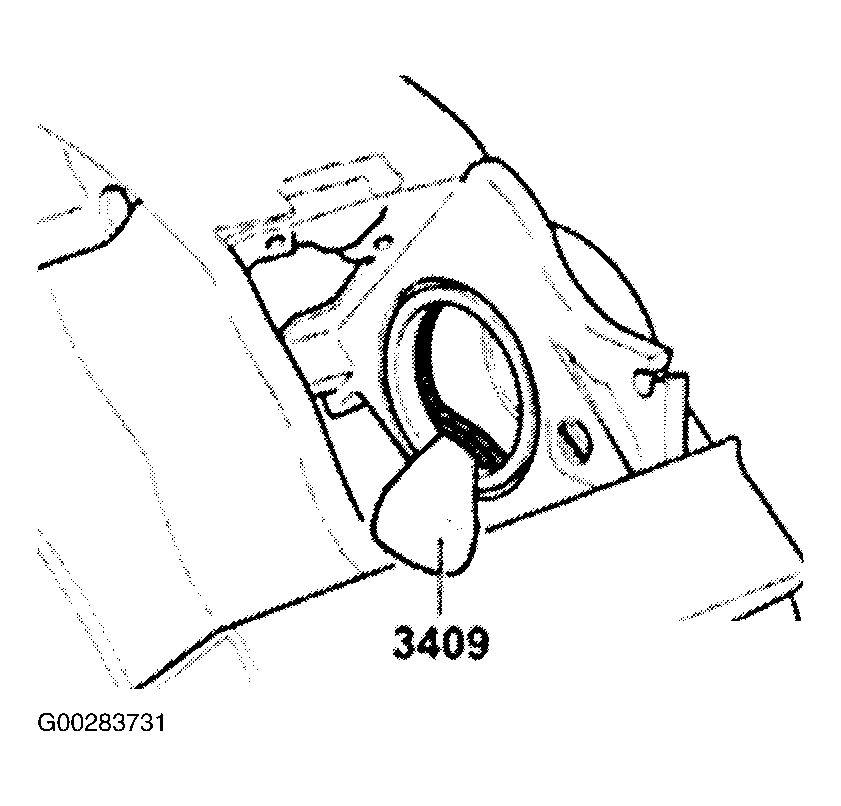

    Fig 3: Removing Piston Seals (Brembo)
    G00283731Courtesy of AUDI OF AMERICA, INC.
