Power Booster Push Rod

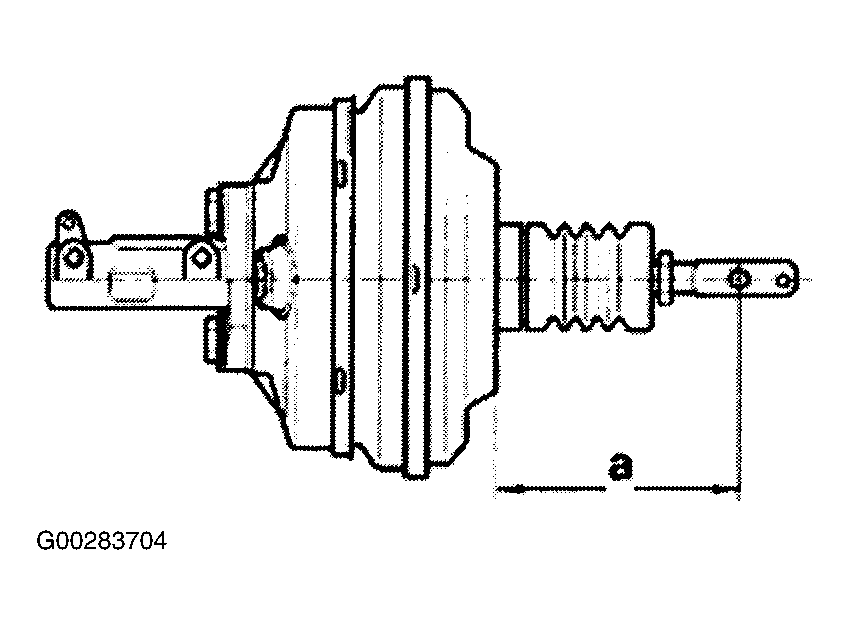

Measure push rod length whenever power booster or master cylinder is replaced. Push rod length is measured from master cylinder mounting flange to center mounting hole in fork head. Measure distance "a". See Fig 1 . Adjust push rod length if not as specified. See POWER BOOSTER PUSH ROD LENGTH table.
POWER BOOSTER PUSH ROD LENGTH
| Application | Specification - In. (mm) | |
|---|---|---|
| A8 & S8 | 5.31 +/- 0.197 (135 +/- 5) | |
