Test requirements:

• Use wiring diagram to check that fuses are OK.
• Connect the vehicle diagnosis, measurement and information system VAS 5051 or Scan tool V.A.G 1551. See VAG1551 SCAN TOOL (ST), CONNECTING AND ENTERING ADDRESS WORD  .
• Switch ignition on.

• Switch on printer with the Print button (indicator light in button lights up).
• Press button -1- for "Rapid data transfer" mode.

Indicated on display:

Address word for tire pressure monitoring: 65

• Press buttons -6- and -5-.

Indicated on display:

• Confirm entry with -Q- button.
• The display will indicate the following after approximately 5 seconds:

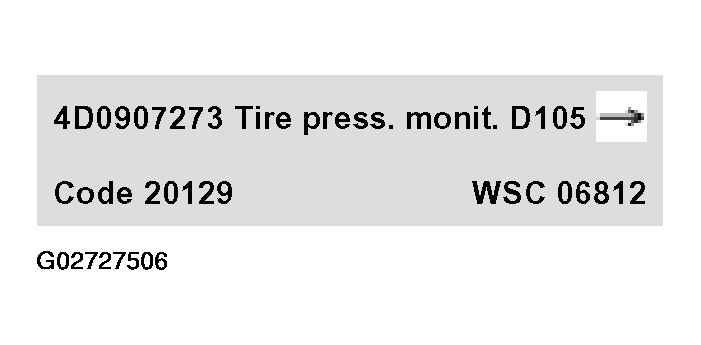

  Fig 3: VAG 1551 Scan Tool Display - Tire Pressure Monitoring (Code 20129)

  Courtesy of AUDI OF AMERICA, INC.
  • 4D0907273: Part number
  • Tire press. monit.: Component designation
  • D105: Software version of control module
  • Coding 20129: Control module code
  • WSC 06812: Workshop code

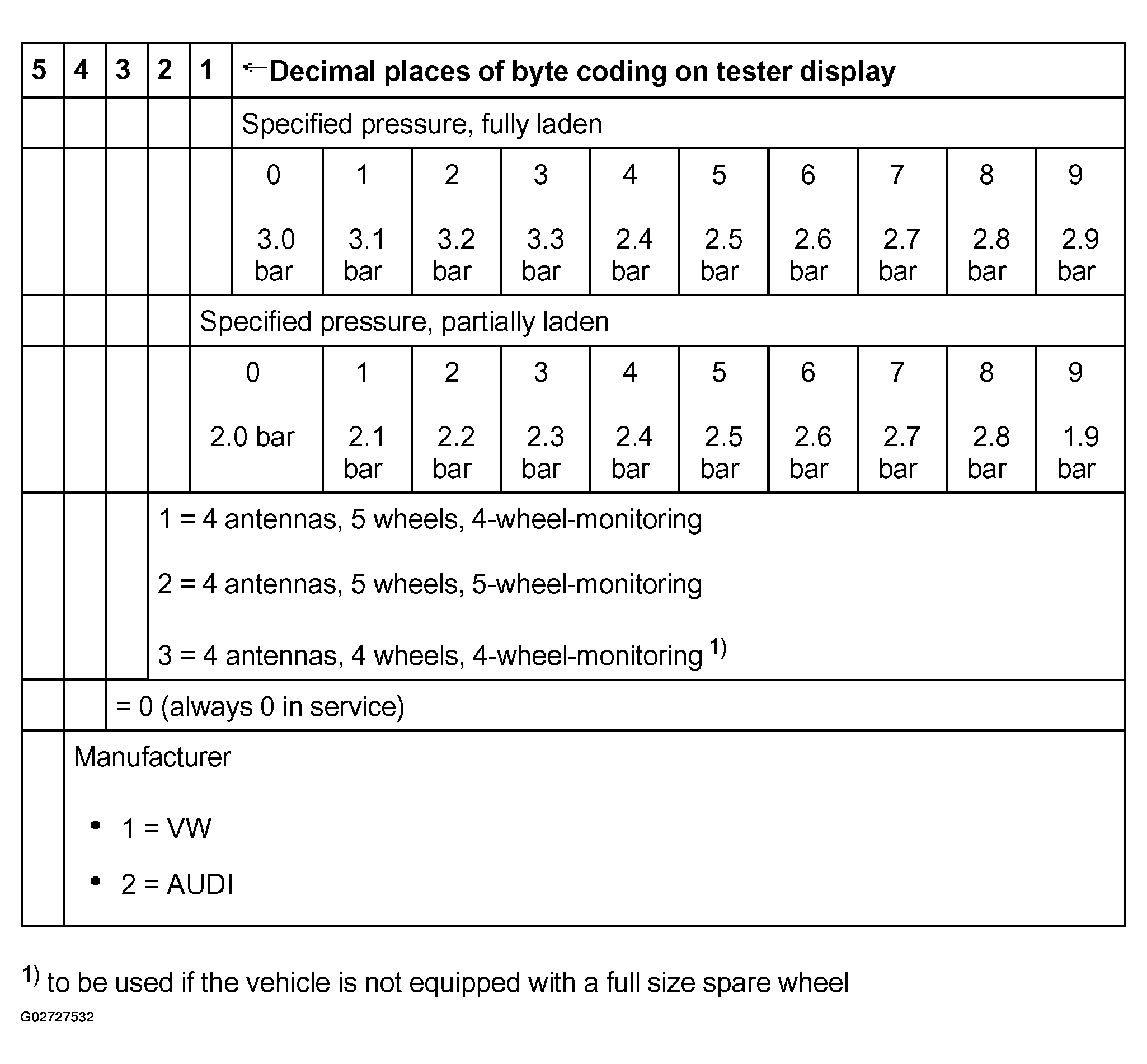

  NOTE: Check coding according to coding table. See Figure .
• Press --> button.

Indicated on display:

• Press HELP button to obtain a printout of the available functions.
• Continue through program procedure using the --> button.
