Read measured value block: Notes
Performing function "Read measured value block"
Indicated on display:
Fig 1: VAG 1551 Scan Tool Display - Read Measured Value Block, Tire Pressure Monitor (Select Function)
- Press buttons -0- and -8- (08 selects function "Read measured value block").
Indicated on display:

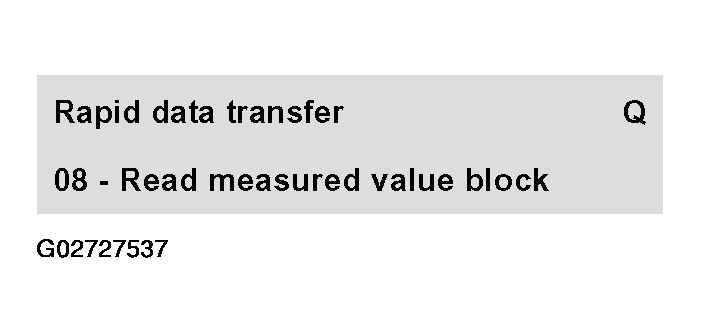

Fig 2: VAG 1551 Scan Tool Display - Read Measured Value Block, Tire Pressure Monitor (08-Read Measured Value Block)
- Confirm entry with -Q- button.
Indicated on display:

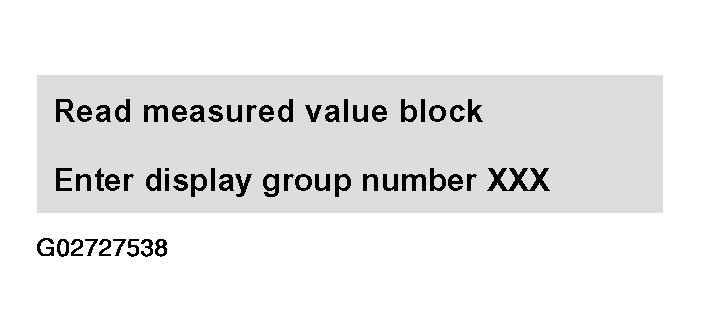

Fig 3: VAG 1551 Scan Tool Display - Read Measured Value Block, Tire Pressure Monitor (Enter Display Group Number)
- Enter display group number and confirm with -Q- button.
The measured value block which has been selected will appear in standard format.
