Application of brake lines in bracket

  1. Intake line, hydraulic pump for Anti-slip Regulation (ASR) to brake fluid reservoir
  2. From hydraulic pump for Anti-slip Regulation (ASR) to master brake cylinder (primary piston circuit)
  3. From ABS hydraulic unit to master brake cylinder (secondary piston circuit)
  4. From ABS hydraulic unit to right front brake caliper
  5. From ABS hydraulic unit to left front brake caliper

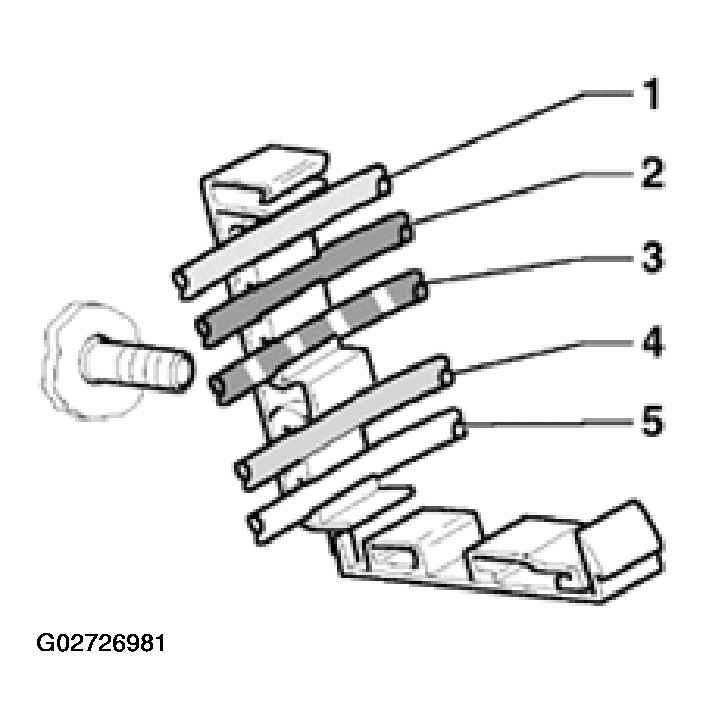

    6. Fig 1: Identifying Brake Lines In Bracket (Bosch 5.3)
    G02726981Courtesy of AUDI OF AMERICA, INC.
