Installed, up to March 1997

NOTE:

F = direction of travel

NOTE: When loosening by 1/2 turn, seals maintain contact with the sealing surfaces. This prevents entry of dirt during turning.

Turn suction dampers in direction of arrow until they form a 60° angle to the ABS hydraulic unit.

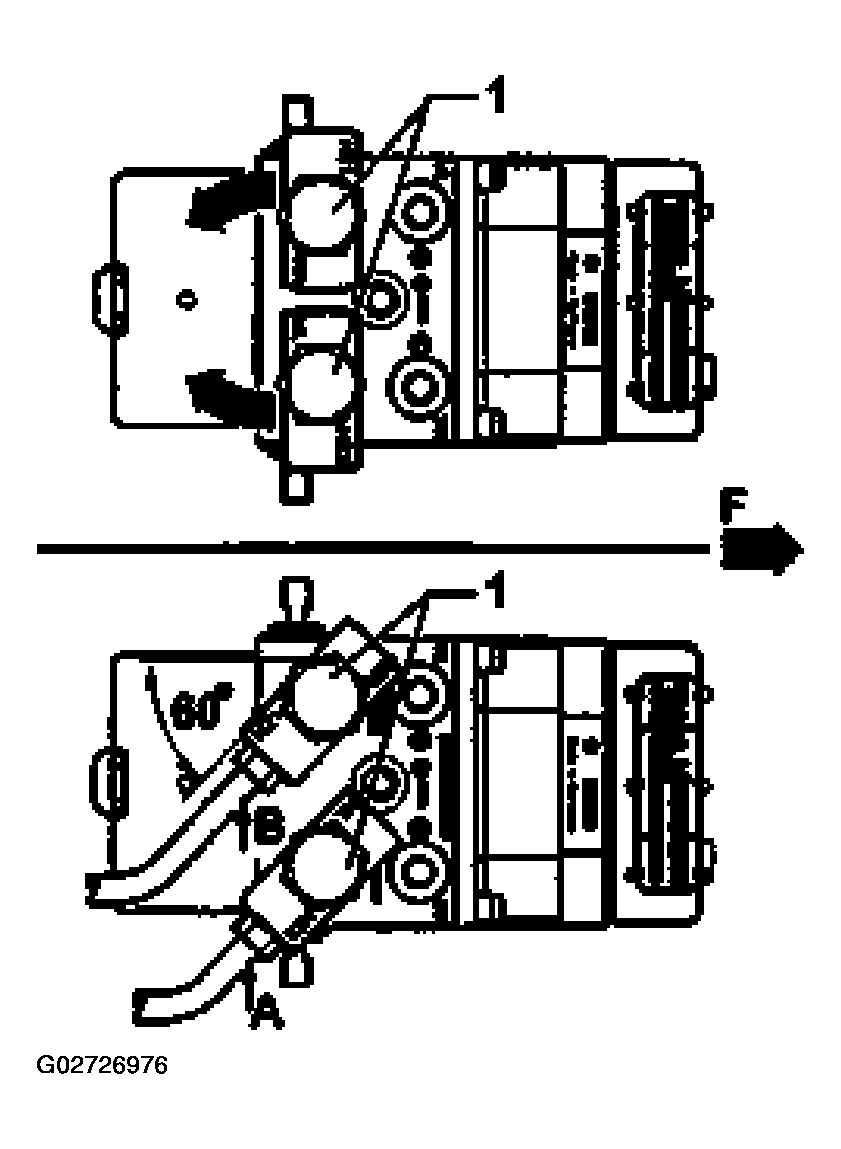

Fig 1: Aligning Suction Dampers - Up To March 1997, Bosch 5.3
Courtesy of AUDI OF AMERICA, INC.
Attach brake lines -A- and -B-.

NOTE: Counterhold side surfaces of suction dampers when tightening.

The following list pertains to Fig 1 .

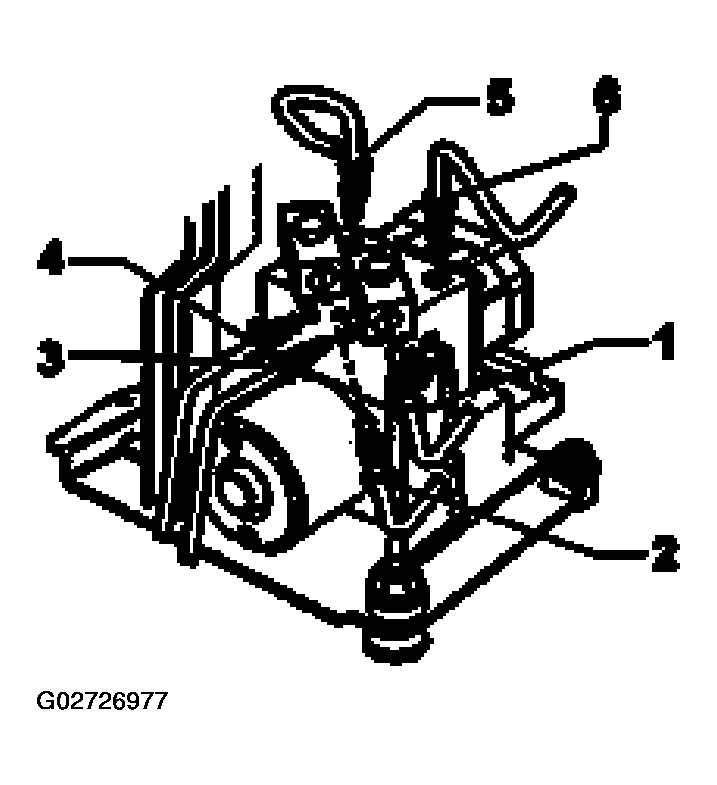

Fig 1: Identifying ABS Master Cylinder Components (Up To March 1997, Bosch 5.3)

Courtesy of AUDI OF AMERICA, INC.
