Installed, as of April 1997

  1. Master brake cylinder (secondary piston circuit)
  2. Master brake cylinder (primary piston circuit)
  3. Left rear brake caliper
  4. Right rear brake caliper
  5. Left front brake caliper
  6. Right front brake caliper

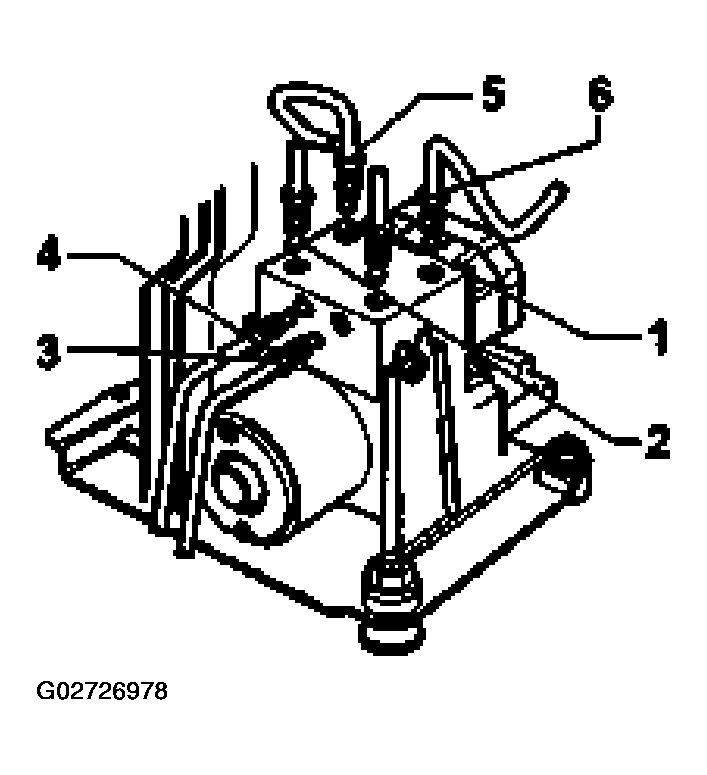

    7. Fig 1: Identifying ABS Master Cylinder Components (As Of April 1997, Bosch 5.3)
    G02726978Courtesy of AUDI OF AMERICA, INC.
