Sensor for transverse acceleration -G200- and sender for rotation rate -G202-, removing and installing: Removing

• Switch off ignition.
• Remove driver seat.

  See FRONT SEATS .

The Sensor for transverse acceleration -G202- is installed under the driver's seat.

Bolt tightening torque: 5 Nm

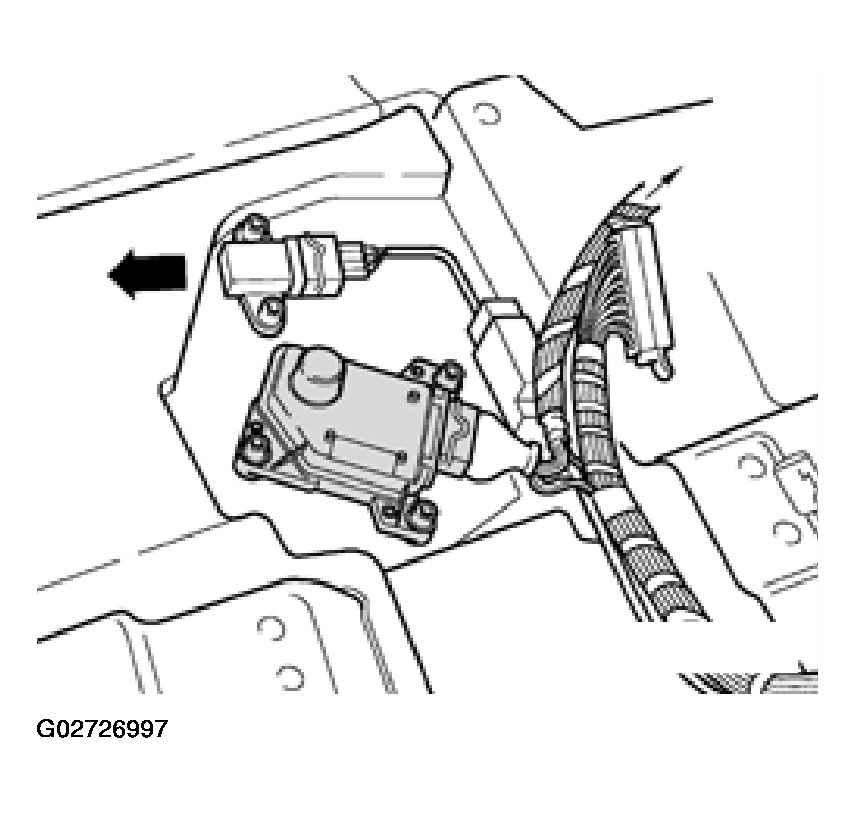

Fig 1: Removing Sensor For Transverse Acceleration

Courtesy of AUDI OF AMERICA, INC.
