Rear window regulator, removing and installing: Notes

• Rear door trim removed

See REAR DOOR TRIM, REMOVING AND INSTALLING .

1. Rear window regulator
   • To remove, drill off rivet heads -2- and knock out rivet shafts
   • Securely rivet window at point designated by arrow first
2. Pop rivet (6x)
   • To avoid contact corrosion, use only genuine Audi rivets
3. Door component carrier
   • Removing and installing. See DOOR SHELL AND DOOR COMPONENT CARRIER, REMOVING AND INSTALLING  .
4. Window regulator motor
   • Disconnect harness connector

     See DISCONNECTING WINDOW REGULATOR MOTOR HARNESS CONNECTOR  .

   • After installing, run window up to stop.
   • Activate all power window switches ("up") for at least one second to activate automatic window raising/lowering.
5. Bolts (3x)
   • 10 Nm (7 ft lb)
6. Clip
   • Engage window regulator -1- in clip and close clip (arrow).
7. Guide pin
8. Damper washer
9. Washer
10. Locking washer

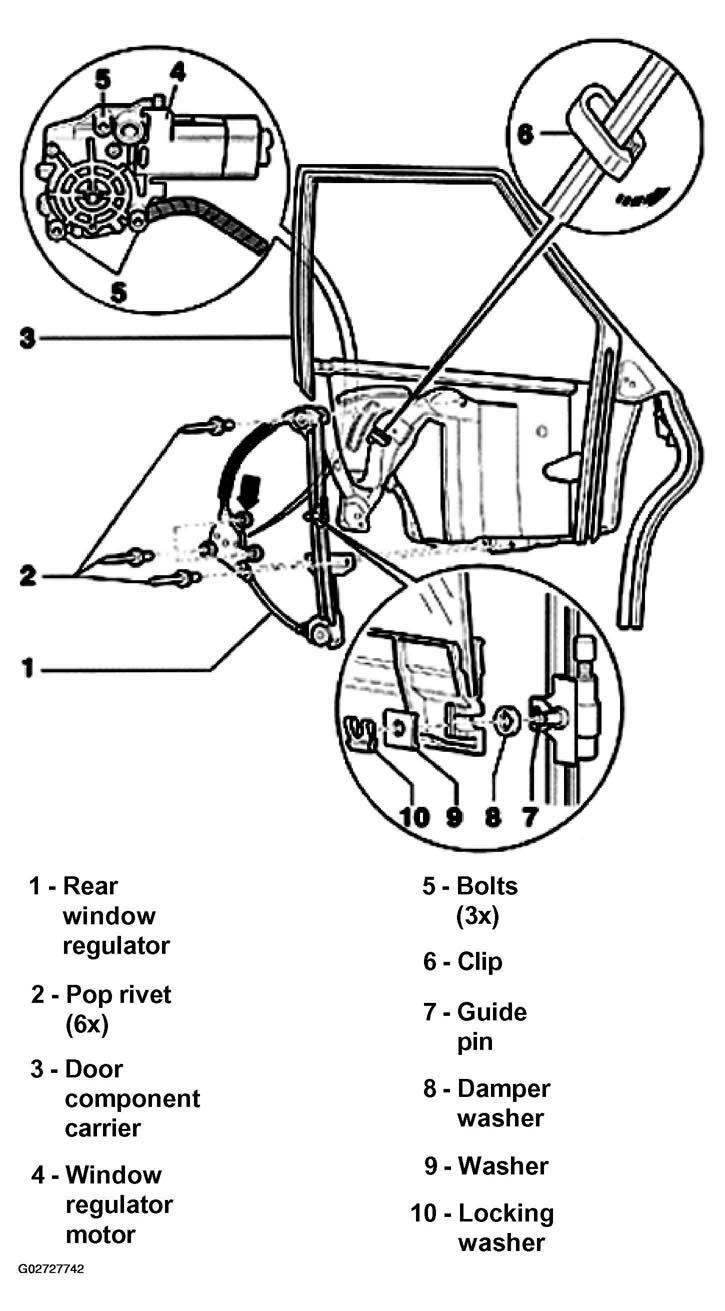

Fig 1: Identifying Rear Window Regulator Components (Up To M.Y. 1999)
Courtesy of AUDI OF AMERICA, INC.
