Removing side impact bar
Removing side impact bar
Pry off cover -3-.
Remove hex bolts -2- (3x) and remove side impact bar -5- from door shell -1-.
NOTE:
Butyl cord -4- must always be installed; replace if necessary.

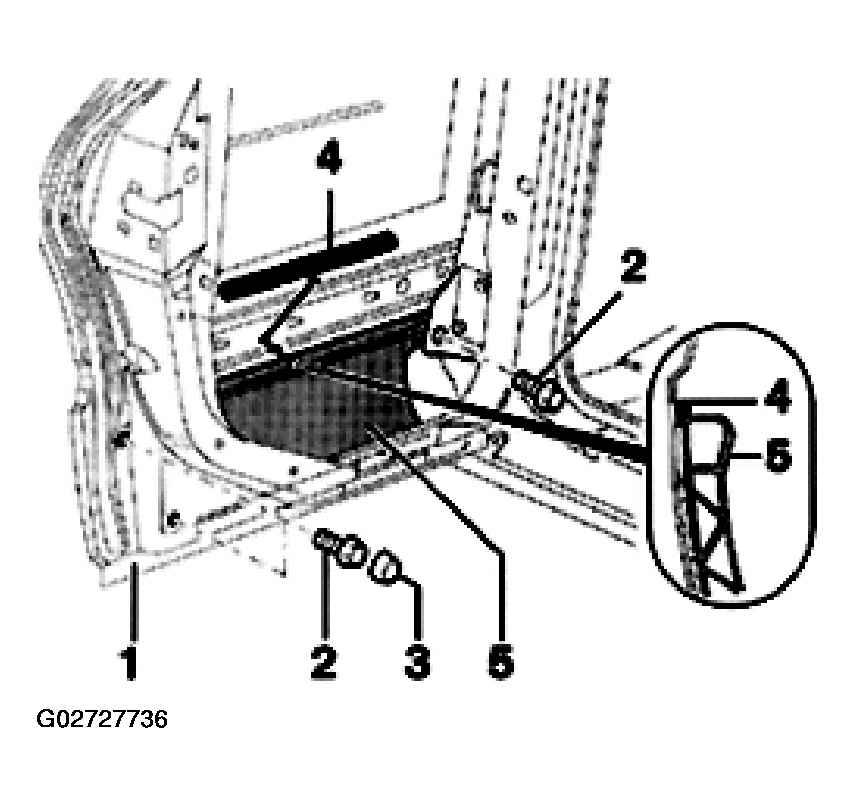

Fig 1: Removing Side Impact Bar (Up To M.Y. 1999)
Courtesy of AUDI OF AMERICA, INC.
