Operating rods for rear door lock, removing and installing: Notes
NOTE:

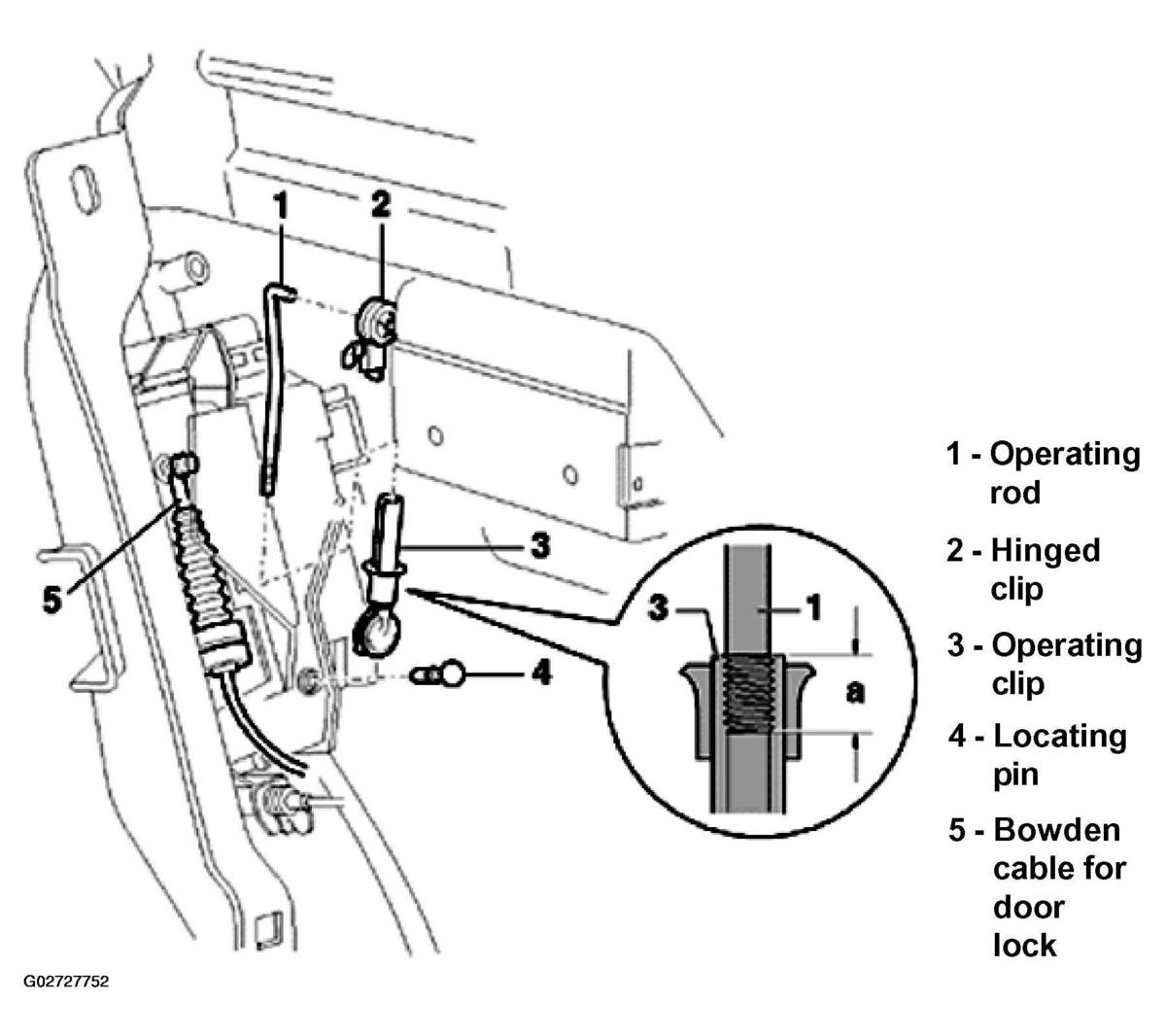

The following list refers to Fig 1
.
- Operating rod
Adjusting:
- Engage operating rod in hinged clip -2-.
- Attach operating rod to operating clip -3- without straining activation lever on door handle (max. play 1.5 mm).
- Slide up casing -4- on operating clip -3- to engage.
- Clip length -4a-: 13 +/- 3 mm
- Do not pull locating pin -4- out of door lock until after installing operating rod.
- Hinged clip
- Operating clip
- Locating pin
- Only present for replacement parts; helps secure in basic position
- Do not remove until after installing operating rod -1-
- Bowden cable for door lock
- Removing and installing. See BOWDEN CABLE FOR DOOR LOCK .
