Hood contact switch, removing and installing
>>
Removing
Hood contact switch, removing and installing: Removing
Remove protective sleeve from contact switch.
Loosen the Phillips-head screw (arrow) at the contact switch -1- and remove the contact switch. See
Fig 1
.
Disconnect the harness connector -2-.

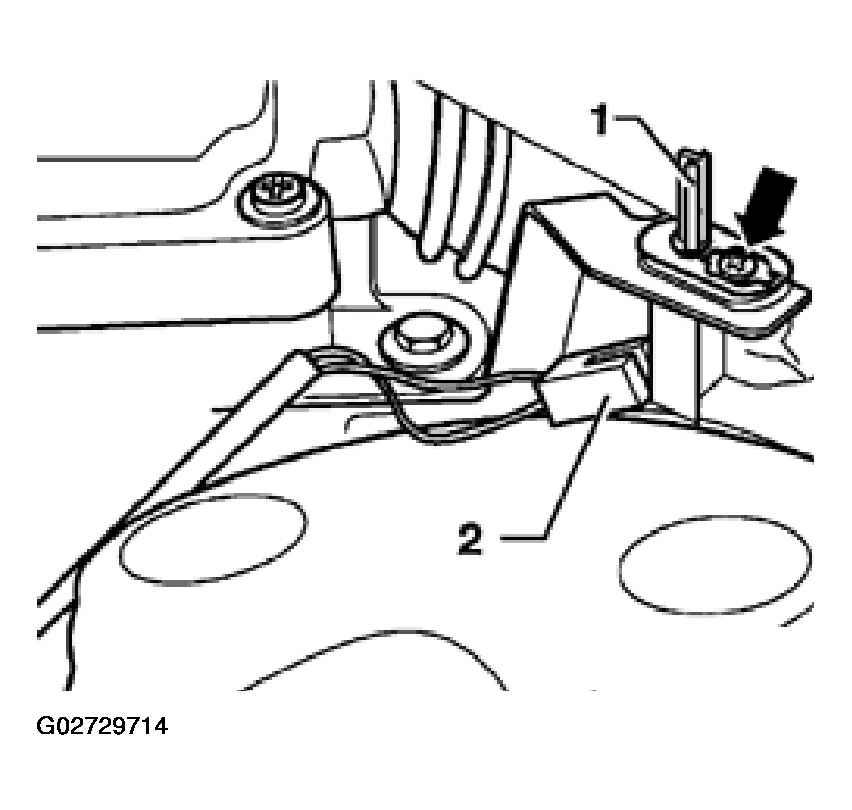

Fig 1: Locating Phillips-Head Screw At Hood Contact Switch
Courtesy of AUDI OF AMERICA, INC.
