Installed position of coupling plate

In order for the central locking system and the anti-theft device to work properly, the partially closed groove on the coupling plate must align with the half tooth on the microswitch wheel.

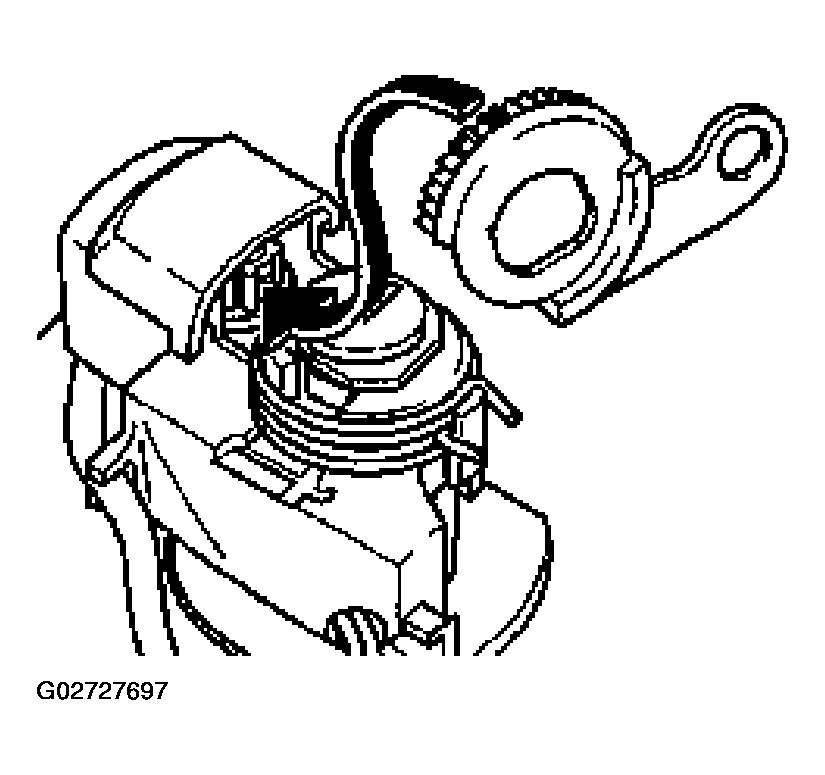

Fig 1: Identifying Installed Position Of Coupling Plate
G02727697Courtesy of AUDI OF AMERICA, INC.
