Door handle, removing
>>
Removing trim
Removing trim
To remove, lift up door handle -2-, push locking mechanism -1- out in lengthwise direction using small screwdriver, and remove trim -3-.

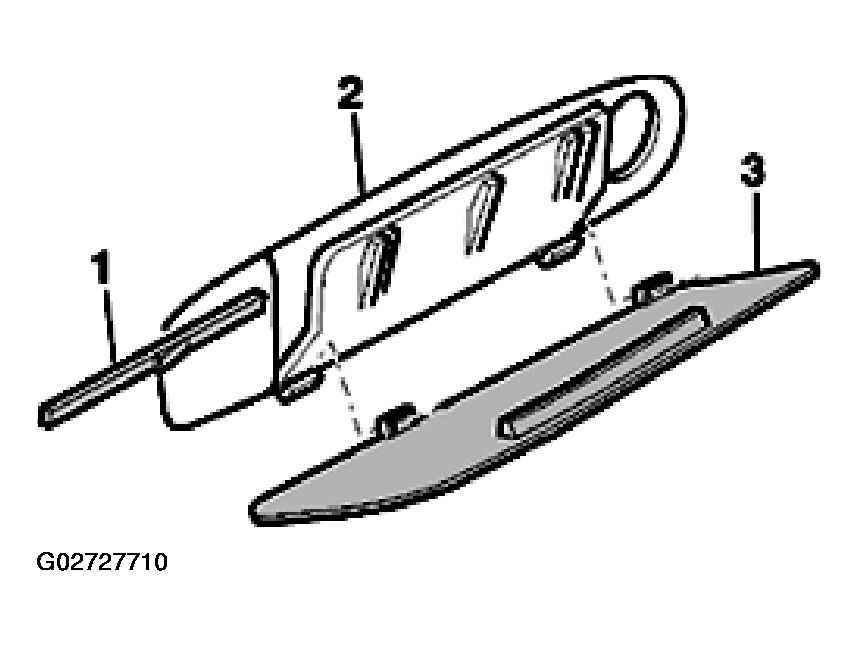

Fig 1: Removing Door Handle Trim
Courtesy of AUDI OF AMERICA, INC.
