Test step 8 - Relay for A/C clutch, actuation of fan
Test step 8 - Relay for A/C clutch, actuation of fan

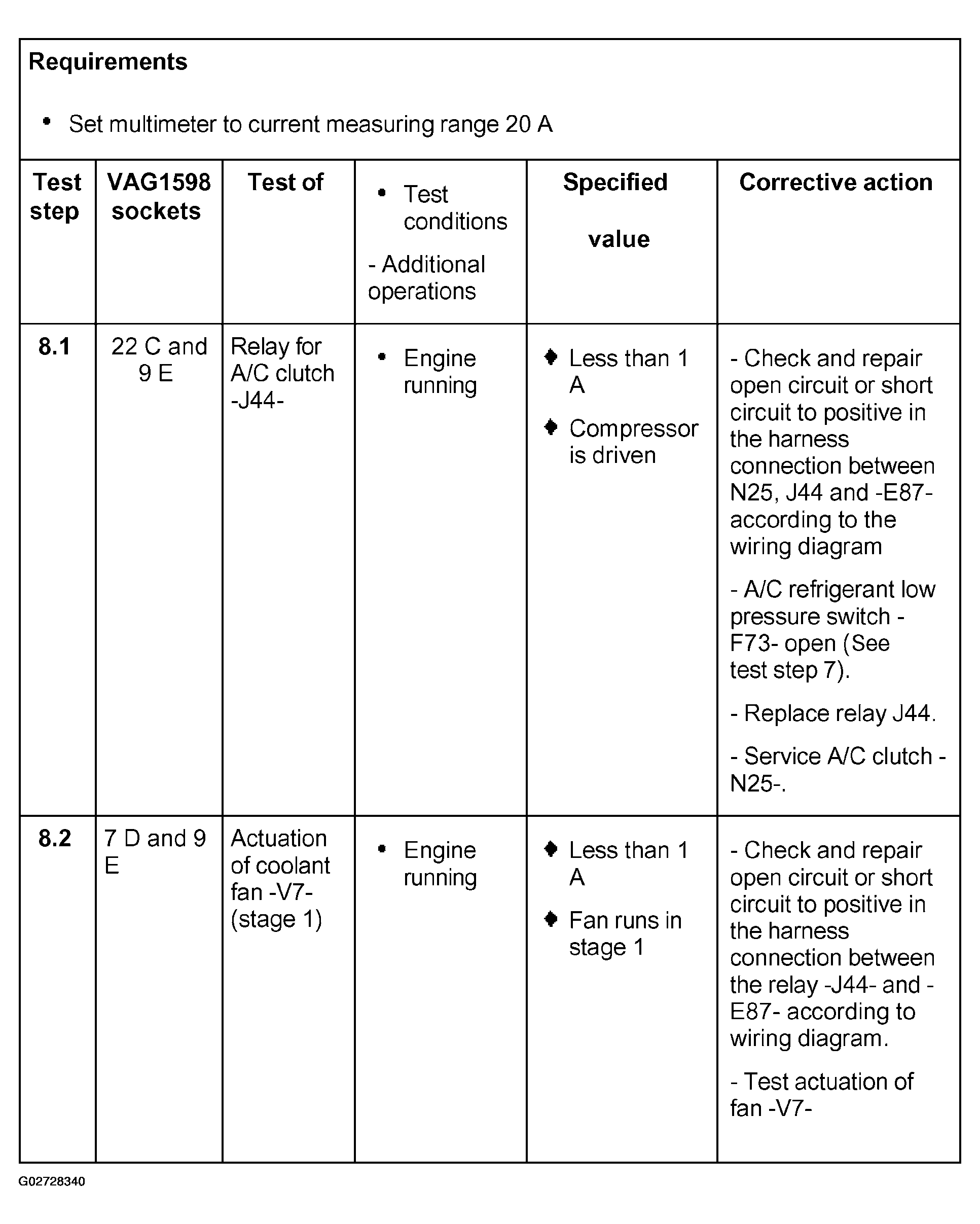

Fig 1: Test Step 8 - Relay For A/C Clutch, Actuation Of Fan
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
