Test step 8 (A/C clutch relay -J44-, activating coolant fan -V7-):

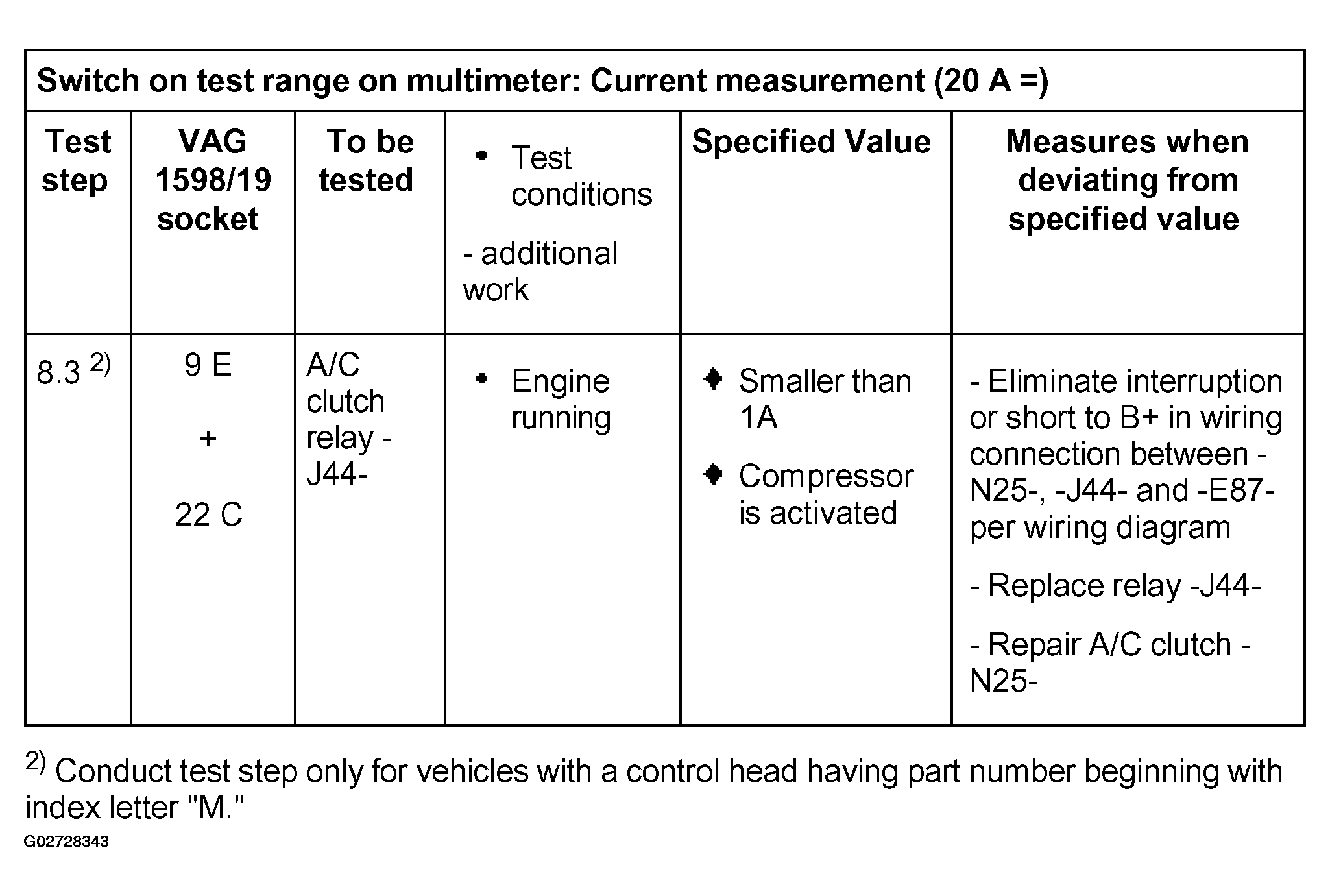

Fig 1: Test Step 8 (A/C Clutch Relay -J44-, Activating Coolant Fan -V7-) - M.Y. 2000 & Up Vehicles

Courtesy of AUDI OF AMERICA, INC.

• To repair A/C clutch -N25-, see A/C CLUTCH, SERVICING .
