Automatic Climate Control System, electrical tests
>>
Test step 1 - Temperature sensors
>>
Resistance levels of temperature sensors dependent on ambient temperature in k ohm (kilo-ohms)
Resistance levels of temperature sensors dependent on ambient temperature in k ohm (kilo-ohms)

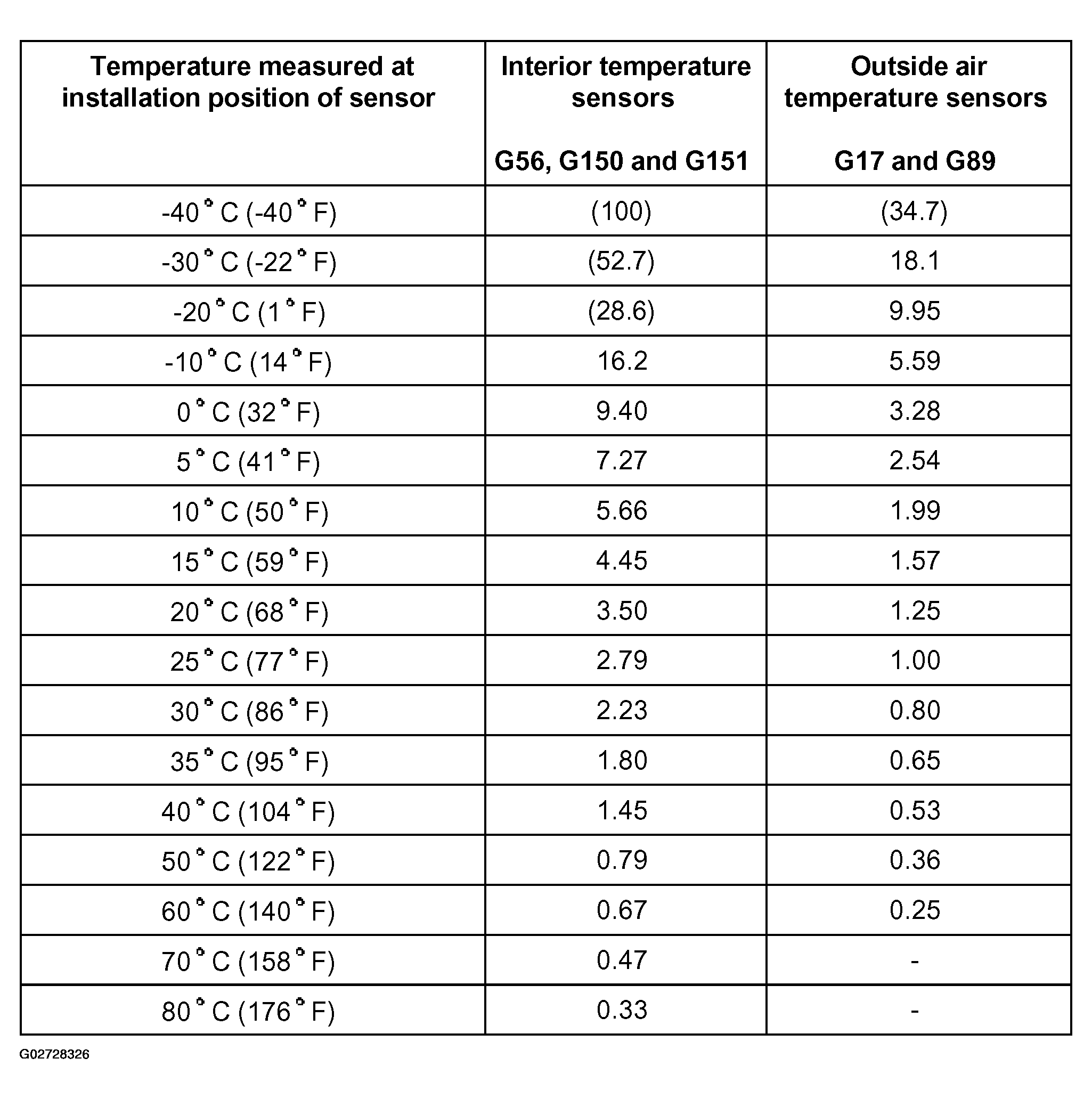

Fig 1: Temperature Sensors Measured Temperature Chart
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
