Display group 022: Allocation ignition key and signal for "time ignition off"

NOTE: Display group "022" only available with control head having part number beginning with index letter "M."

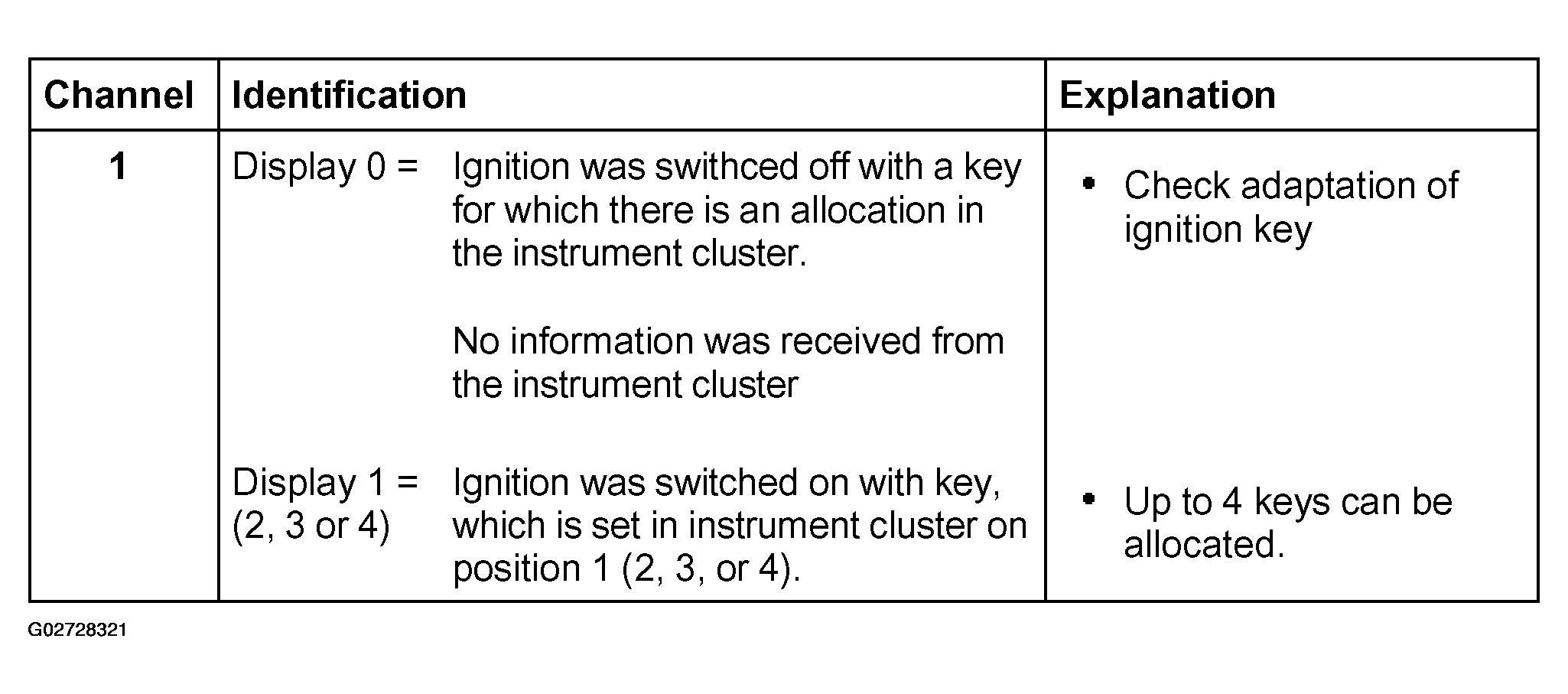

Fig 1: Channel Identification Chart - Display Group 022, Channel 1 (Model Year 2000 And Up Vehicles)

Courtesy of AUDI OF AMERICA, INC.

NOTE: Notes to display field 1:

When the ignition is switched on, -E87- begins with the setting valid for the key used the last time ignition was shut off (temperature, air distribution, fresh air glower speed).
Allocation of ignition key is conducted by the Bus system on -E87-. If the instrument cluster can not supply requested information due to a component malfunction, a malfunction notice with data gram is sent which requires the DTC memory to be checked. See ON BOARD DIAGNOSTIC (OBD) .
Reception of information from instrument cluster is indicated in measuring value block display group 012. See DISPLAY GROUP 012: INFORMATION ON CAN-BUS FOR CONTROL HEAD HAVING PART NUMBERS BEGINNING WITH THE INDEX LETTER "M" .

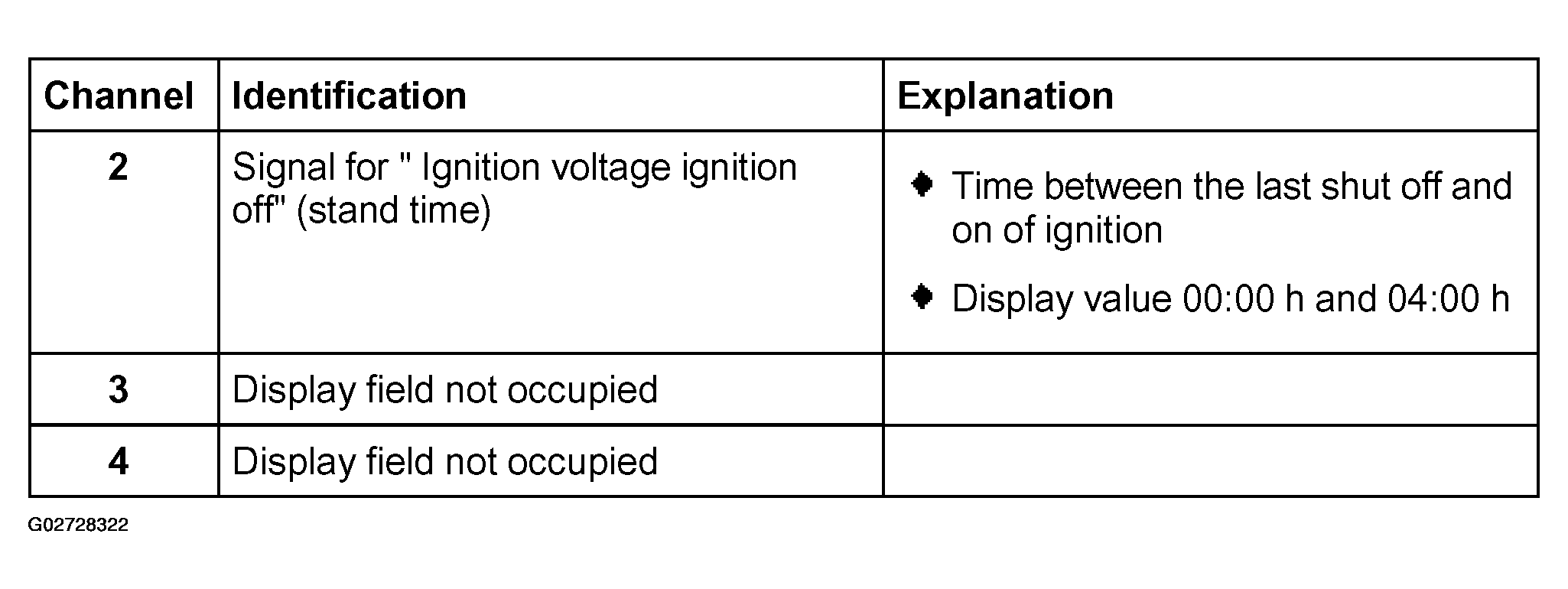

Fig 2: Channel Identification Chart - Display Group 022, Channels 2, 3 & 4 (Model Year 2000 And Up Vehicles)

Courtesy of AUDI OF AMERICA, INC.

NOTE: Notes to display field 2:

If when switching on the ignition, no signal for "time ignition off" is recognized by -E87- (sent by instrument cluster), -E87- will shut off over a standing time of 4 hours and engine temperature becomes the ambient temperature.
Stand time is determined by Can-Bus to -E87-. If the instrument cluster can not supply requested information due to a component malfunction, a malfunction notice with data gram is sent which requires the DTC memory be checked. See ON BOARD DIAGNOSTIC (OBD) .
Reception of information from instrument cluster is indicated in measuring value block display group 012. See DISPLAY GROUP 012: INFORMATION ON CAN-BUS FOR CONTROL HEAD HAVING PART NUMBERS BEGINNING WITH THE INDEX LETTER "M" .
