Display group 019-Coolant pump -V50-, left heat regulating valve -N175- and right heat regulating valve -N176-

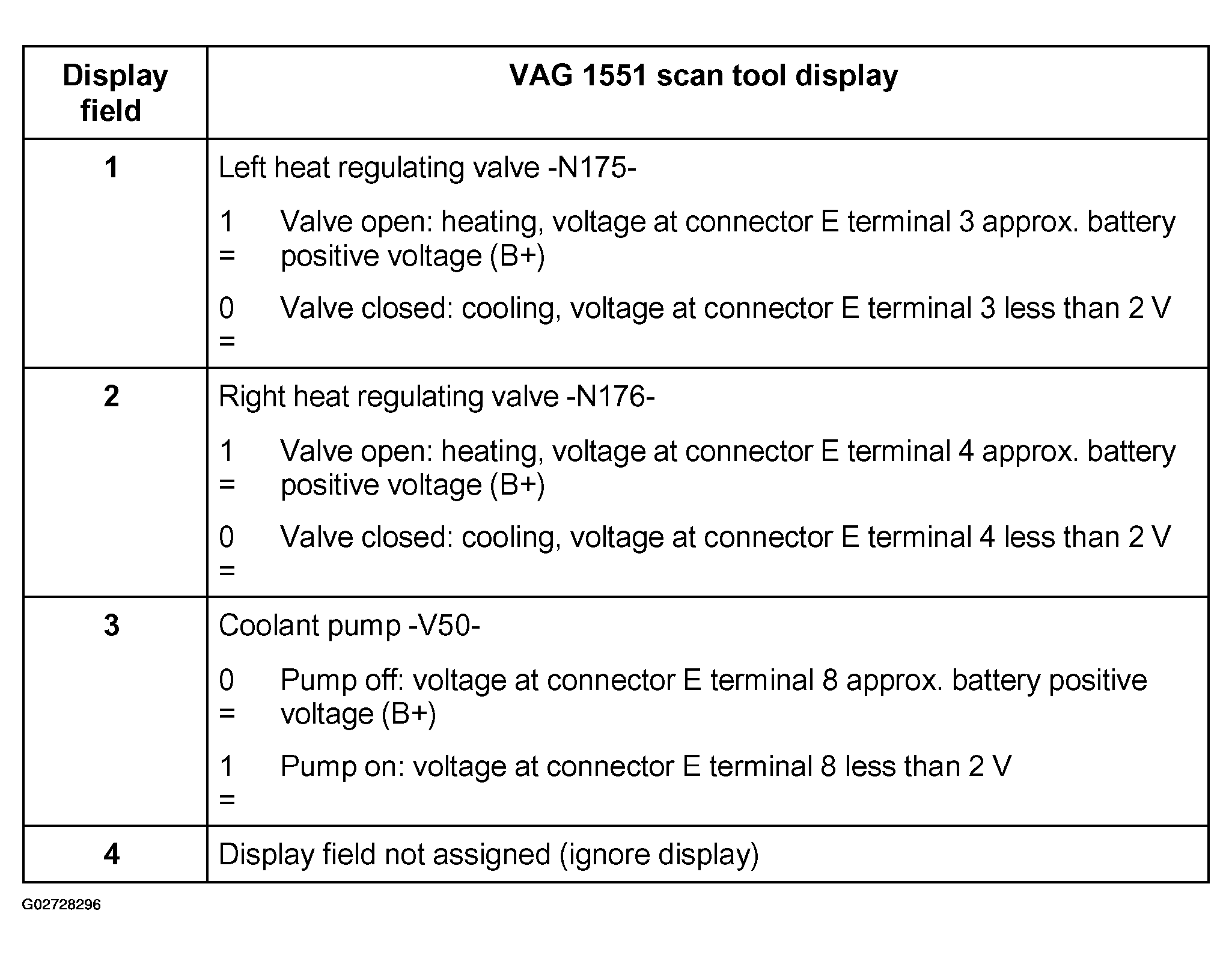

Fig 1: VAG 1551 Scan Tool Display - Display Group 019

Courtesy of AUDI OF AMERICA, INC.

NOTE: Note to display fields 1 and 2: Pump -V50- is switched off when "Lo" temperature setting is selected for driver and passenger sides.
