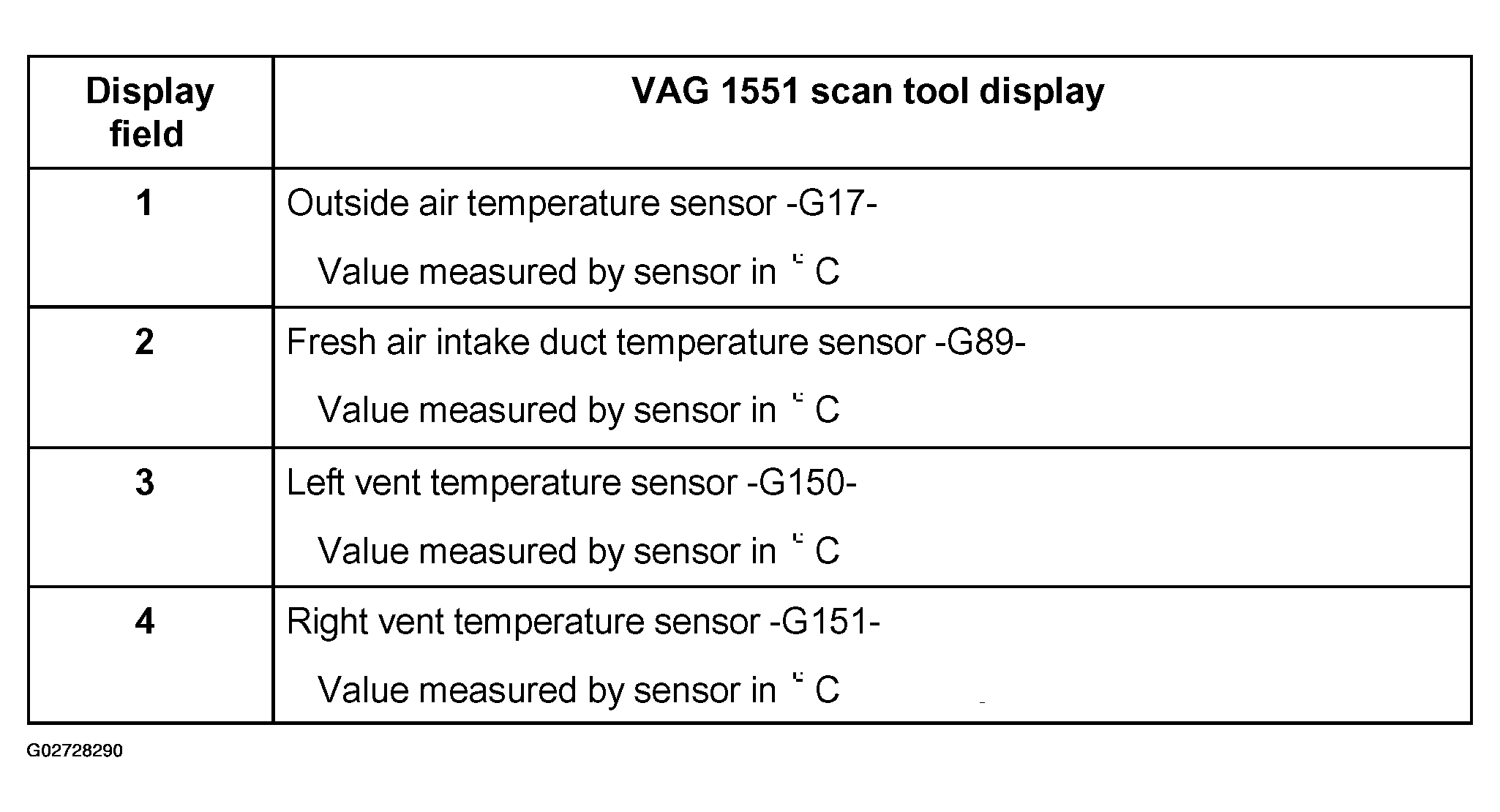

Display group 014-Outside air temperature sensor -G17- and fresh air intake duct temperature sensor -G89-, left vent temperature sensor -G150- and right vent temperature sensor -G151-
NOTE:
The value supplied by a faulty temperature sensor is suppressed by -E87- and an internal computed value is used for further control by -E87- (this value is also displayed).
- To perform electrical test, see AUTOMATIC CLIMATE CONTROL SYSTEM, ELECTRICAL TESTS .
