Display group 013-Left center air vent switch -F183- and right center vent switch -F184-, center vent position sensor -G142- and calculated ambient temperature for outside air temperature display -G106-

• If the readout in display field 3 is not within the permitted range. See AUTOMATIC CLIMATE CONTROL SYSTEM, ELECTRICAL TESTS  . See DIAGNOSTIC TROUBLE CODE (DTC) TABLE  .
• Basis for the display in display field 4 is the lower of the two measured ambient temperatures (. See Display group 014). The temperature remains stored for up to 4 hours after switching ignition off.

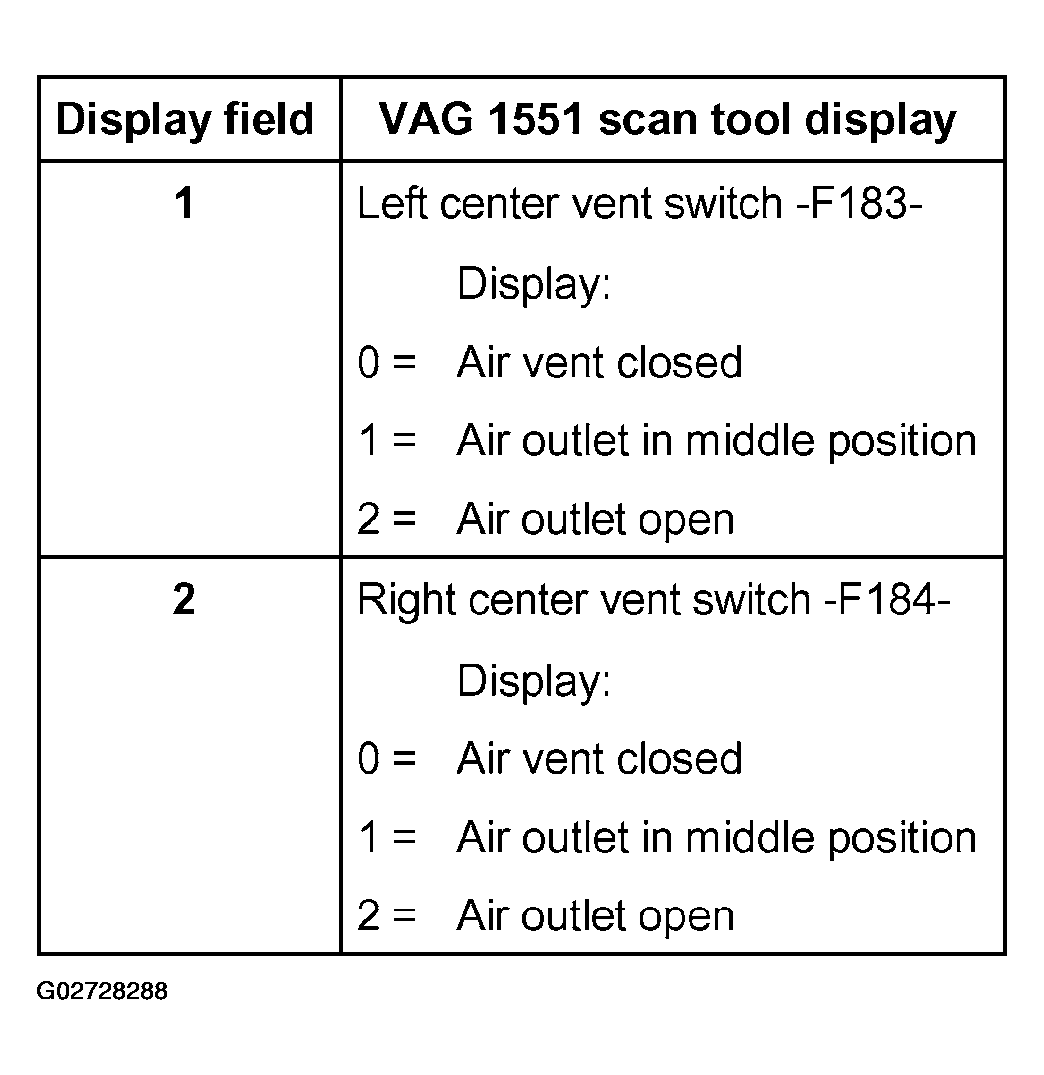

Fig 1: VAG 1551 Scan Tool Display - Display Group 013, Fields 1 & 2

Courtesy of AUDI OF AMERICA, INC.

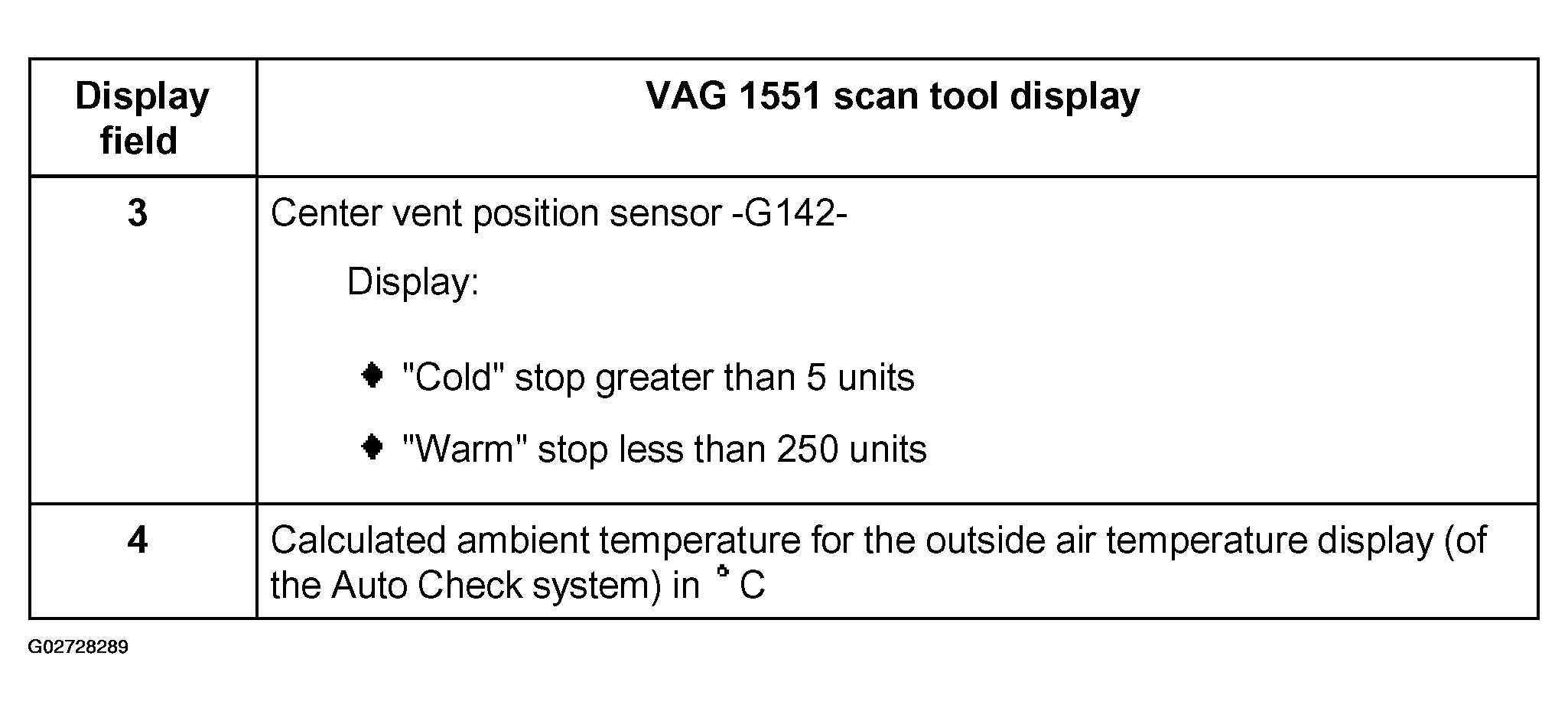

Fig 2: VAG 1551 Scan Tool Display - Display Group 013, Fields 3 & 4

Courtesy of AUDI OF AMERICA, INC.
