Display group 013: Switch for jet center left -F183- and right -F184-, center vent position sensor -G142- and calculated outside temperature for outside air temperature display -G106-

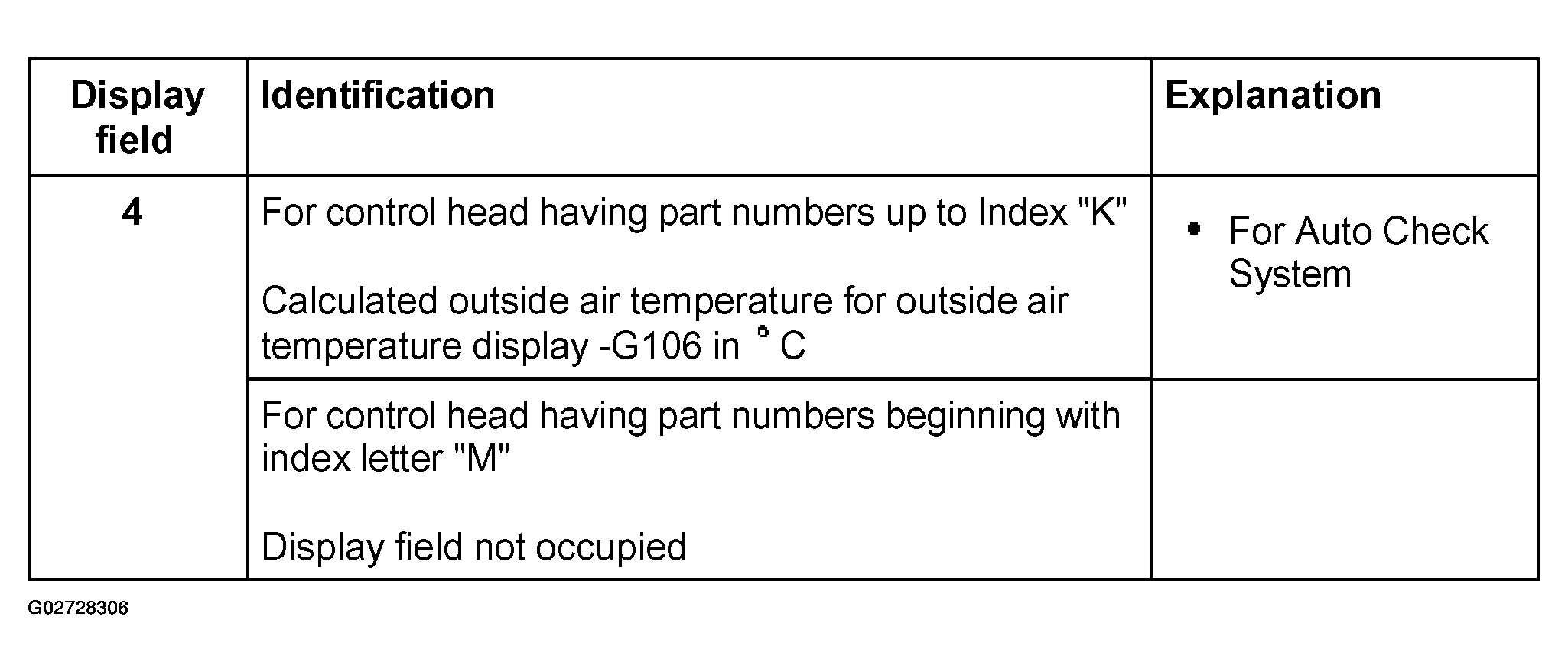

Fig 1: Channel Identification Chart - Display Group 013 (Model Year 2000 And Up Vehicles)

Courtesy of AUDI OF AMERICA, INC.

NOTE: Notes to display field 4:

• For control head having part number up to Index "K," the basis for the display in display field 4 is the lower of the two measured outside temperatures. See DISPLAY GROUP 014: OUTSIDE AIR TEMPERATURE SENSOR -G17-, OUTSIDE TEMPERATURE FROM INSTRUMENT CLUSTER, FRESH AIR INTAKE DUCT TEMPERATURE SENSOR -G89-, LEFT VENT TEMPERATURE SENSOR -G150-, AND RIGHT -G151-  . After switching off the ignition the value remains stored up to 4 hours.
• For vehicles with a control head having part number beginning with index "M" outside temperature is calculated by instrument cluster, and the data exchange between control modules occurs via Can-Bus.
