Wire routing for electric lumbar adjustment and electric headrest, adjustment

NOTE: Illustration depicts cable routing on left side (viewed from front); the right side is a mirror image.
NOTE: The following list refers to Fig 1.
  1. Wiring harness, electric lumbar adjustment
  2. Side airbag module
  3. Shaft for lumbar height adjustment
  4. Motors, electric lumbar adjustment
  5. Motor, electric headrest adjustment
  6. Shaft for headrest adjustment
  7. Relay carrier, electric headrest adjustment
  8. Wiring harness, electric headrest adjustment
  9. Cable ties

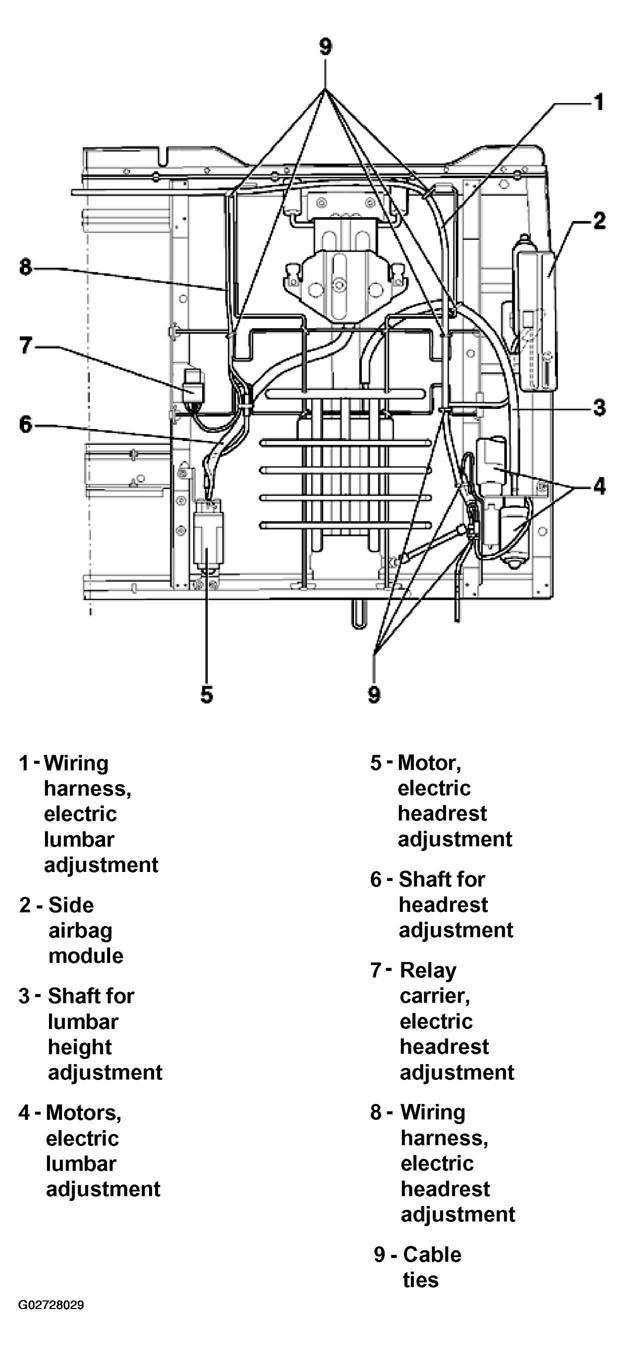

    10. Fig 1: Identifying Wire Routing For Electric Lumbar Adjustment And Electric Headrest Adjustment - Rear Seat
    G02728029Courtesy of AUDI OF AMERICA, INC.
