Rear seatback, removing and installing: Removing: All:

Remove bolts -3- (8 Nm/71 in.lb.).
Raise rear seatback -2- up and remove brackets -1-.

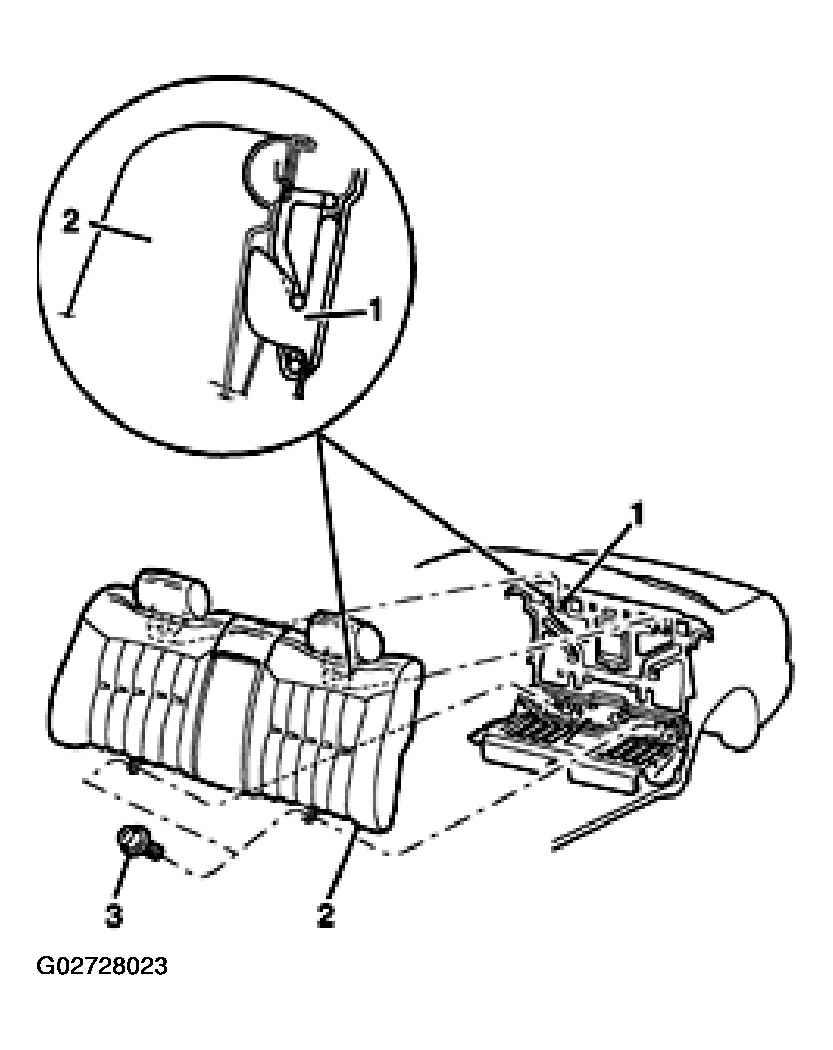

Fig 1: Removing Bolts, Raising Seatback Up & Removing Brackets

G02728023

Courtesy of AUDI OF AMERICA, INC.

Disconnect connectors.
NOTE: Headrest must not be removed from rear seatback.
