Rear seat bench, removing and installing
>>
Removing
Rear seat bench, removing and installing: Removing
Remove two screws -1- (8 Nm/71 in.lb.).
Rear seat bench -2- raised slightly and removed from the front.

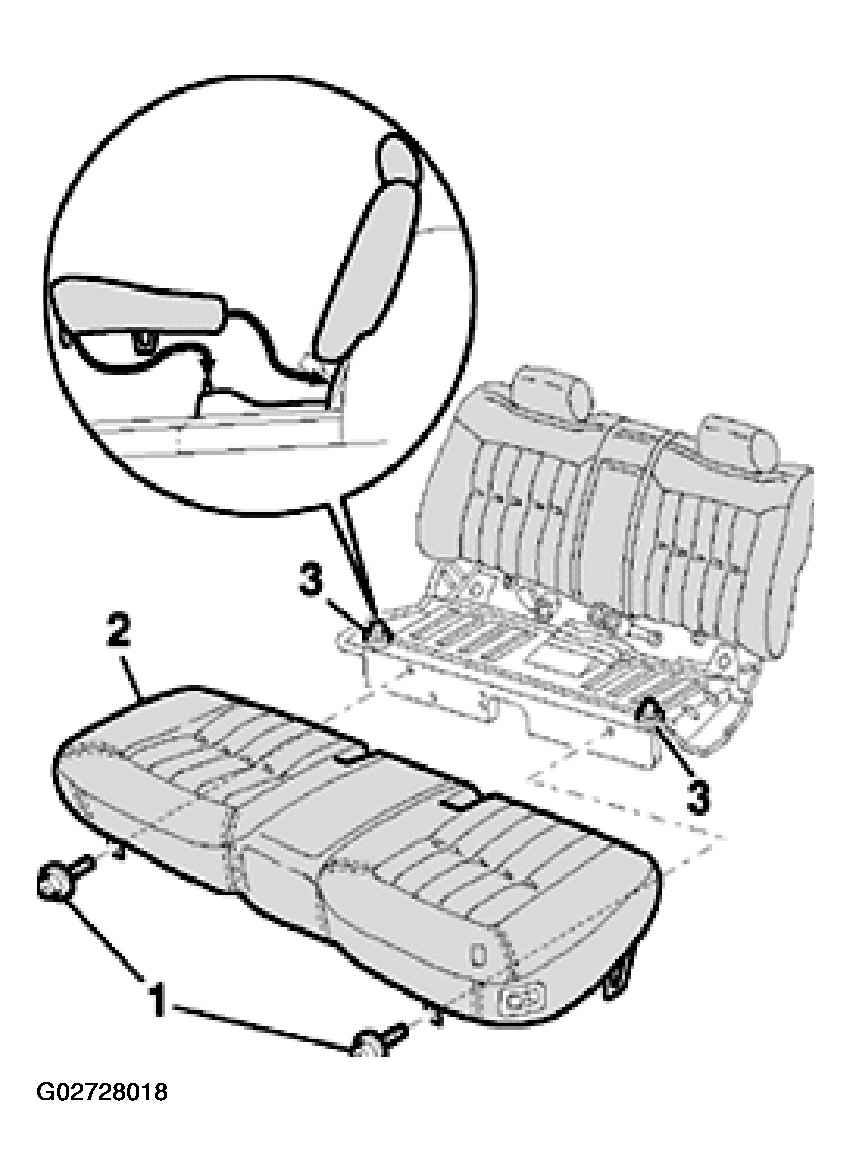

Fig 1: Removing Screws & Rear Seat Bench
Courtesy of AUDI OF AMERICA, INC.
Disconnect connectors.
