Motors for lumbar adjustment, removing and installing

NOTE: The following list refers to Fig 1.
  1. Motor for vertical lumbar adjustment
    • Remove back rest. See REAR SEATBACK, REMOVING AND INSTALLING .
    • Remove upholstery from rear seatback.
    • Disconnect harness connector -4-.
    • Remove nuts -3-.
    • Remove spring clip to hinge -7- from transmission -6-.
    • Remove spring clip at lumbar adjustment unit from shaft -2- and remove shaft from lumbar adjustment unit.
    • Disconnect motor for vertical lumbar adjustment -1- from bracket.
  2. Shaft for lumbar height adjustment
  3. Nut
    • 3x
      • Tightening torque 2 Nm.
  4. Harness connector
  5. Motor for lumbar height adjustment
    • Remove back rest. See REAR SEATBACK, REMOVING AND INSTALLING .
    • Remove upholstery from rear seatback.
    • Disconnect harness connector -4-.
    • Remove nuts -3-.
    • Remove spring clip to hinge -7- from transmission -6-.
    • Remove spring clip at lumbar adjustment unit from shaft -2- and remove shaft from lumbar adjustment unit.
    • Disconnect motor for lumbar height adjustment -5- from bracket.
  6. Transmission for lumbar height adjustment
  7. Driveshaft
  8. Rear seatback frame
  9. Edge protection
  10. Rubber buffer
    • 3x
  11. Bolts
    • 3x
    • Tightening torque: 2 Nm
  12. Washers
    • 3x

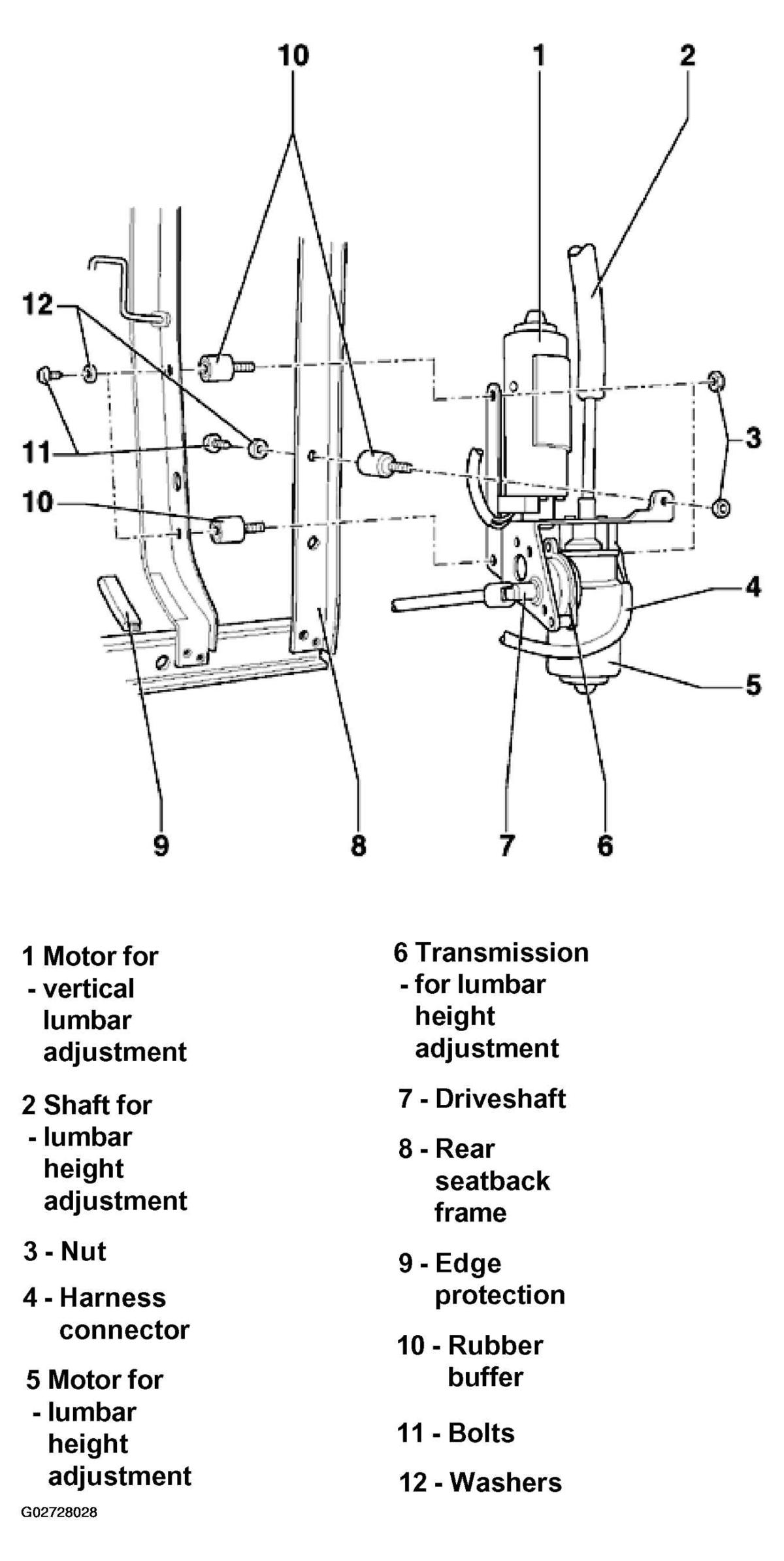

    13. Fig 1: Identifying Motors For Lumbar Adjustment Components - Rear Seat
    G02728028Courtesy of AUDI OF AMERICA, INC.
