Armrest for rear seatback with third headrest, removing and installing
Armrest for rear seatback with third headrest, removing and installing
Remove rear seatback. See
REAR SEATBACK, REMOVING AND INSTALLING
.
Remove bolts -2- (4x).
Center armrest and headrest are a unit.

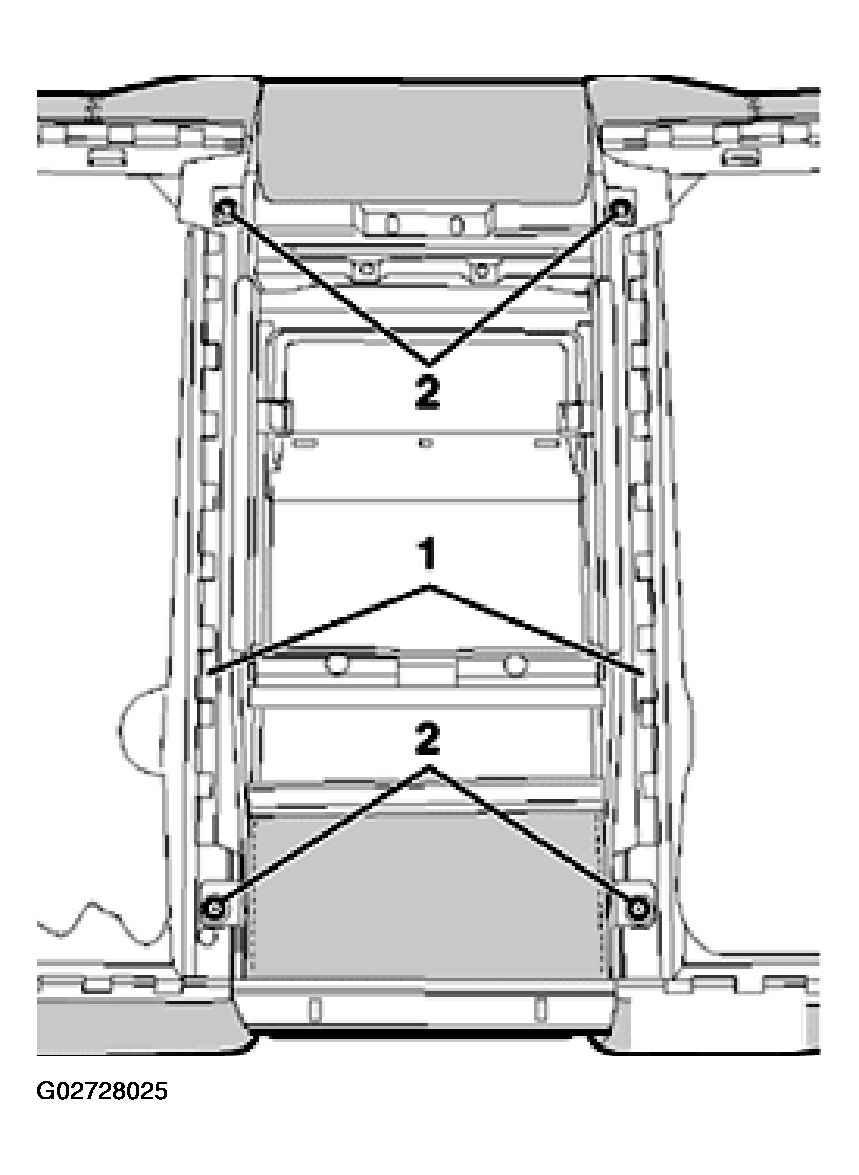

Fig 1: Removing Bolts On Armrest For Rear Seatback With Third Headrest
Courtesy of AUDI OF AMERICA, INC.
