Seat heating connectors, installed position

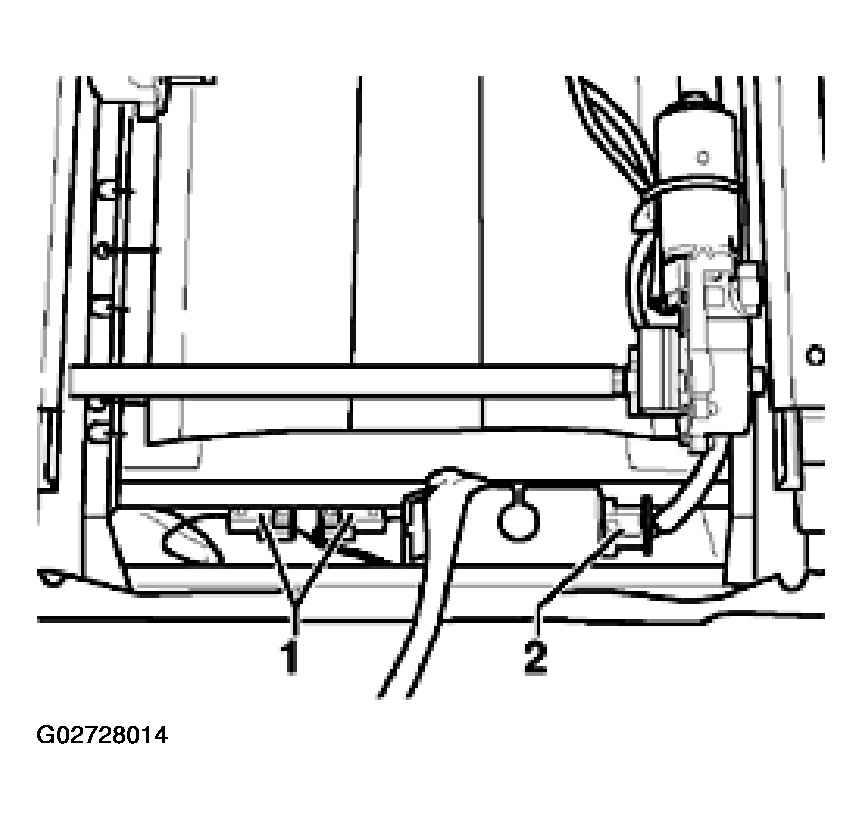

  1. Connectors T1aa and T1ac (driver seat), connectors T1ag and T1ai (passenger seat)
  2. Connectors - T6r (driver seat), connector T6s (passenger seat)
    3. Fig 1: Identifying Connectors T1aa, T1ac, T1ag, T1ai, T6r & T6s (Power Adjustable Sport Seats)
    G02728014Courtesy of AUDI OF AMERICA, INC.

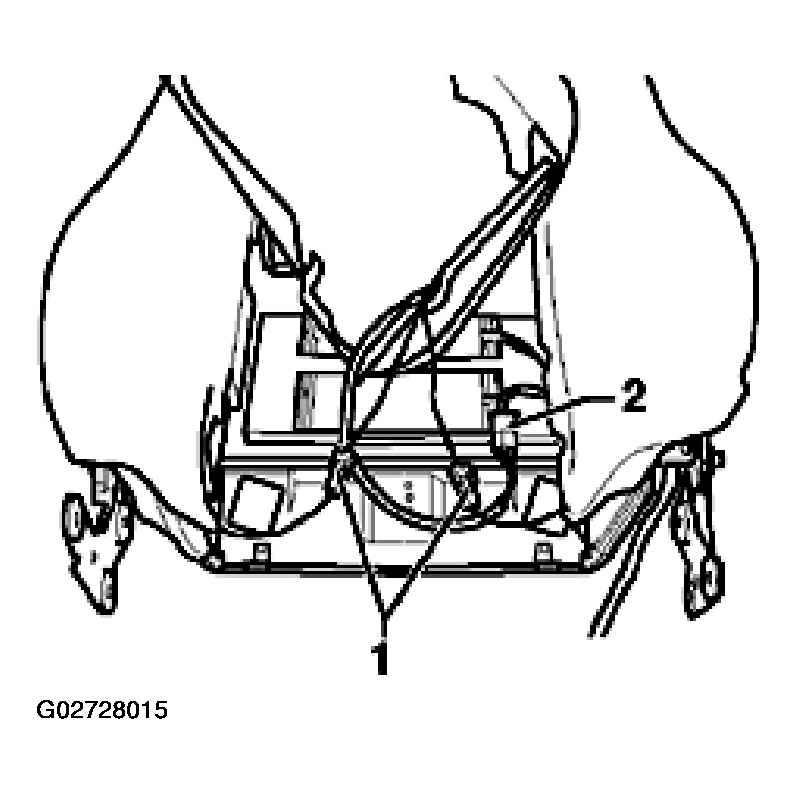

  1. Connectors T1ae and T1af, connectors T1a1 and T1am (passenger seat)
  2. Connectors T3ac (driver seat) connector T6ad (passenger seat)
    NOTE: Illustration shows backside of removed seatback center cushion.
    3. Fig 2: Identifying Connectors T1ae, T1af, T1a1, T1am, T3ac & T6ad (Power Adjustable Sport Seats)
    G02728015Courtesy of AUDI OF AMERICA, INC.

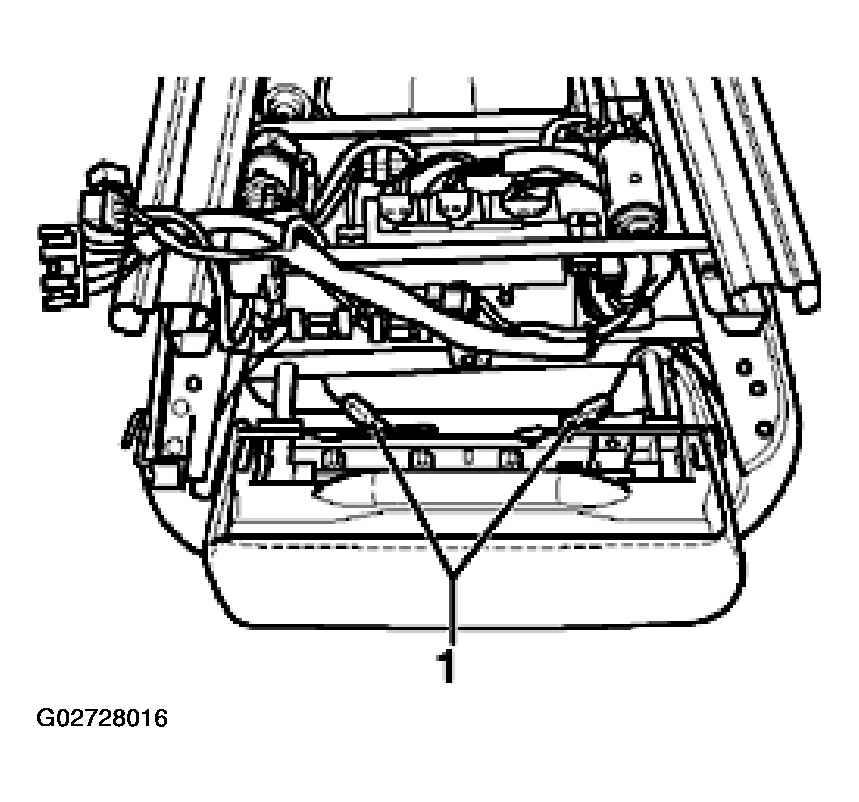

  1. Connectors T1ab and T1ad (driver seat), connectors T1ah and T1ak (passenger seat)
    2. Fig 3: Identifying Connectors T1ab, T1ad, T1ah & T1ak (Power Adjustable Sport Seats)
    G02728016Courtesy of AUDI OF AMERICA, INC.
