Motors and sensor for height and length adjuster, removing and installing: Removing

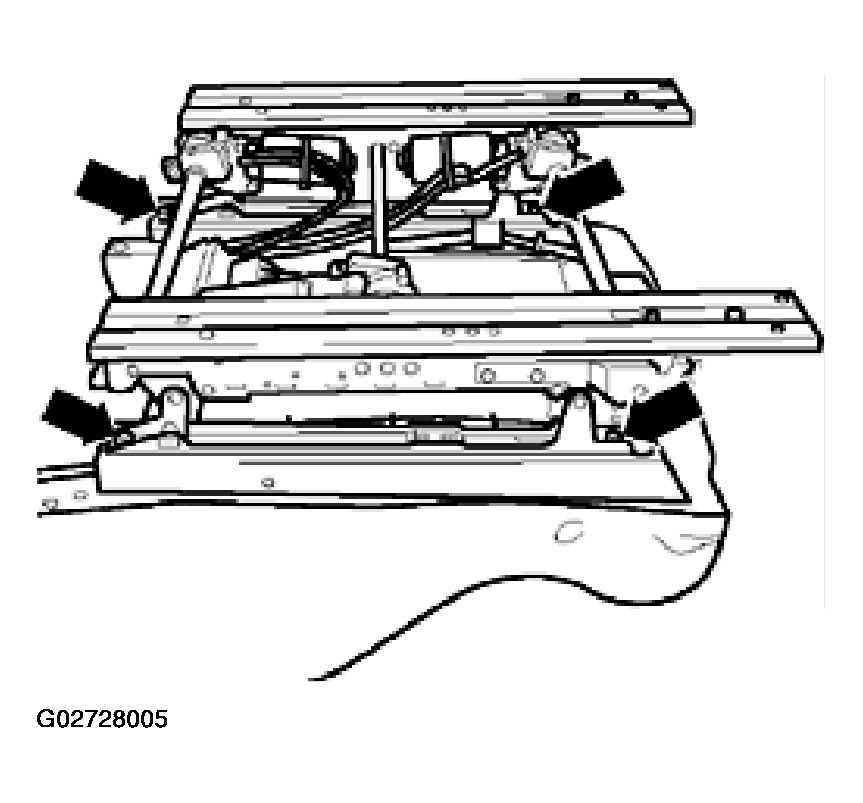

- Remove 4 bolts (arrows) for seat console.
- Unhook console at seat frame.
- Remove nuts -1- and -2- at motors for front height adjuster or rear height adjuster. See Fig 2.
- Cut open cable ties.
- Disconnect connectors.
- Drive out seat rail at side of motor for height adjustment with a plastic hammer (arrows).
- Remove motor for front or rear height adjustment from driveshaft.
- Press sensor for front height adjuster or sender for rear height adjuster from clamp connection.
- Remove motor for length adjustment.
- Disconnect connectors.
- Remove driveshaft and remove motor for length adjustment from driveshaft.
- Press sensor for length adjuster from connection at motor.

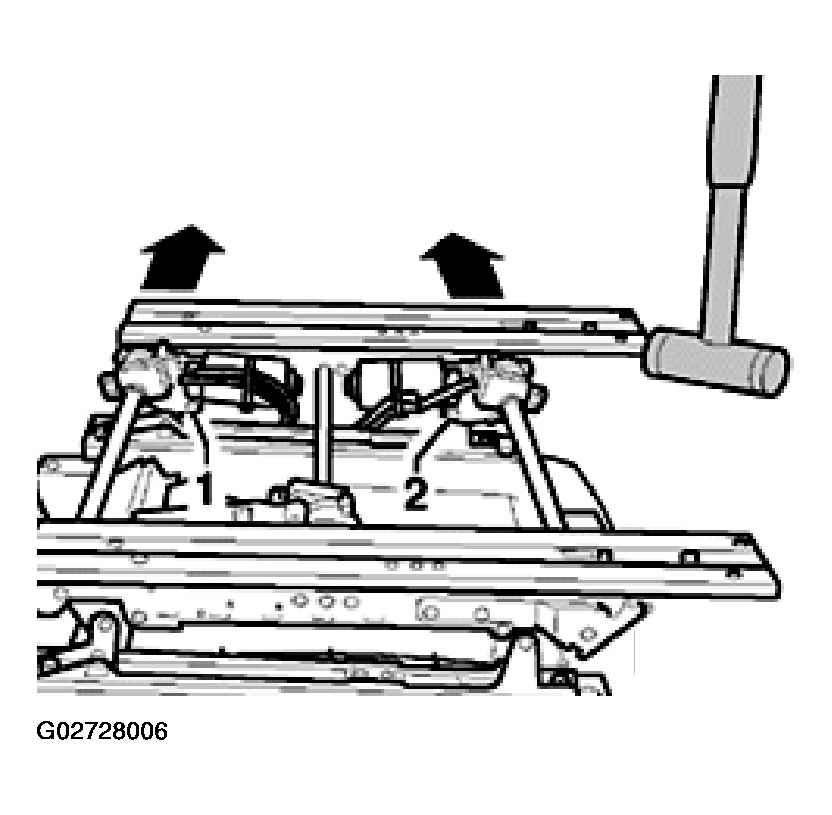

Fig 2: Driving Out Seat Rail At Side Of Motor For Height Adjustment With Plastic Hammer (Power Adjustable Sport Seats)
