Removing
Motor and sensor for seatback, adjustment and installing: Removing
Cut open cable ties.
Remove two bolts -2- and -5- for seatback adjustment. See
Fig 1
.
Disconnect connectors -3- and -4-.
Remove screws -6-.
Unclip sensor for seatback adjuster -1-.

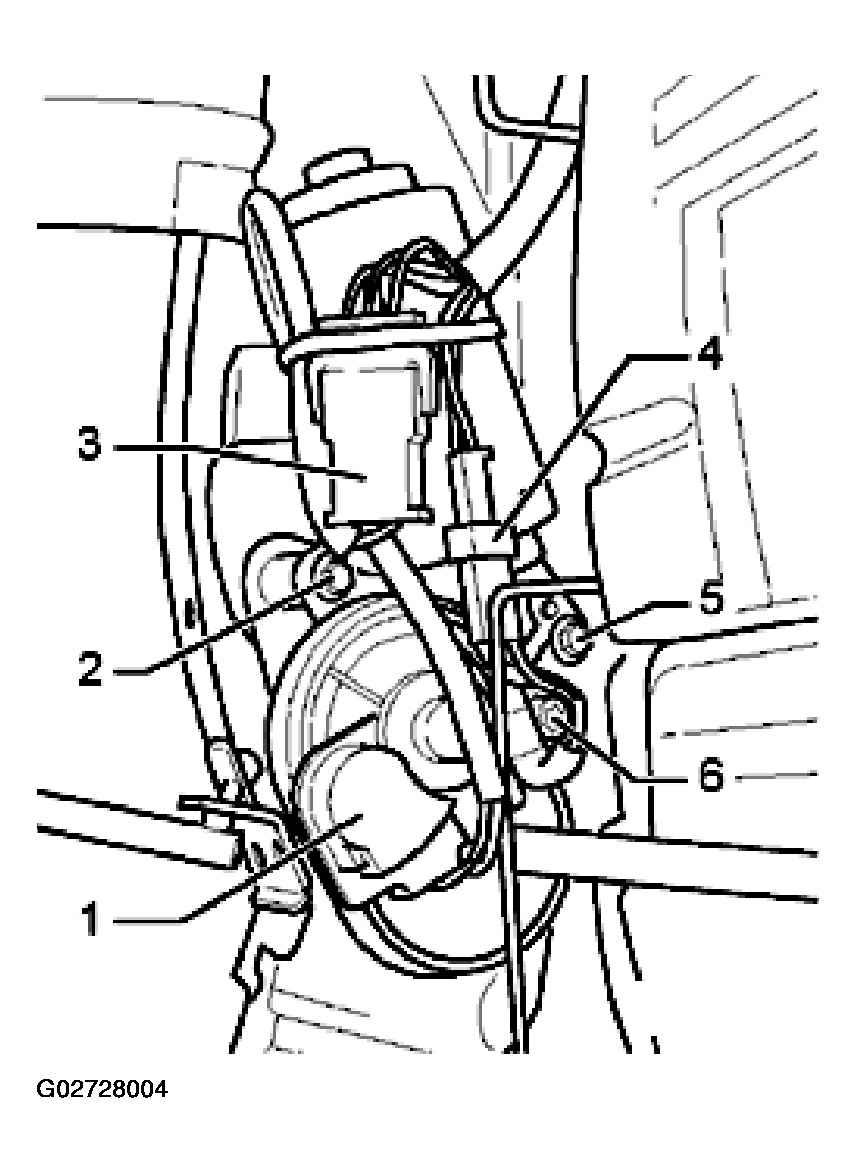

Fig 1: Removing Bolts, Screws, Disconnecting Connectors & Unclipping Sensor For Seatback Adjuster (Power Adjustable Sport Seats)
Courtesy of AUDI OF AMERICA, INC.
