Mechanical seat, moving forward and back

NOTE: If power length adjustment is faulty, seat must be moved forward and back mechanically so seat mounting bolts are accessible.

Move front and rear seat height adjustment to highest position.
Place screwdriver or bore machine with movable shaft and bolt insert to face side of motor for length adjustment and turn in desired direction (arrow).

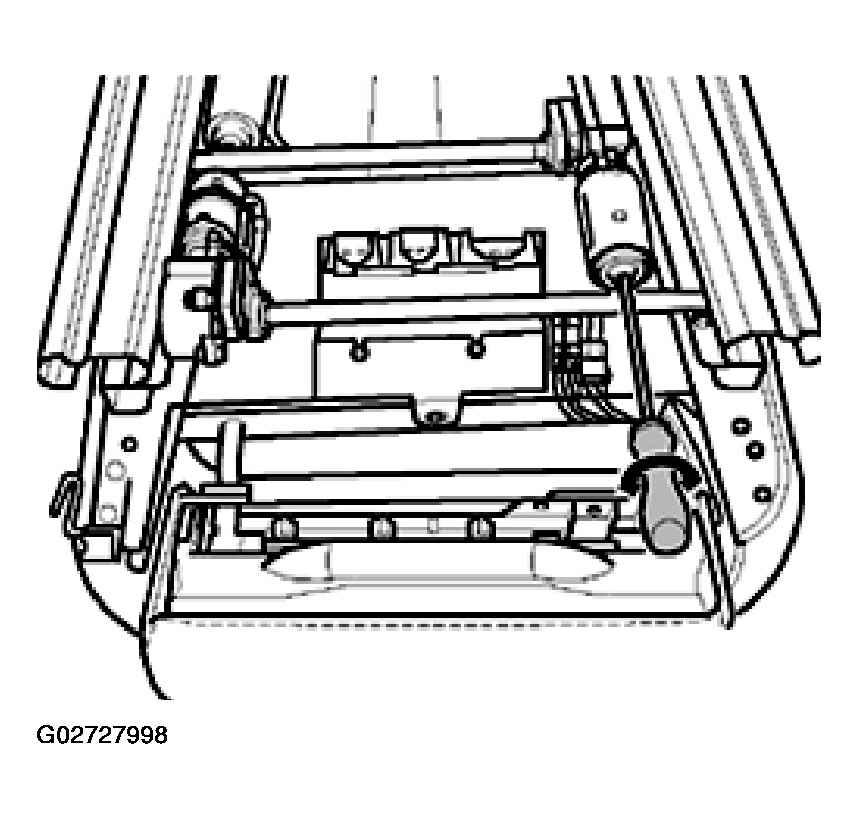

Fig 1: Placing Screwdriver And Inserting Face Side Of Motor For Length Adjustment

Courtesy of AUDI OF AMERICA, INC.

NOTE: Illustration shows seat removed.
