Power seatback adjustment motor, removing and installing

NOTE: The following list refers to Fig 1.
  1. Rear seatback
  2. Motor for left headrest adjustment -V103- and motor for right headrest adjustment -V104-
  3. Pressure switch for lumbar support, drivers side -F224- and pressure switch for lumbar support, passenger side -F225-
  4. Pressure switch for lumbar support, drivers side -F224- and pressure switch for lumbar support, passenger side -F225-
  5. Tie wrap
  6. Connector
  7. Bolt
    • 6 Nm (53 in.lb.)
    • 2 parts
  8. Bowden cable
  9. Tie wrap
  10. Connector
  11. Bolt
    • 6 Nm (53 in.lb.)
    • 2 parts
  12. Bowden cable
  13. Connector
  14. Nut
    • 6 Nm (53 in.lb.)
    • 3 parts
  15. Lock ring
  16. Transfer gear case
  17. Bolt
    • 6 Nm (53 in.lb.)
    • 2 parts

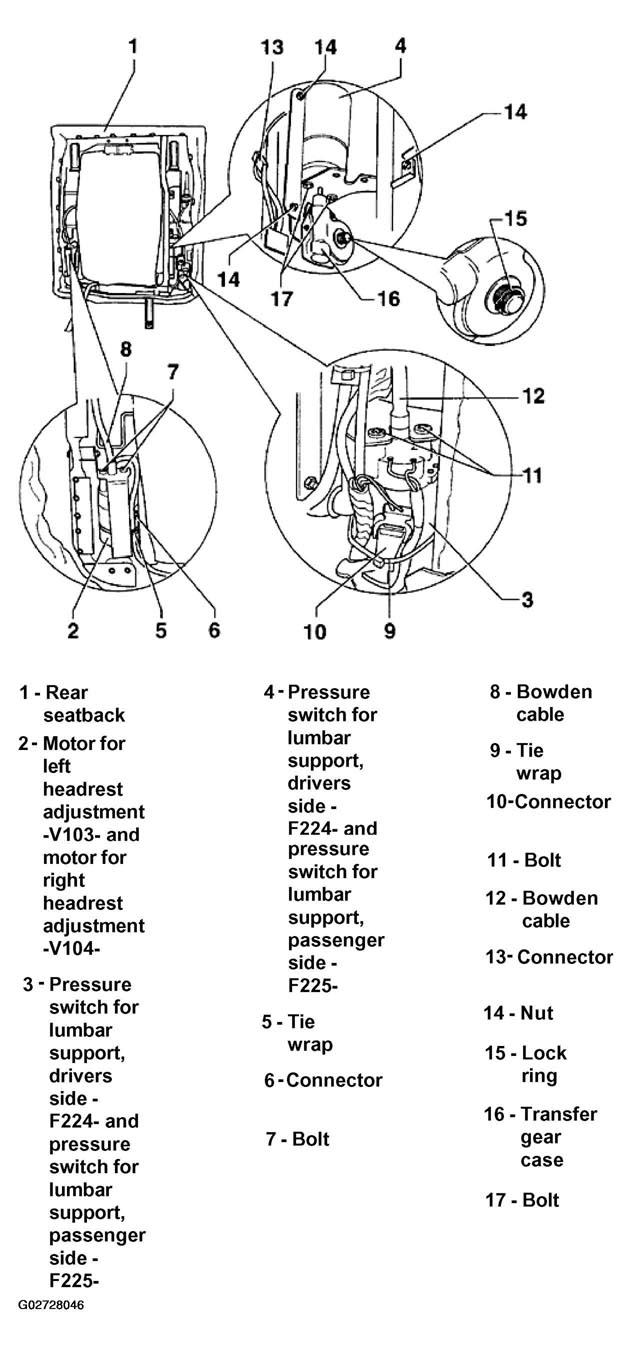

    18. Fig 1: Identifying Power Seatback Adjustment Motor Components (Power Adjustable Individual Rear Seat)
    G02728046Courtesy of AUDI OF AMERICA, INC.
