Power seat, moving forward and back

NOTE: If power length adjustment is faulty, seat must be moved forward mechanically so that seat mounting bolts are accessible.

Nuts -A- for seat are loosened and seat raised. See Fig 1.
If necessary, bolts -B- for seat frame are loosened if nuts-A- are difficult to get to.
Insert bendable shaft -1- or hex socket wrench 3 mm into transmission for length adjustment.
Drive seat forward with bore machine -2-.
1. C - Engine for length adjustment

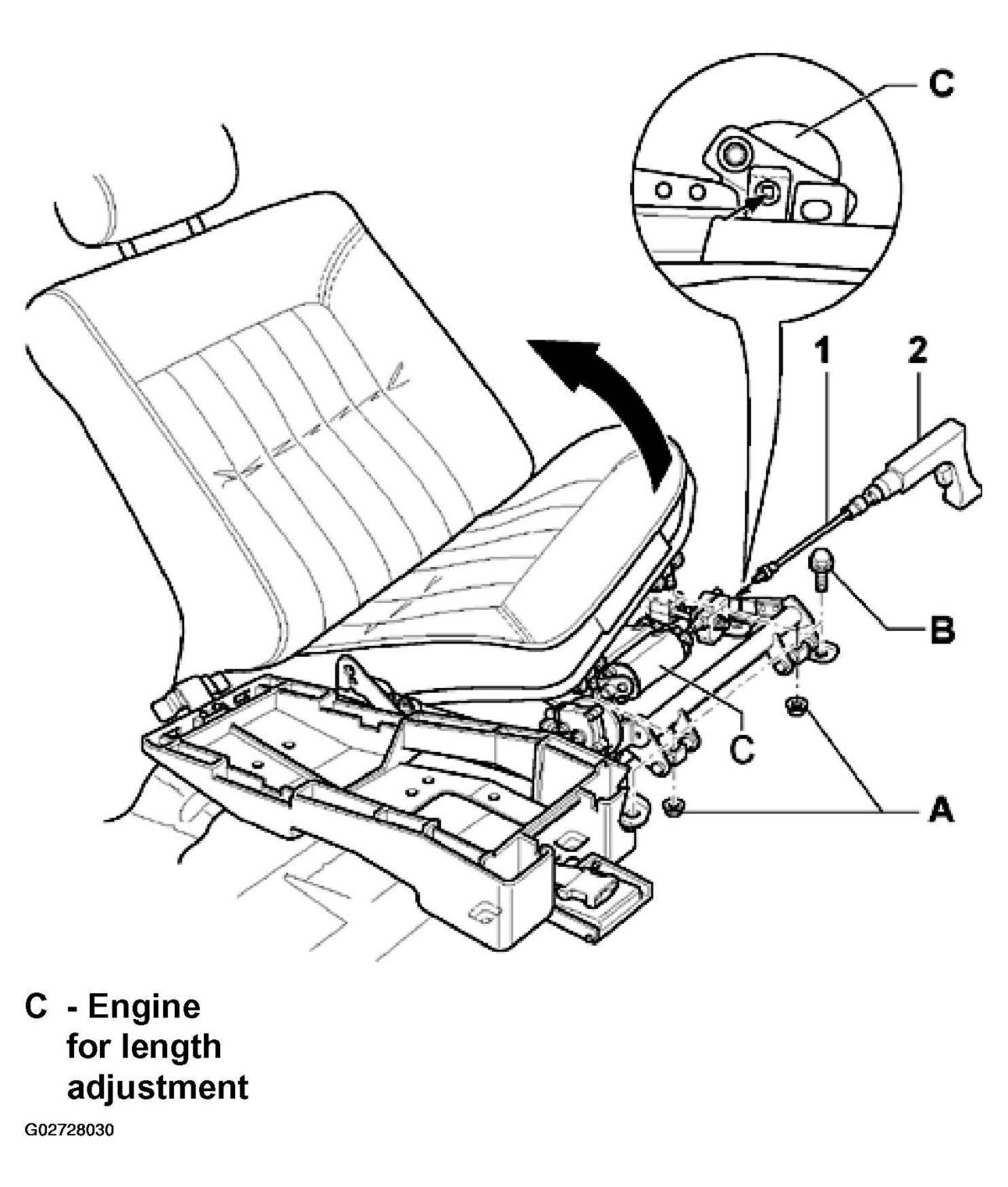

Fig 1: Identifying Engine For Length Adjustment (Power Adjustable Individual Rear Seat)

Courtesy of AUDI OF AMERICA, INC.
