Power motors, assembly overview

NOTE: The following list refers to Fig 1.
  1. Bolt
    • 3.5 Nm (31 in.lb.)
    • 4 parts
  2. Nut
    • 1.7 Nm (15 in.lb.)
  3. Bolt
    • 3.5 Nm (31 in.lb.)
    • 4 parts
  4. Bolt
    • 7.5 Nm (66 in.lb.)
    • 2 parts
  5. Bolt
    • 18 Nm (13 ft.lb.)
    • 2 parts
  6. Bolt
    • 22 Nm (16 ft.lb.)
    • 2 parts
  7. Bolt
    • 50 Nm (37 ft.lb.)
    • 2 parts
  8. Bolt
    • 8 Nm (71 in.lb.)
    • 2 parts
NOTE: The following list refers to Fig 1.
  1. Microswitch for end position, rear
    • 3 bolts
    • 0.7 Nm (6 in.lb.)
  2. Left rear seat height adjusting motor -V89- and right rear seat height adjusting motor -V89-
    • Pull lock shims from drive axis
  3. Left rear seat fore and aft adjusting motor -V87- right rear seat fore and aft and aft adjusting motor -V88-
    • Pull lock shims from drive axis
  4. Lifting frame
  5. Seat frame
  6. Support for center cushion

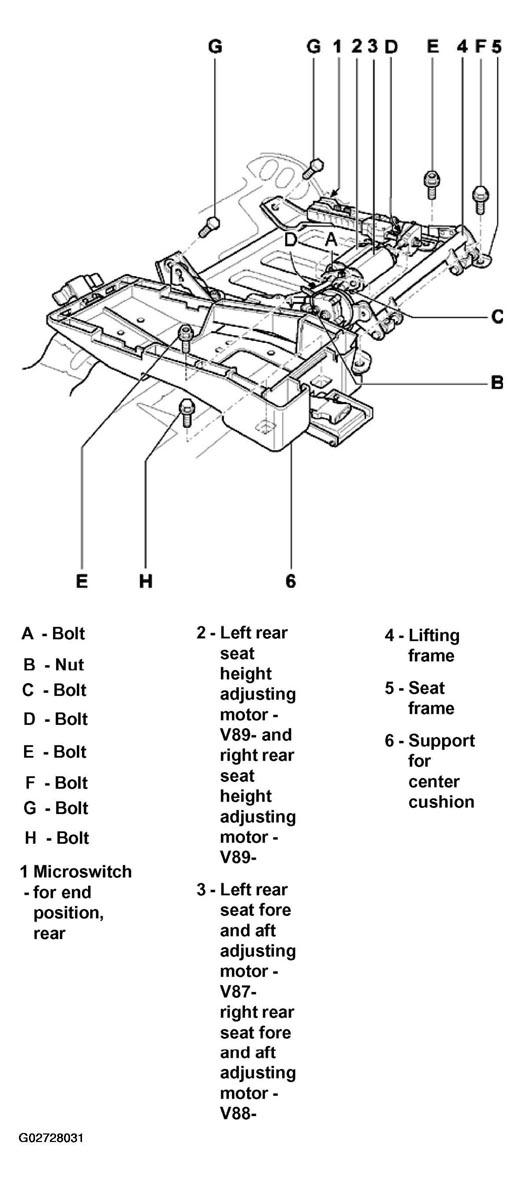

    7. Fig 1: Identifying Power Motors, Assembly Overview (Power Adjustable Individual Rear Seat)
    G02728031Courtesy of AUDI OF AMERICA, INC.
