Electrically adjustable individual seats, removing and installing: Removing: Notes

Fold armrest forward.
Press lock bracket on both sides of armrest in direction or arrow and remove armrest.

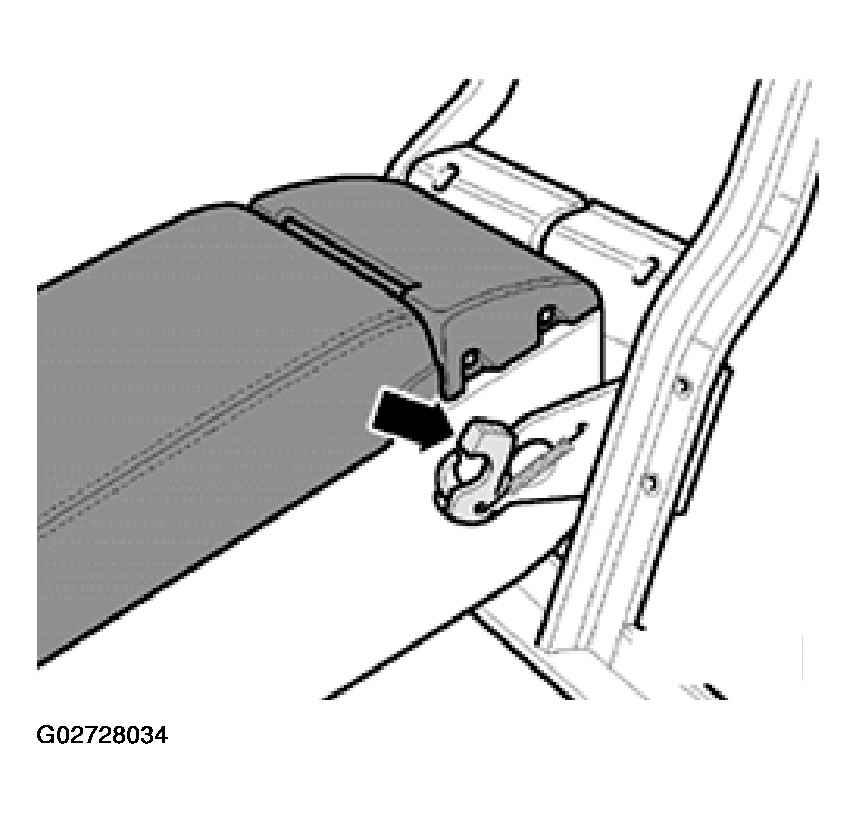

Fig 1: Pressing Lock Bracket On Both Sides Of Armrest (Power Adjustable Individual Rear Seat)

Courtesy of AUDI OF AMERICA, INC.

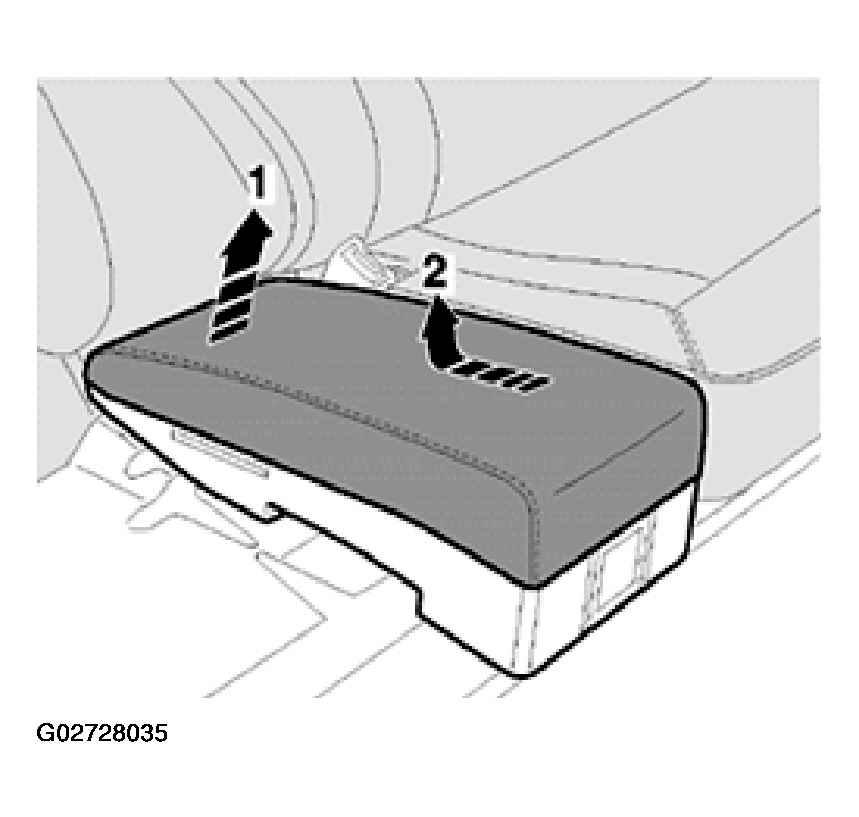

Fig 2: Pulling Center Cushion Upward & Removing (Power Adjustable Individual Rear Seat)

Courtesy of AUDI OF AMERICA, INC.

Remove bolts -2- (50 Nm/37 ft.lb.).
Remove buckle -1- from seatframe.
1. Wire for belt in use (arrow) remains connected.

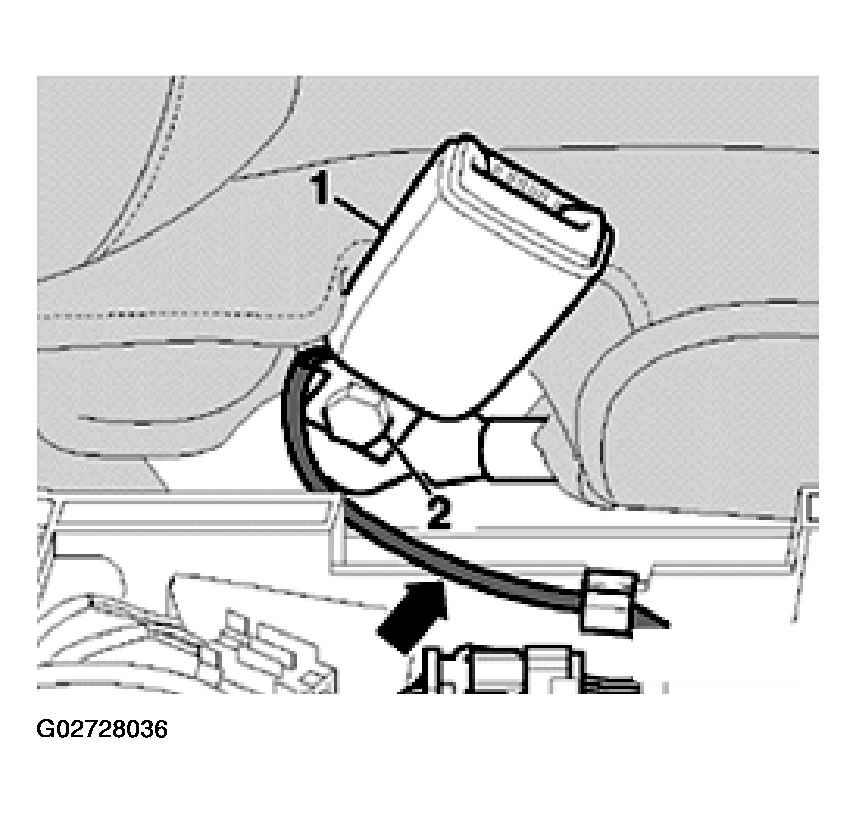

Fig 3: Removing Bolts & Buckle From Seatframe (Power Adjustable Individual Rear Seat)

Courtesy of AUDI OF AMERICA, INC.

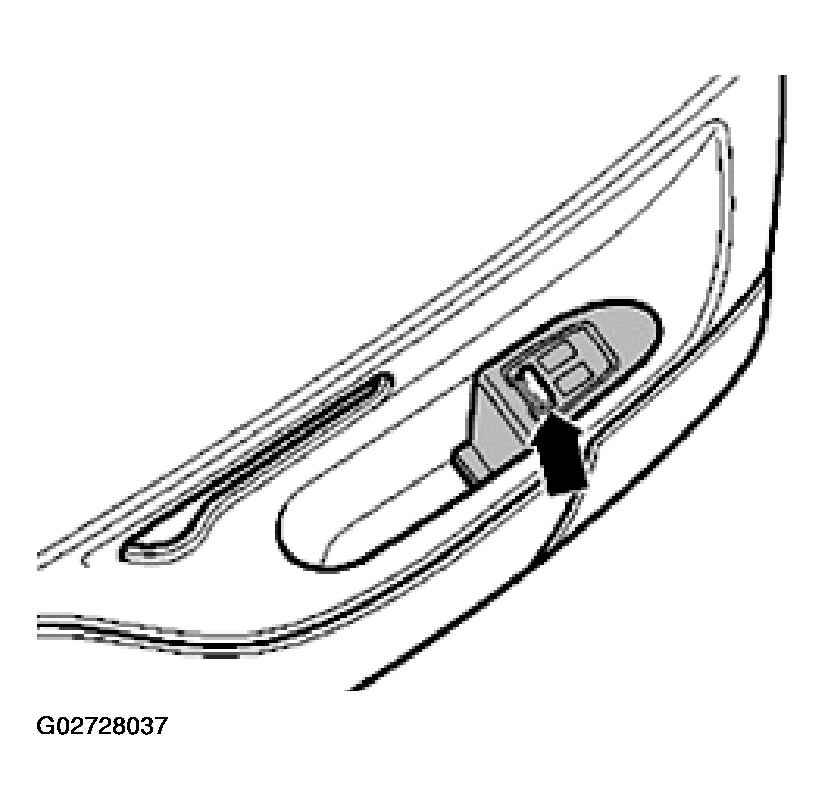

Fig 4: Switching Off Seat Memory At Switch (Power Adjustable Individual Rear Seat)

Courtesy of AUDI OF AMERICA, INC.
