Electrical connectors and relay in support for center cushion

NOTE: The following list refers to Fig 1.
  1. Right heated seatback
    • 2-pin
    • Color: red
  2. Left heated seatback
    • 2-pin
    • Color: green
  3. Buckle right
    • 2 pin
    • Color: red
  4. Buckle left
    • 2-pin
    • Color: green
  5. Seat heater
    • for right rear seat
    • 4-pin
    • Color: red
  6. Seat heater
    • For left rear seat
    • 4-pin
    • Color: green
  7. Right rear seat height adjusting motor -V90-
    • 2-pin
    • Color: red
  8. Left rear seat height adjusting motor -V89-
    • 2-pin
    • Color: black
  9. Supply voltage
    • for right rear seat
    • 6-pin
    • Color: red
  10. Supply voltage
    • for left rear seat
    • 6-pin
    • Color: green
  11. Right rear seat fore and aft adjusting motor -V88-
    • 2-pin
    • Color: blue
  12. Left rear seat fore and aft adjusting motor -V87-
    • 2-pin
    • Color: green
  13. Relay for right headrest lowering
  14. Relay for left headrest lowering
  15. Relay for automatic seatback adjustment right
  16. Relay for automatic seatback adjustment left

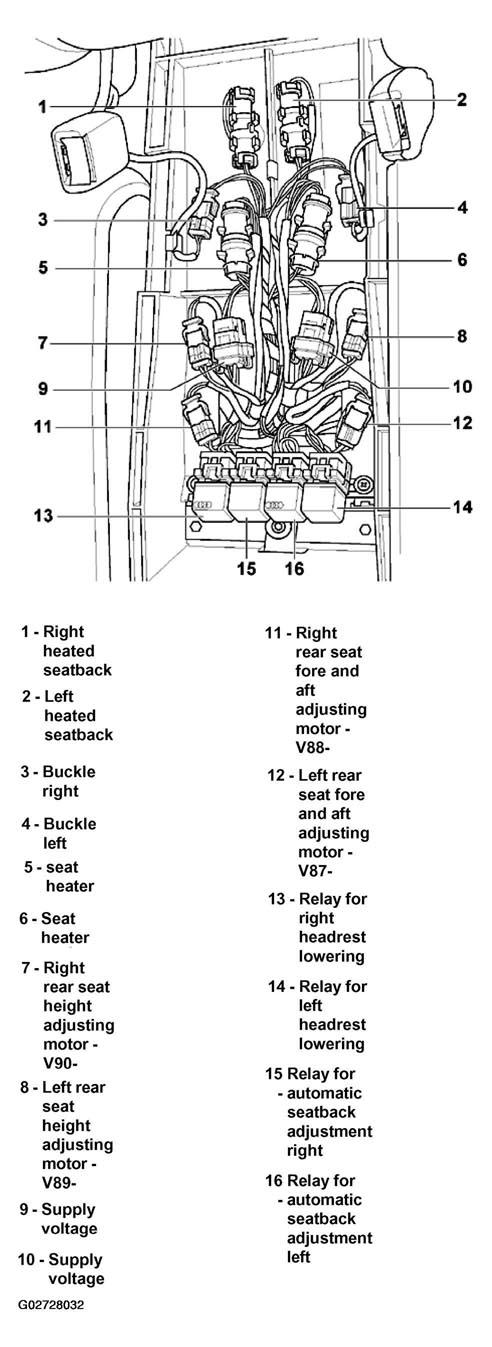

    17. Fig 1: Identifying Electrical Connectors And Relay In Support For Center Cushion Components (Power Adjustable Individual Rear Seat)
    G02728032Courtesy of AUDI OF AMERICA, INC.
