Headrest and guides, removing and installing: All:

NOTE:

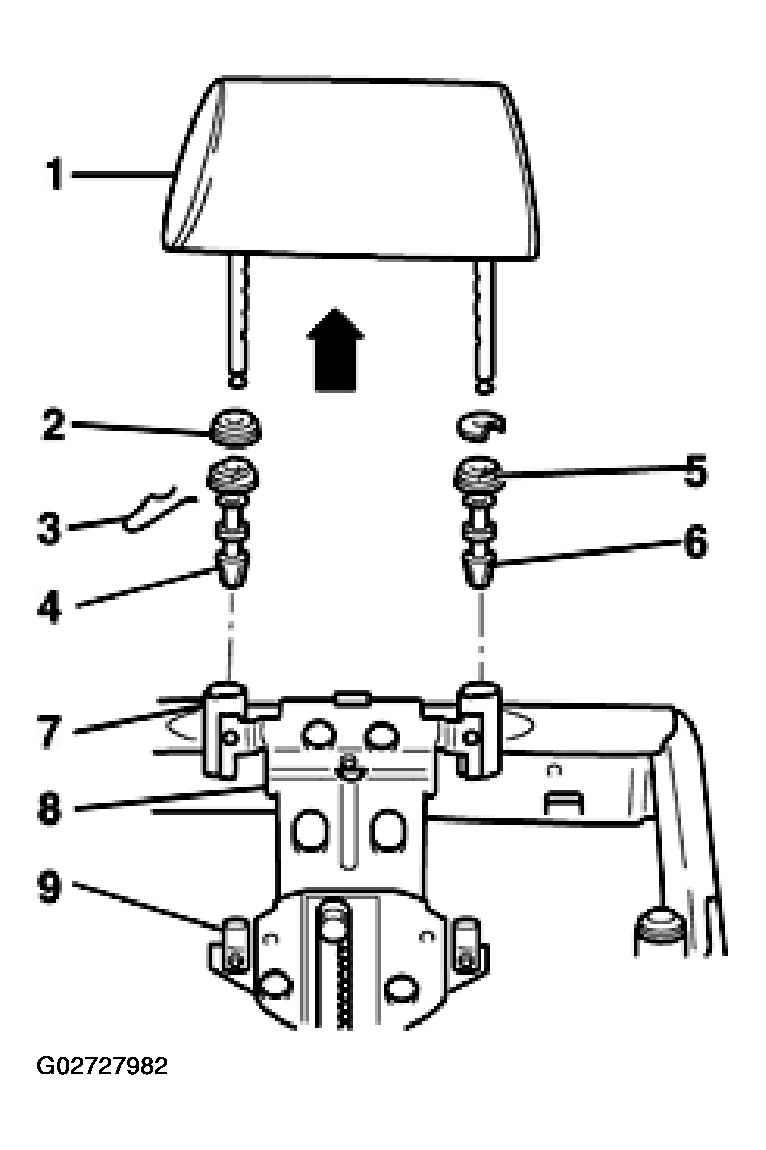

  • Headrest guide -6- with release -5- is installed on the left side of the seatback. See Figure.
  • Headrest guide -4- without release -5- is installed on the right side of the seatback.
  • For manually adjusted headrest release -5- must point to the left.
  • For power adjusted headrest release -5- must point to the right.
  • Spring -3- installed only with manually adjustable headrest.
