Vehicles with side airbag:

For vehicles with coded radio unit/radio-navigation system (RNS) note coding; ask if necessary.
Disconnect battery ground strap/cable and cover negative pole.
CAUTION: On vehicles equipped with Audi Telematics by OnStar®, switch-off the emergency (back-up) battery for the Telematic/Telephone Control Module prior to disconnecting the vehicle battery. See EXAMPLE: SWITCH OFF EMERGENCY (BACK-UP) BATTERY . Switch-on the emergency (back-up) battery after reconnecting the vehicle battery. See EXAMPLE: SWITCH ON EMERGENCY (BACK-UP) BATTERY .

NOTE: Before disconnecting ignition and ground wire installer must discharge himself from electrostatic; to do this, briefly touch striker for door or body.
Disconnect connectors at seat.
Place red airbag connector from seat to appropriate connector on VAS5068 adapter.

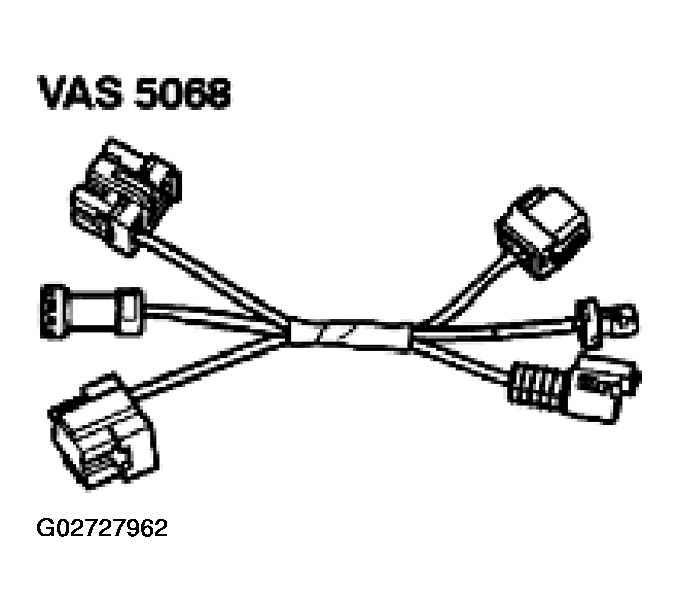

Fig 1: Placing Red Airbag Connector From Seat To Appropriate Connector On VAS5068 Adapter

Courtesy of AUDI OF AMERICA, INC.

Connect any other connector of VAS5068 adapter to another connector on seat frame.
- Airbag wiring is shorted to Ground to prevent deployment caused by static, and the seat can be removed.
