Front seat, removing and installing
>>
Removing
>>
Continued for all vehicles:
Continued for all vehicles:
Remove bolts -1- (55 Nm/41 ft.lb.).
Guide seat belt -2- behind seat cover -3-.
NOTE:
Cover floor pad to protect from damage or dirt.

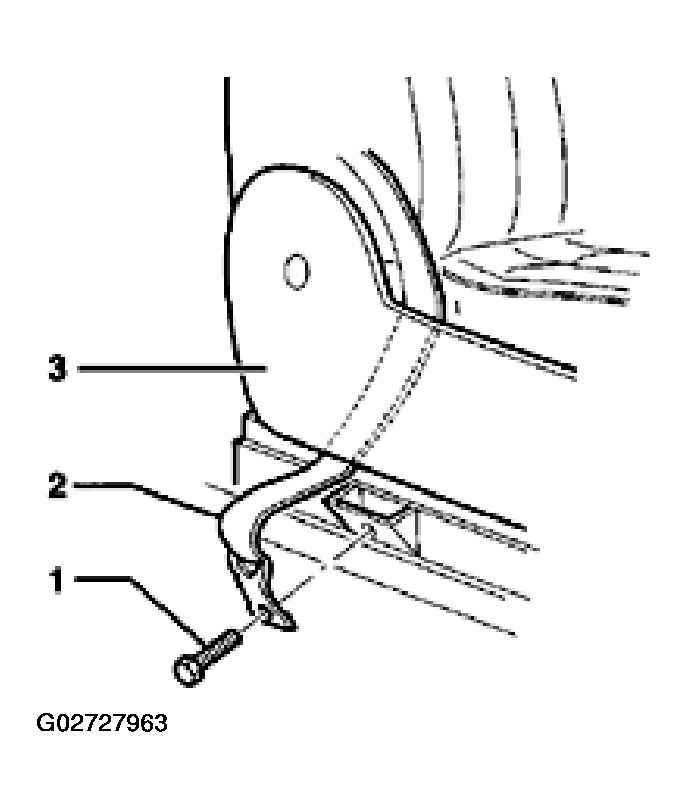

Fig 1: Removing Bolts & Guiding Seat Belt Behind Seat Cover
Courtesy of AUDI OF AMERICA, INC.
Remove seat from vehicle.
